LORDWORLD OCuLink SFF-8611 4i to SFF-8087 36-pin active cable, 50cm

LORDWORLD

LORDWORLD OCuLink SFF-8611 4i to SFF-8087 36Pin Active Cable 50cm

SKU CH-QAMX-MP087

Active cable connects an OCuLink SFF-8611 controller to an SFF-8087 backplane at up to 12 Gbps over 50 cm

  • 12 Gbps data rate for fast PCI-E transfers
  • 50 cm length fits compact builds
  • Active latch on SFF-8611 secures connection
  • SFF-8611 to SFF-8087 links controller to backplane
  • PCI-E only, not compatible with SAS

LORDWORLD OCuLink SFF-8611 4i to SFF-8087 36Pin

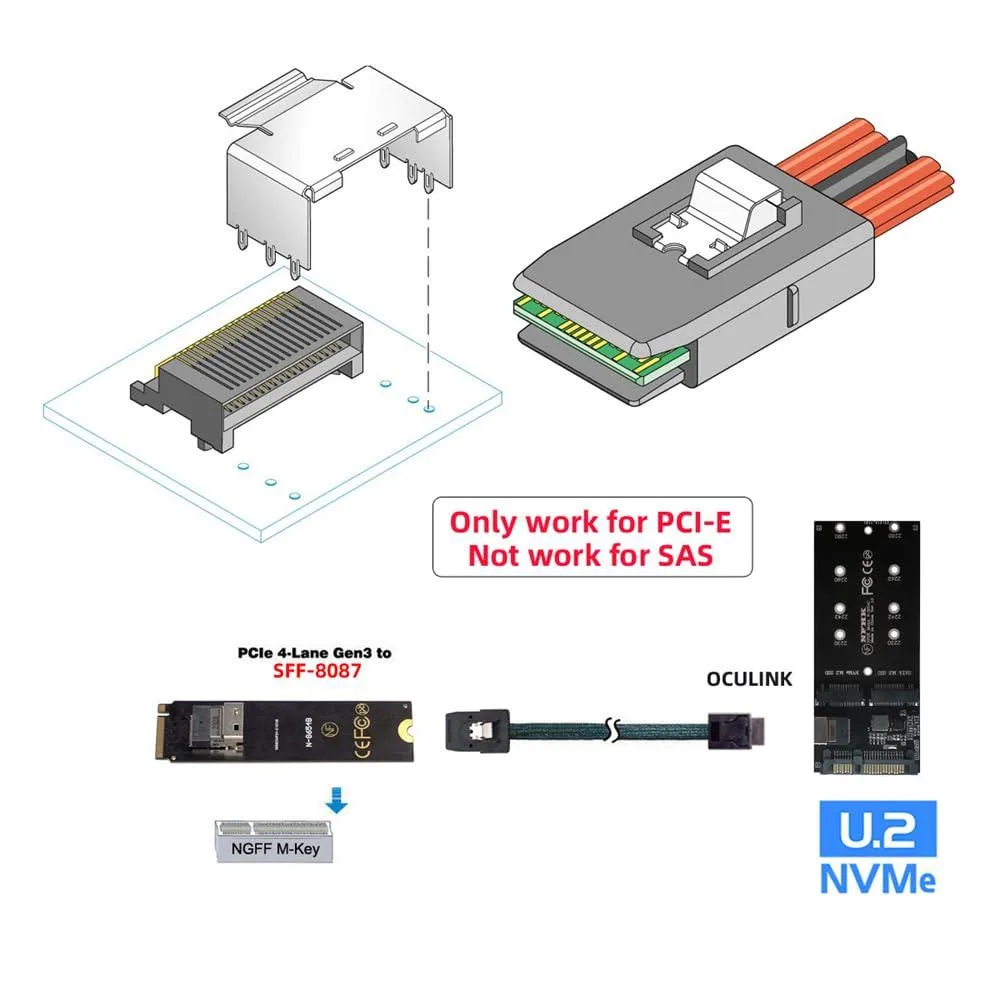

This active cable bridges an OCuLink SFF-8611 4i port on a controller to an SFF-8087 36-pin connector on a backplane. It supports PCIe data transfer rates up to 12Gbps over a 50cm length. The assembly is designed strictly for PCIe signalling and will not function with SAS devices.

Check for a free OCuLink interface

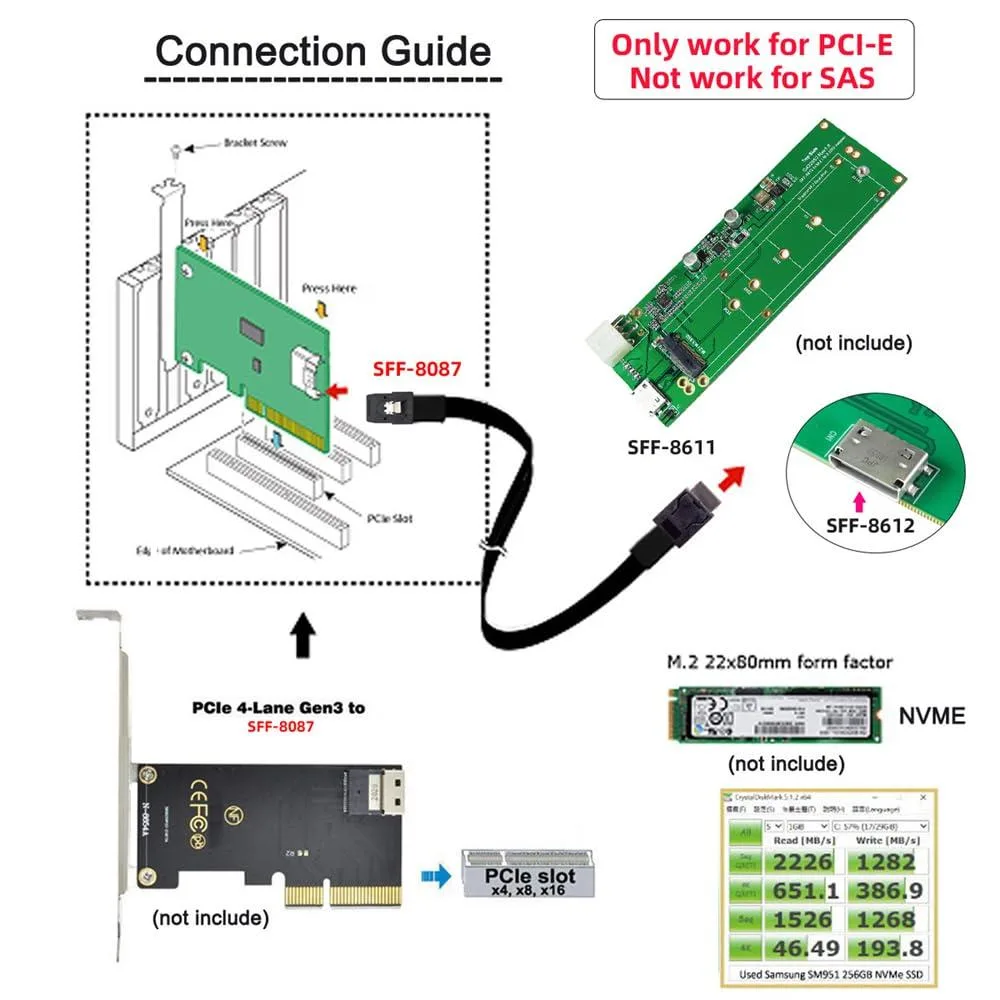

Verify that your controller presents an available OCuLink SFF-8611 receptacle and that the target backplane uses an SFF-8087 36-pin PCIe connector. The cable ends are male on both sides, so each mating port must be female. This product does not support SAS connections or any other protocol.

Active circuitry maintains the 12Gbps link under

The built-in active electronics preserve signal integrity across the full 50cm run during continuous PCIe traffic. An active latch on the SFF-8611 end secures the connection against vibration or cable movement. The cable is intended for internal device linking such as backplane-to-controller deployments.

Highlights

  • 12 Gbps data rate for fast PCI-E transfers
  • 50 cm length fits compact builds
  • Active latch on SFF-8611 secures connection
  • SFF-8611 to SFF-8087 links controller to backplane
  • PCI-E only, not compatible with SAS

Specifications

BrandLORDWORLD

Questions about this item

Does the box include anything besides the 50cm OCuLink SFF-8611 4i to SFF-8087 36Pin active cable itself?

Only the cable is supplied; no brackets, screws or adapters are included.

When would I choose this 50cm active version over a different length or a passive cable?

Pick the 50cm active cable when the host has an OCuLink SFF-8611 port and the backplane uses SFF-8087, and the run exceeds passive-cable limits.

What does the 12Gbps rating mean once the cable is installed in a real machine?

It sets the maximum per-lane PCIe throughput; actual speed depends on the controller, backplane and drives connected.
