Green circuit board with angled gold M-key connector and horizontal 2280 M.2 slot

LORDWORLD

LORDWORLD NVME 2230 to 2280 Angled Extension Adapter for MSI CLAW8 CLAW7

SKU CH-R2PP-1ZHXK

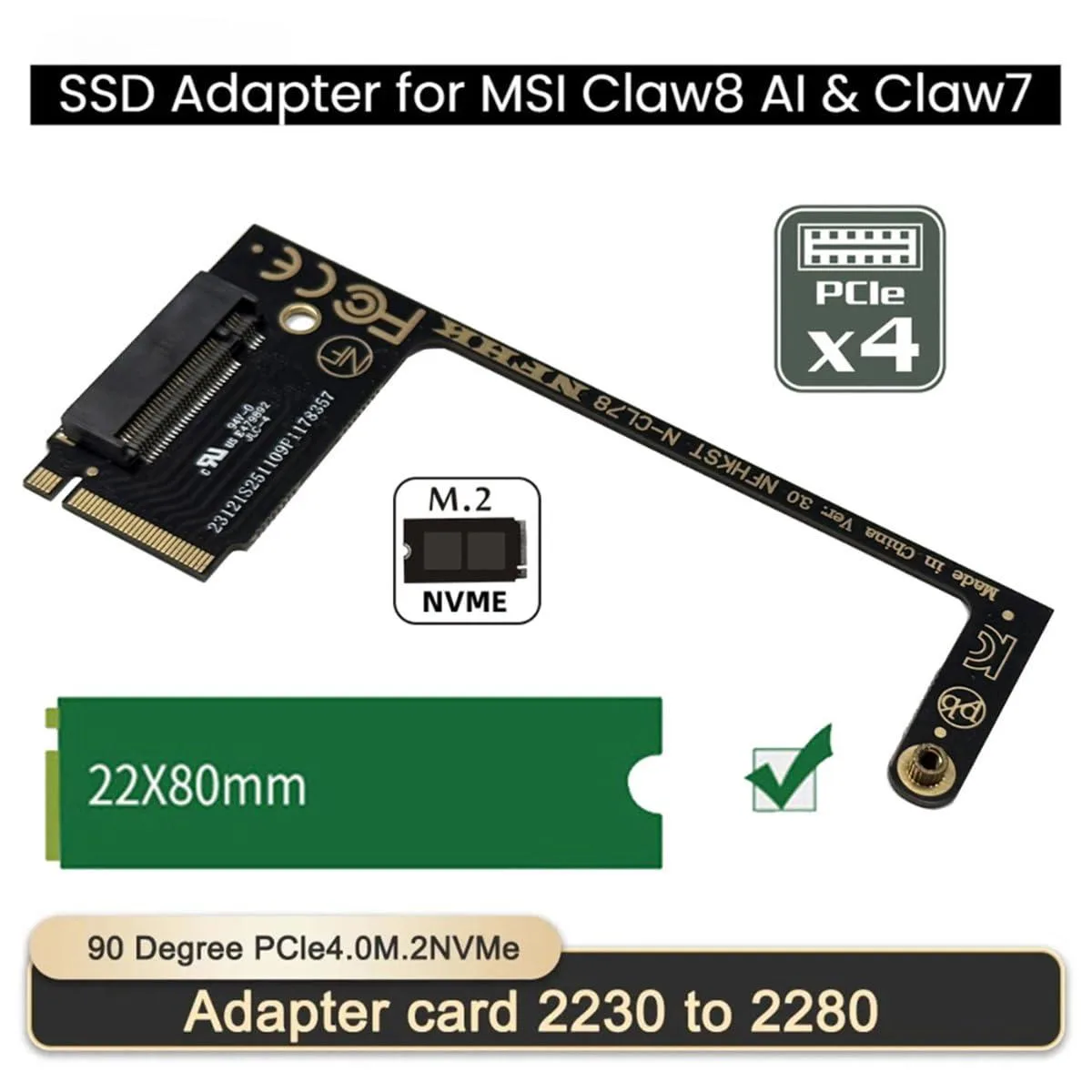

Angled adapter extends a 2230 slot to fit a 2280 NVME SSD in MSI CLAW8 or CLAW7, supporting PCIe 4.0 x4 and NVME 1.4 at 64Gbps

  • Enables 2280 NVME SSD upgrade in CLAW handhelds
  • PCI-Express 4.0 x4 supports NVME 1.4 at 64Gbps
  • Angled M-key plug fits tight internal spaces
  • Installation completes in about 20 minutes
  • Supports up to 8TB NVME storage capacity

Handheld Storage Expansion

The LORDWORLD adapter lets MSI CLAW8 and CLAW7 owners move from the factory 2230 NVME module to a full-length 2280 NVME drive. It plugs into the existing M-key slot and routes the longer SSD at an angle so it fits inside the tight chassis. No SATA conversion is supported in either direction.

2230 to 2280 Upgrade Path

The board replaces the original 2230 stick and accepts any M-key 2280 NVME SSD up to 8 TB capacity. PCI-Express 4.0 x4 signalling and NVME 1.4 protocol deliver up to 64 Gbps throughput. The swap is worthwhile when the internal library outgrows the stock drive and a larger 2280 module is available.

Angled M-Key Fit

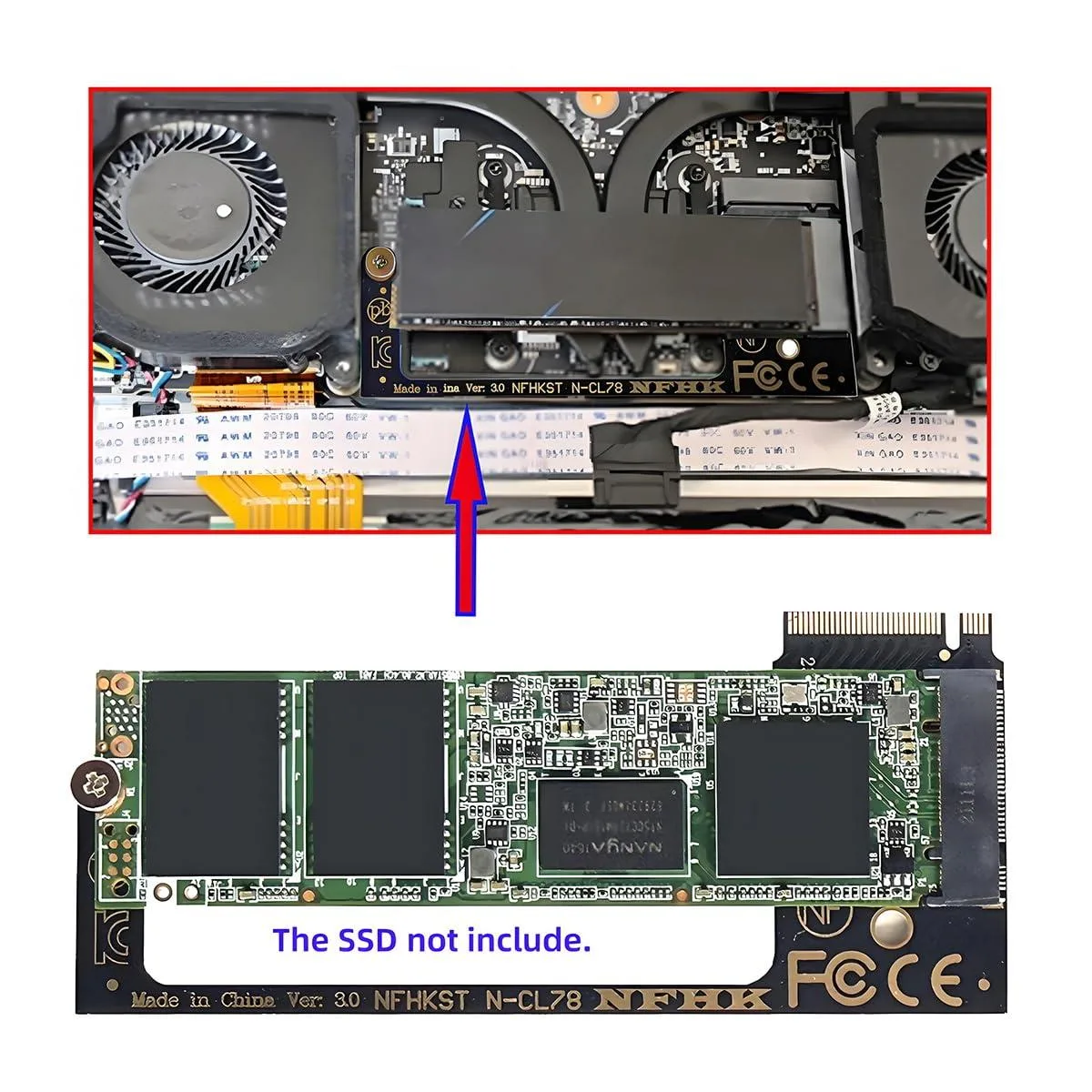

The angled connector clears nearby components so the 2280 drive seats without forcing the case. Installation takes roughly 20 minutes: clone the system to the new SSD, mount it on the adapter, then replace the original module. The adapter itself needs no extra power or drivers beyond what the handheld already provides.

Highlights

  • Enables 2280 NVME SSD upgrade in CLAW handhelds
  • PCI-Express 4.0 x4 supports NVME 1.4 at 64Gbps
  • Angled M-key plug fits tight internal spaces
  • Installation completes in about 20 minutes
  • Supports up to 8TB NVME storage capacity

Specifications

BrandLORDWORLD

Questions about this item

Will the angled M-key plug on this adapter clear the tight space around the MSI CLAW 2230 slot?

Yes, the angled M-key plug is designed to connect to the female port even when surrounding clearance is limited inside the CLAW8 or CLAW7.

What is the correct installation sequence for this 2230 to 2280 extension adapter?

Install the new 2280 SSD onto the adapter board, clone the system onto that drive, then swap the original 2230 SSD for the assembled unit.

Does the adapter support drives larger than 8TB or require any future firmware updates?

The adapter is validated for up to 8TB of NVMe storage and has no firmware of its own, so no updates are needed.
