Orange NEMA L7-30P locking male plug with three angled blades and screw terminals

LORDWORLD

LORDWORLD NEMA L7-30P Locking Plug 30A 277V Orange

SKU CH-M75N-6CC36

ETL-listed NEMA L7-30P locking male plug rated 30 A 277 V for 10–12 AWG cords

  • ETL listed safety certification meets UL 498 and CSA C22.2#42 standards
  • Locking NEMA L7-30P design prevents accidental disconnection from 30A 277V receptacles
  • Supports 10 AWG cord at 30A and 12 or 11 AWG at 25A
  • Clearly marked X, Y, Z, G, W terminals simplify correct wiring
  • Heavy-duty industrial construction with robust conducting materials for generator use

Industrial twist-lock plug for generator feeds

The LORDWORLD NEMA L7-30P is a 30 amp 277 volt male connector built for industrial generator hook-ups. Its orange housing and locking blade design suit installers who need a secure, rewireable cord end for heavy-duty AC circuits.

Verify cord gauge and mating receptacle before

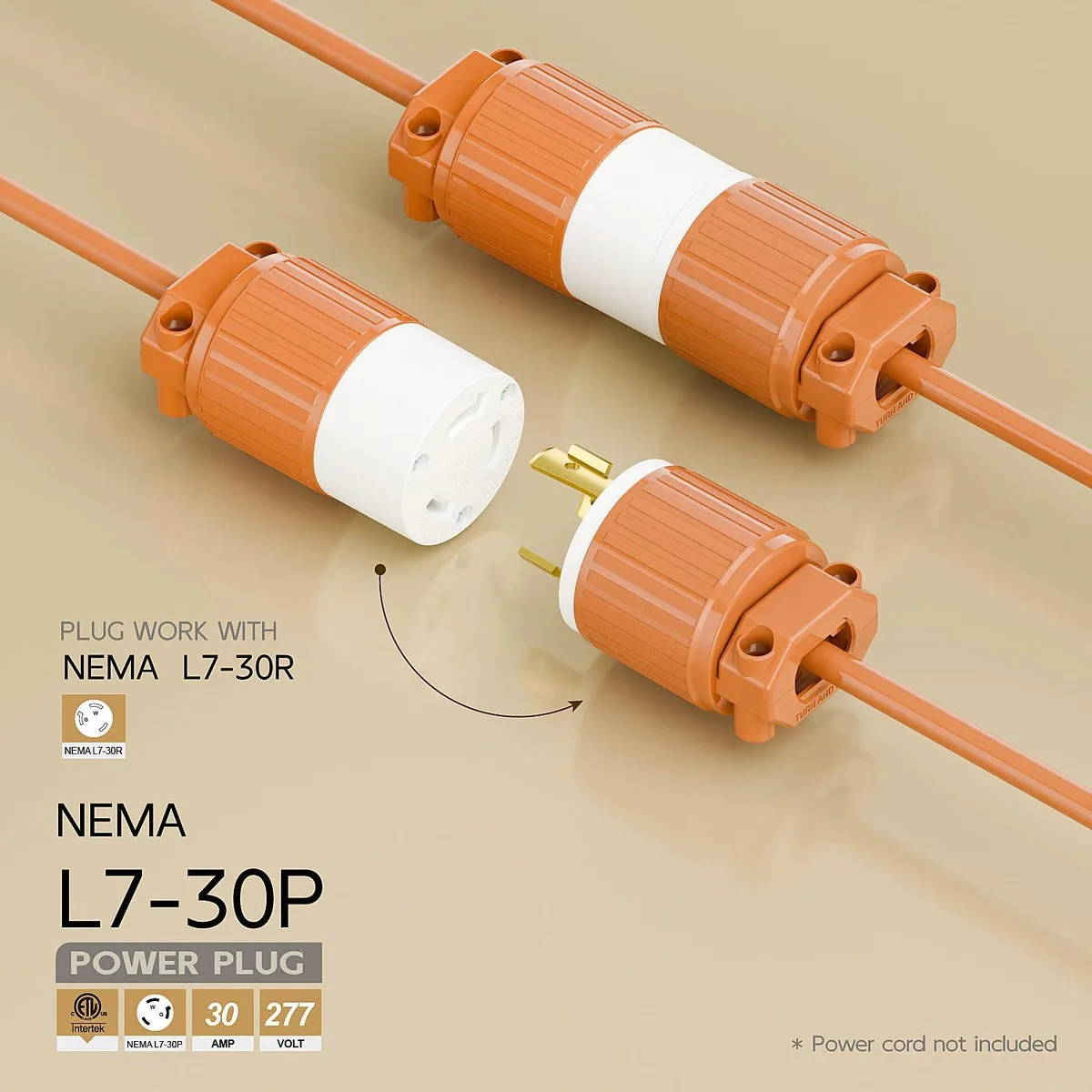

Confirm the supply cord is 10 to 12 AWG three-conductor cable such as SJT, ST, or SJO types listed in the spec. The plug mates only with a NEMA L7-30R locking receptacle; the rotated T-shaped blade prevents insertion into other 30 amp 277 volt sockets.

ETL-listed construction

The plug carries ETL certification to UL 498 and CSA C22.2 No. 42. Terminals are stamped X, Y, Z for lines, W for grounded, and G for grounding. Heavy-duty conducting materials and a turn-and-pull locking action give a firm connection that resists vibration in daily generator use.

Highlights

  • ETL listed safety certification meets UL 498 and CSA C22.2#42 standards
  • Locking NEMA L7-30P design prevents accidental disconnection from 30A 277V receptacles
  • Supports 10 AWG cord at 30A and 12 or 11 AWG at 25A
  • Clearly marked X, Y, Z, G, W terminals simplify correct wiring
  • Heavy-duty industrial construction with robust conducting materials for generator use

Specifications

BrandLORDWORLD

Questions about this item

Does the plug come with a cable attached or must I supply my own 10-12 AWG cord?

The connector is sold as a rewireable male plug only; you must provide a compatible 10-12 AWG three-conductor cord such as SJT, ST or SJO types listed in the specifications.

Should I choose the 30 A or 25 A rating for my installation?

Use the 30 A 277 V rating with 10 AWG cord; if you are limited to 11 or 12 AWG cord the rating drops to 25 A at the same voltage.

What does the 30 A 277 V figure mean when the plug is wired into a generator circuit?

It indicates the maximum continuous current the plug can carry at 277 V when terminated with 10 AWG conductors, matching the NEMA L7-30P locking configuration for industrial generator connections.
