Black and white industrial locking plug with T-shaped blades and twist-lock collar

LORDWORLD

LORDWORLD NEMA L7-20P 20A 277V Locking Plug ETL

SKU CH-KG6Z-57EJS

An ETL-listed NEMA L7-20P locking plug rated 20 A, 277 V for industrial generator connections

  • ETL listed safety certification meets UL 498 and CSA C22.2#42 standards
  • NEMA L7-20P locking plug prevents accidental disconnection in 277V applications
  • 20A 277V rating delivers 5540W power for industrial generators and equipment
  • Rewireable design accepts 10-18AWG cords with clear X, Y, Z, G, W terminal markings
  • Heavy-duty construction with T-shaped blade ensures secure twist-lock connection to L7-20R sockets

NEMA L7-20P Locking Plug

This ETL-listed male connector provides a twist-lock NEMA L7-20P interface rated for 20 amps at 277 volts AC. It is intended for industrial generators, DIY rewireable cords and equipment requiring a secure locking connection. The rotated T-shaped blade prevents accidental insertion into non-matching receptacles. The product is new and supplied in black and white.

Sustained-load current handling

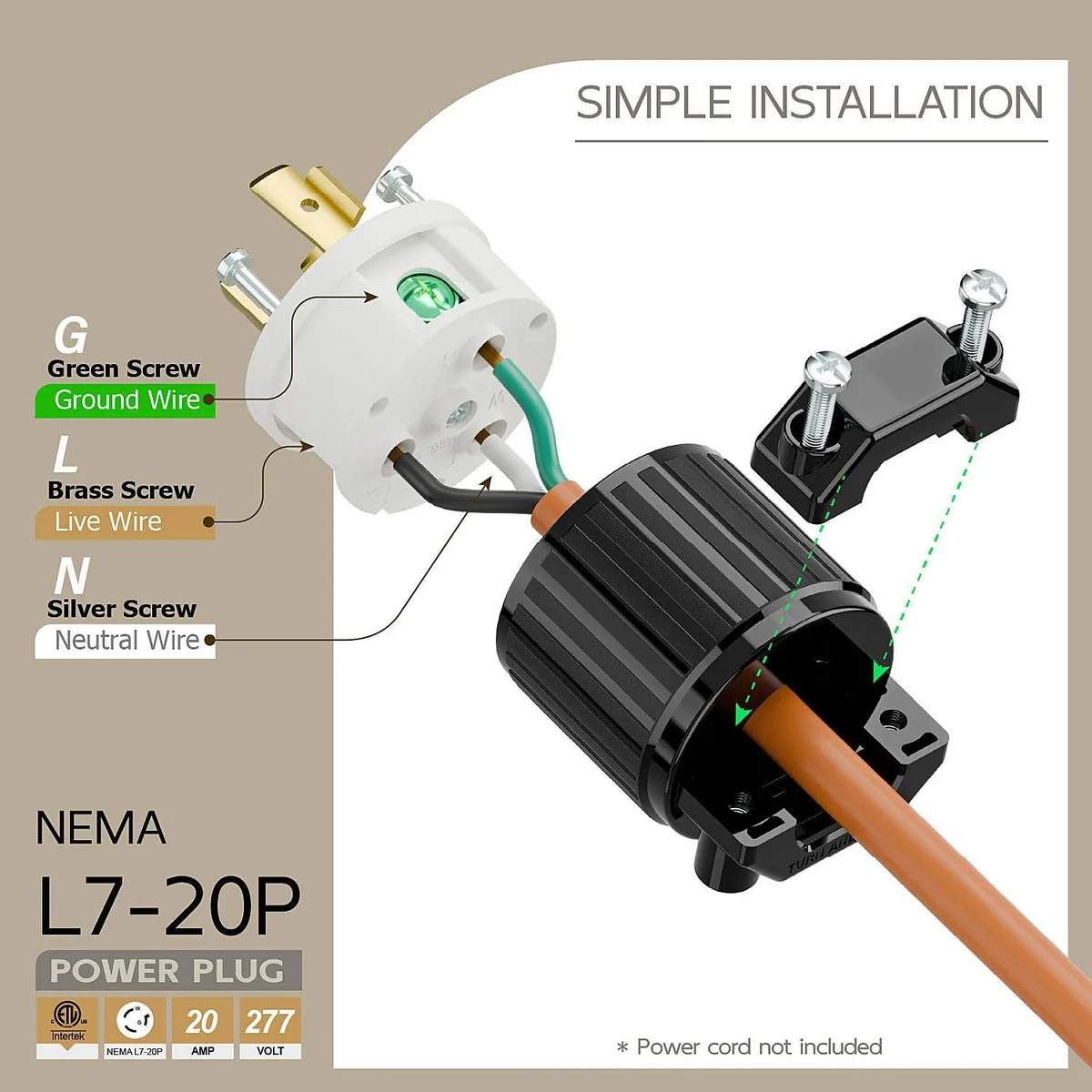

The plug supports 20 amps at 277 volts with 12 or 10 AWG cord, delivering 5540 watts. With 14 or 13 AWG cord the rating drops to 18 amps, with 16 or 15 AWG to 13 amps, and with 17 or 18 AWG to 10 amps. It accepts a wide range of 3-conductor cord types including SJT, SJTW, ST, STW, SJO and SJOOW variants. Terminals are marked X, Y, Z for line conductors, W for grounded and G for grounding.

Thermal and safety compliance

The connector complies with UL 498:2017 Ed.16+R:20Jun2024 and CSA C22.2#42:2010 Ed.7+U1 through U5. Heavy-duty conducting materials and a robust housing maintain stable contact resistance under continuous rated load. The twist-lock mechanism ensures the plug remains fully seated, reducing the risk of overheating from loose connections in vibration-prone environments.

Highlights

  • ETL listed safety certification meets UL 498 and CSA C22.2#42 standards
  • NEMA L7-20P locking plug prevents accidental disconnection in 277V applications
  • 20A 277V rating delivers 5540W power for industrial generators and equipment
  • Rewireable design accepts 10-18AWG cords with clear X, Y, Z, G, W terminal markings
  • Heavy-duty construction with T-shaped blade ensures secure twist-lock connection to L7-20R sockets

Specifications

BrandLORDWORLD

Questions about this item

Does the NEMA L7-20P plug run hot when drawing 20 A continuously at 277 V?

The plug is rated for 20 A at 277 V (5540 W) with heavy-duty conducting materials and ETL certification to UL 498 and CSA C22.2 No. 42, so it handles full-load operation without overheating.

What wire gauges and cable types must I already have to wire this L7-20P connector?

It accepts 18–10 AWG three-conductor cords such as SJT, SJTW, ST, STW, SJO, SJOW and similar types; terminal markings X, Y, Z, W, G guide the connections.

Will this L7-20P plug mate with the older L7-20R receptacles already on my generator panel?

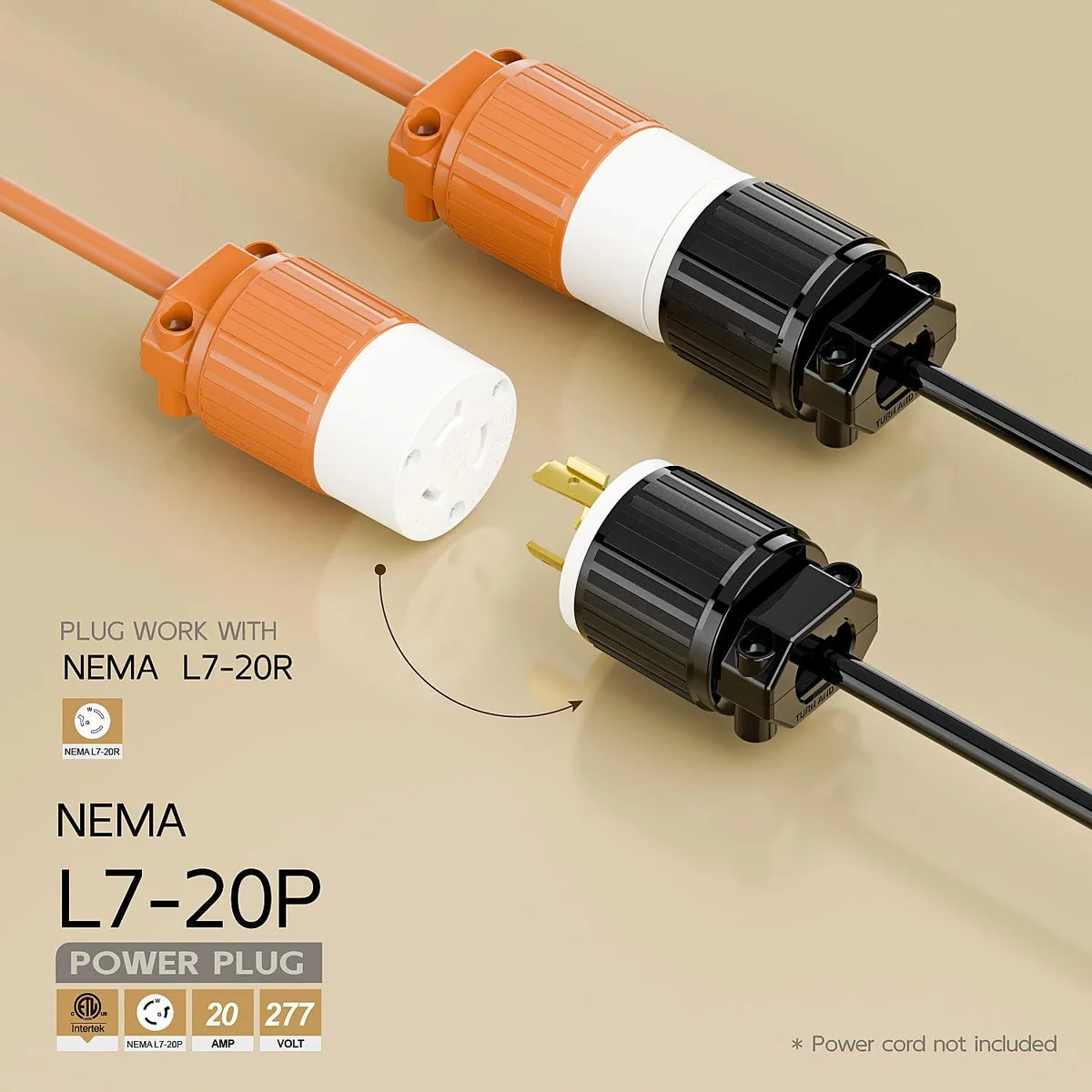

Yes — the rotated T-shaped blade is keyed for NEMA L7-20R 20 A 277 V locking sockets, preventing accidental cross-connection while ensuring a secure twist-lock fit.
