Yellow industrial locking power connector with nylon housing and brass terminals

LORDWORLD

LORDWORLD Nema L6-30R 30A 250V Locking Connector Yellow

SKU CH-YFRJ-2JY9D

ETL-certified 30 A 250 V locking connector with twist-lock design accepts cables from AWG 18 to AWG 10

  • ETL certified for USA and Canada safety compliance
  • 30 A 250 V rating powers heavy-duty equipment
  • Twist-lock screw design secures connection against vibration
  • Nylon housing rated 94V-0 resists high heat
  • Accepts AWG 10 to 18 cords for flexible wiring

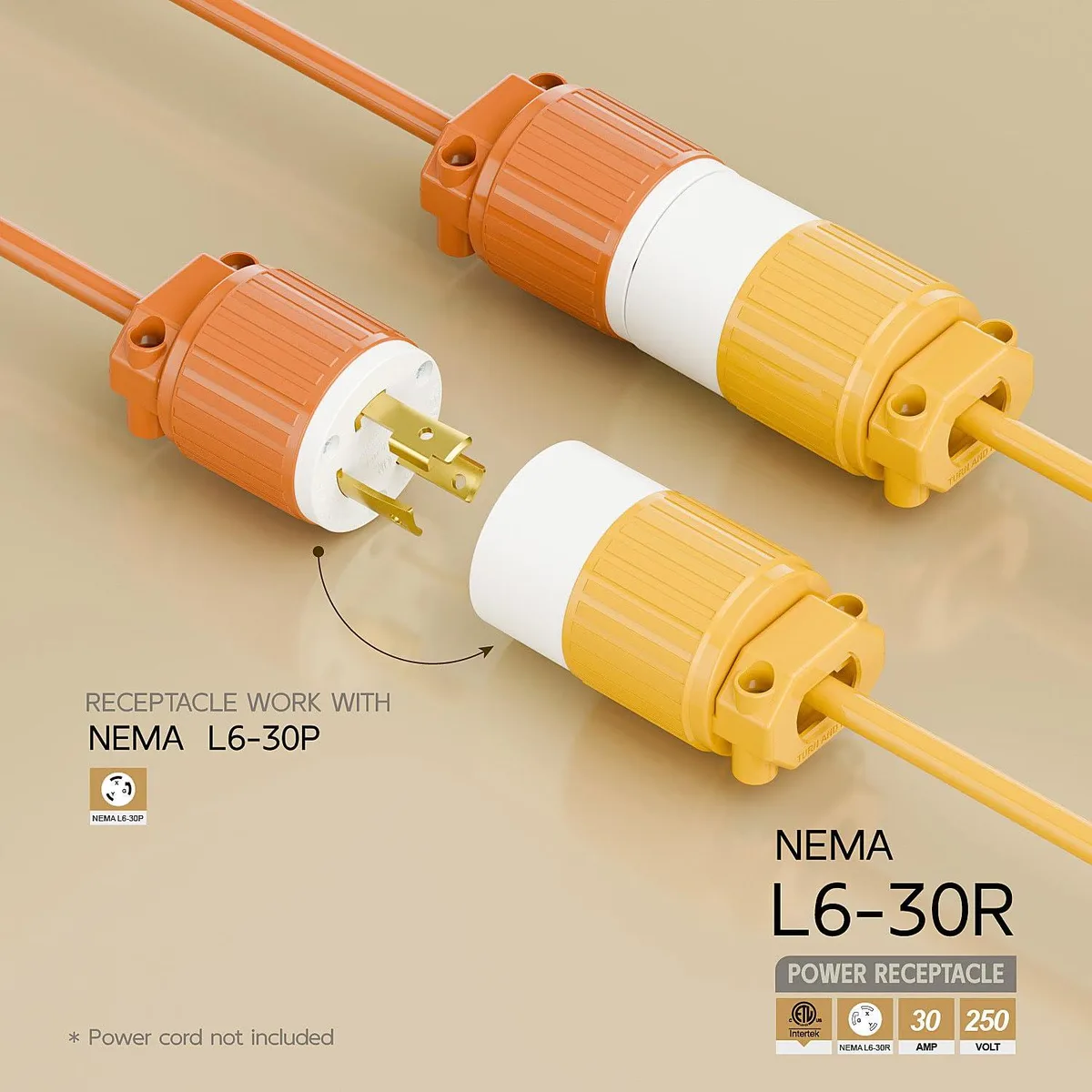

LORDWORLD Nema L6-30R Connector

This locking connector provides a 30 amp, 250 volt AC connection for industrial or heavy-duty equipment. It is built for installers and DIY users who need a secure, rewireable receptacle rated for 60 Hz operation.

Nylon housing with brass terminals

The solid nylon body carries a 94V-0 flame rating and houses copper brass blades for low resistance and heat. A twist-lock screw design prevents accidental disconnection, while the strain relief accepts cables from AWG 10 through 18.

Replaces worn or non-locking plugs

This unit upgrades standard straight-blade connectors where vibration or movement could loosen the connection. It is not suited for applications requiring a different amperage, voltage, or pin configuration.

Highlights

  • ETL certified for USA and Canada safety compliance
  • 30 A 250 V rating powers heavy-duty equipment
  • Twist-lock screw design secures connection against vibration
  • Nylon housing rated 94V-0 resists high heat
  • Accepts AWG 10 to 18 cords for flexible wiring

Specifications

BrandLORDWORLD

Questions about this item

What does the NEMA L6-30R rating of 30 A at 250 V mean for the maximum load I can connect?

The connector is rated for a continuous 30 A at 250 V AC 60 Hz, so the practical limit is 7.5 kW on a properly protected circuit.

What cable sizes can the strain-relief clamp on this L6-30R connector accept?

The strain relief is designed for cables from AWG 18 up to AWG 10, covering SJT 18/16/14 and 10-gauge conductors.

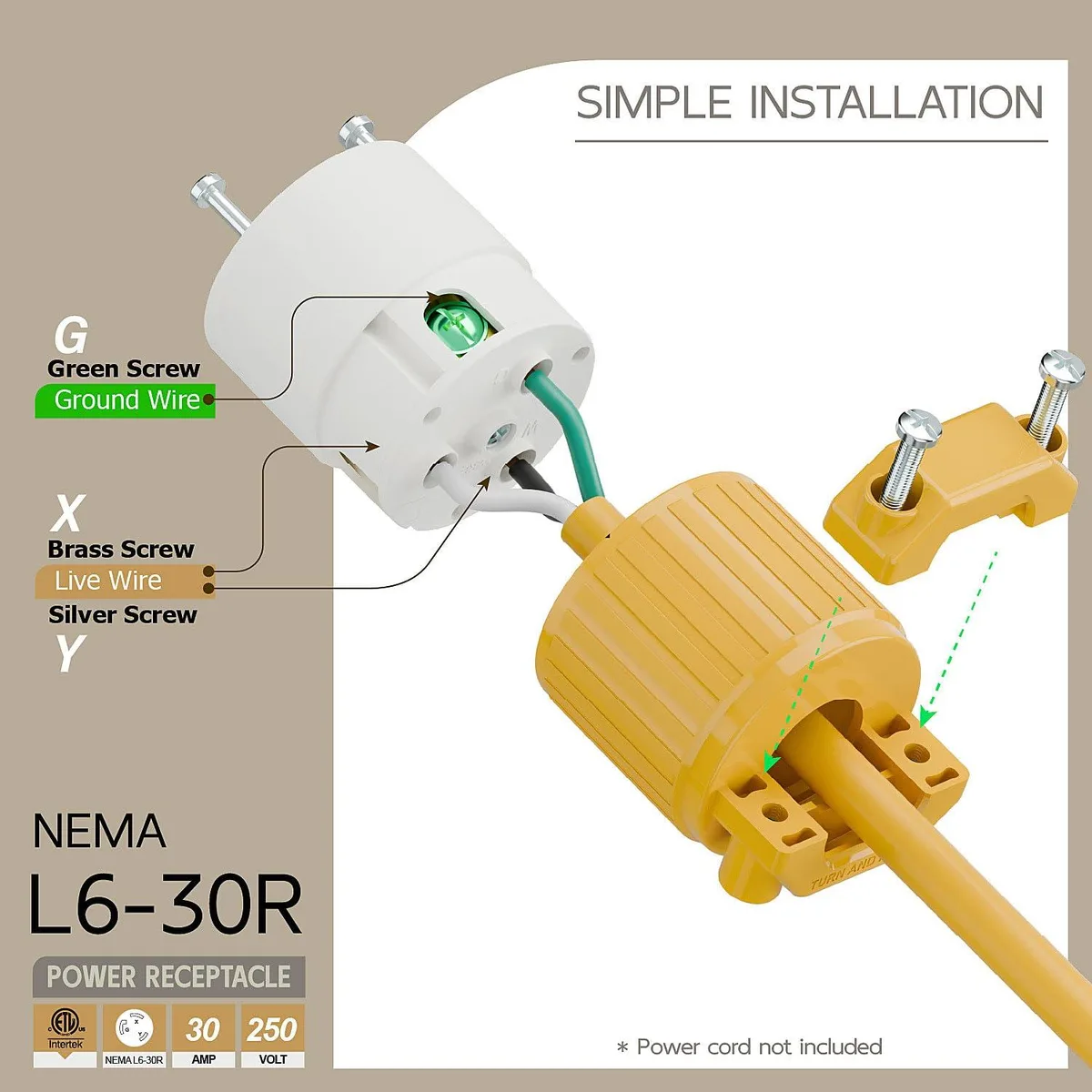

How do I wire the three brass terminals correctly, and what is the common mistake?

Connect hot conductors to the two angled blades and the ground wire to the U-shaped terminal; the frequent error is swapping a hot leg onto the ground terminal.
