Two black industrial twist-lock female connectors with brass terminals and nylon housings

LORDWORLD

LORDWORLD Nema L6-30R 30A 250V Locking Connector 2-Pack

SKU CH-HHF4-GC325

Two ETL-certified 30 A 250 V NEMA L6-30R locking receptacles accept AWG 10–18 cord and feature nylon 94V-0 housings with brass terminals

  • ETL certified for USA and Canada safety compliance
  • Twist-lock screw design ensures secure industrial connections
  • Nylon housing with brass blades resists heat under 30A load
  • V-0 flame rated material meets 94V-0 vertical burn standard
  • Accepts AWG 10 through 18 cords for versatile DIY wiring

Two-pack L6-30R locking connector

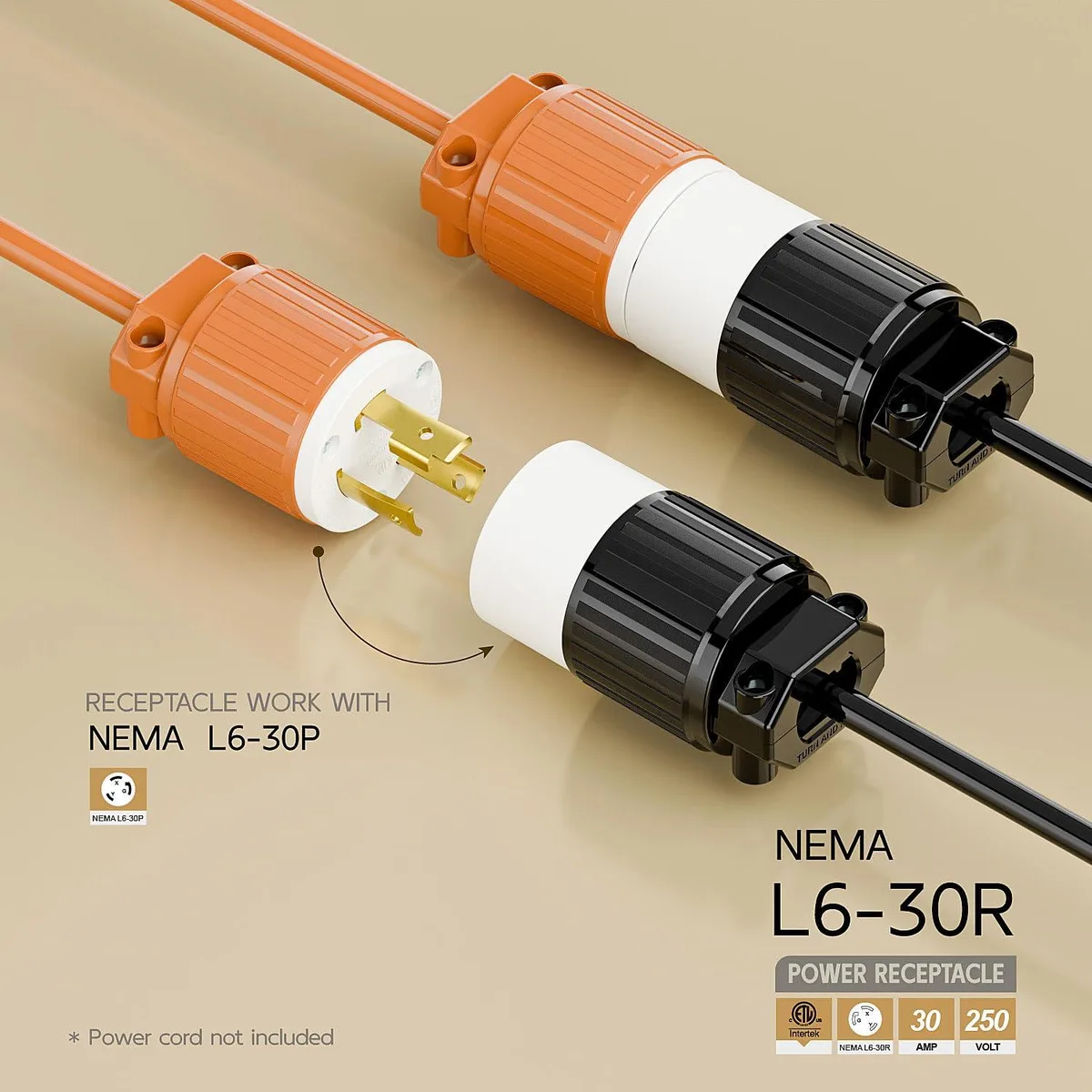

This two-pack supplies two NEMA L6-30R female receptacles rated for 30 amps at 250 volts AC. They suit DIY builders wiring industrial equipment, generators or high-draw appliances that require a twist-lock connection. Each unit is ETL certified for the USA and Canada and uses a 2-pole, 3-wire grounding layout.

Cable range and thermal limits

The strain relief accepts cables from AWG 14 up to AWG 10, and also works with SJT 18, 16 and 14 cord types. The nylon housing carries a 94V-0 vertical flame rating, while copper-brass blades keep resistance low and limit heat even under heavy load. Operation is specified for 60 Hz AC supply only.

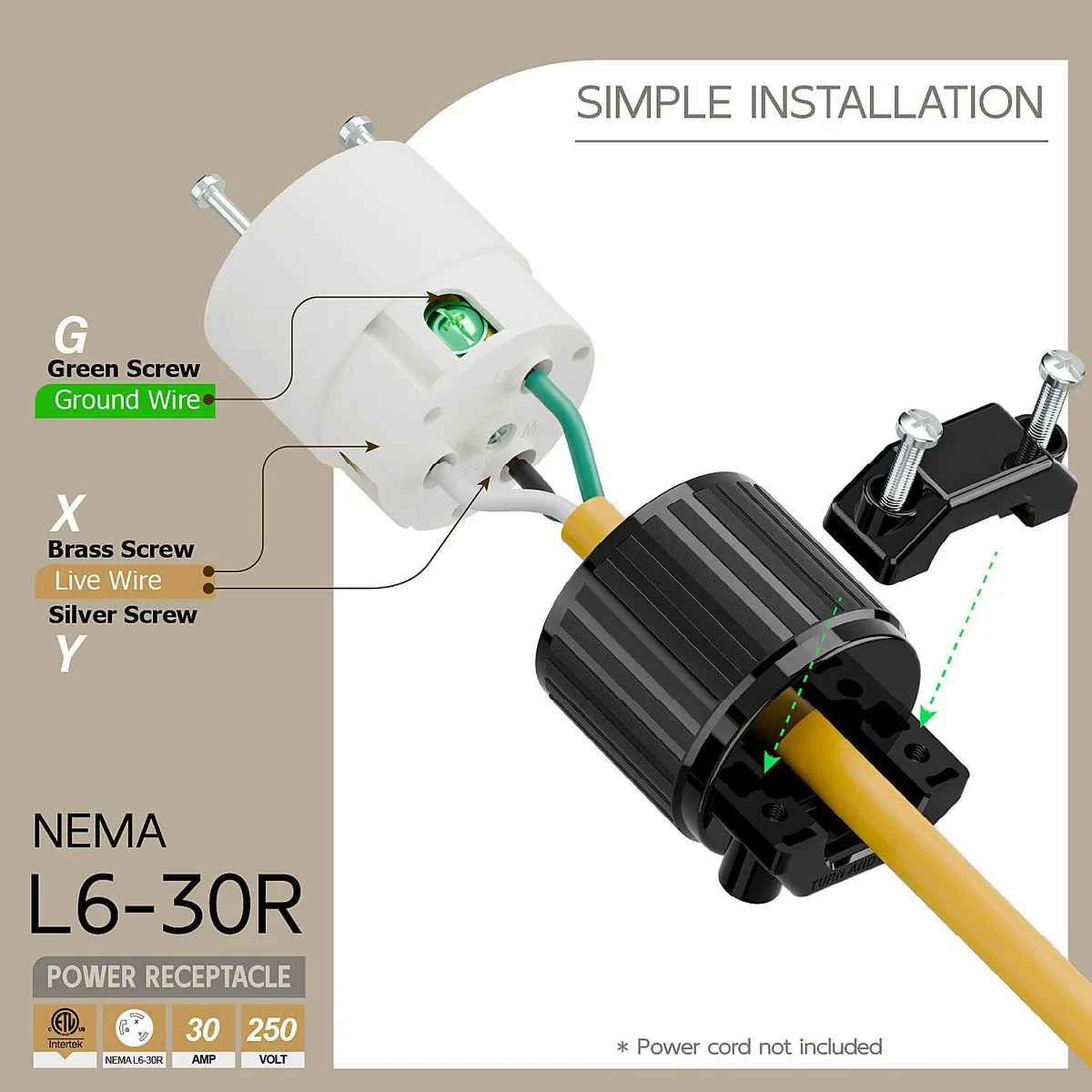

Screw-terminal wiring and common pitfalls

Screw-lock terminals make field assembly straightforward for competent DIYers; strip the conductors, seat them under the brass screws and tighten. The most frequent issues are loose terminal screws causing overheating, mismatched wire gauges outside the AWG 10-14 range, and forgetting the grounding conductor in the 3-wire scheme.

Highlights

  • ETL certified for USA and Canada safety compliance
  • Twist-lock screw design ensures secure industrial connections
  • Nylon housing with brass blades resists heat under 30A load
  • V-0 flame rated material meets 94V-0 vertical burn standard
  • Accepts AWG 10 through 18 cords for versatile DIY wiring

Specifications

BrandLORDWORLD

Questions about this item

Should I pick the single or the 2-pack version?

The listing is a 2-pack, so you receive two NEMA L6-30R locking receptacles in one order.

What does the 30 A 250 V rating mean when the connector is wired into my equipment?

It supports continuous loads up to 30 amps at 250 volts AC, 60 Hz, with brass terminals and a 94V-0 nylon body that resists heat under heavy draw.

Which NEMA standard does this connector follow and what cable gauges can it accept?

It follows the NEMA L6-30R twist-lock standard, 2-pole 3-wire grounding, and the strain relief fits cords from AWG 18 up to AWG 10.
