Yellow twist-lock NEMA L5-30R connector with nylon housing and brass terminals

LORDWORLD

LORDWORLD NEMA L5-30R 30A 125V Locking Connector Yellow

SKU CH-3JJ6-CV6G3

ETL-certified 30 A 125 V locking receptacle with nylon housing, brass terminals and strain relief for AWG 10-18 cords

  • ETL certified for USA and Canada safety compliance
  • Solid nylon housing with copper brass blades for low resistance
  • 2-pole 3-wire grounding with 94V-0 flame rating

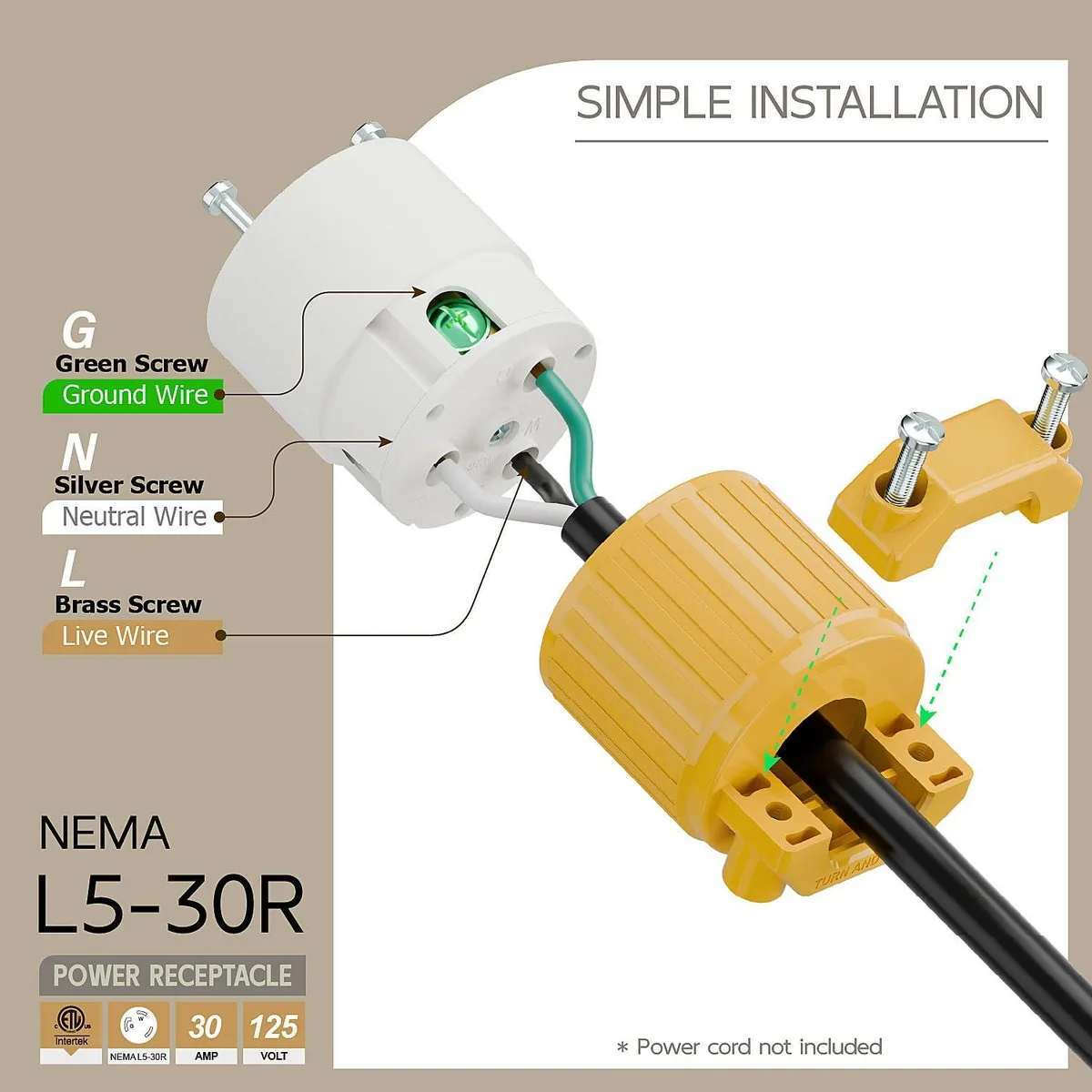

  • Twist-lock screw design ensures secure cord connection
  • Accepts AWG 10 to 18 power cords for versatile DIY use

Locking Connector for 30 A Circuits

This NEMA L5-30R receptacle accepts a 30 A 125 V supply and locks the cord in place with a twist action. It is built for DIY wiring on generators, temporary power panels or industrial equipment where a secure connection is required.

Cable Range and Temperature Limit

The strain relief accepts cords from 18 AWG up to 10 AWG, so only conductors within that range can be terminated reliably. The nylon housing carries a 94 V-0 vertical flame rating, which defines the maximum temperature environment the connector can withstand.

30 A 125 V Rating Decides Fit

The single figure that determines suitability is the 30 A 125 V rating; circuits drawing more current or operating at a different voltage need a different NEMA configuration. Buyers who need a higher amperage or a different voltage cannot use this part.

Highlights

  • ETL certified for USA and Canada safety compliance
  • Solid nylon housing with copper brass blades for low resistance
  • 2-pole 3-wire grounding with 94V-0 flame rating
  • Twist-lock screw design ensures secure cord connection
  • Accepts AWG 10 to 18 power cords for versatile DIY use

Specifications

BrandLORDWORLD

Questions about this item

Which LORDWORLD NEMA L5-30R connector should I choose for my cable gauge?

This single model accepts SJT STW cables from 18 AWG up to 10 AWG, so one part covers the full range.

What does the 30 A 125 V rating mean when I wire it into my equipment?

It delivers up to 30 amps at 125 volts AC 60 Hz through a 2-pole 3-wire grounding twist-lock receptacle.

How does the NEMA L5-30R twist-lock interface limit what I can plug in?

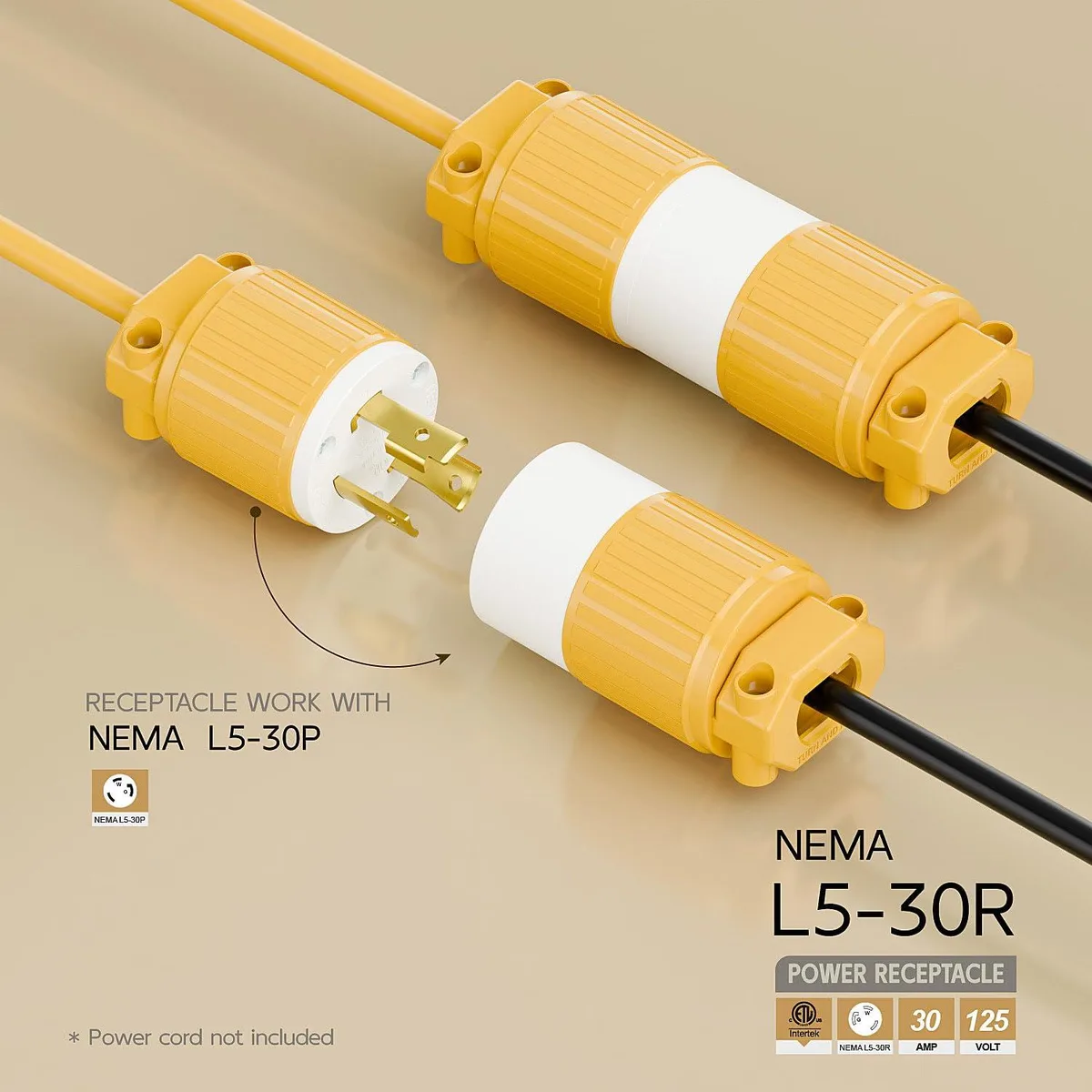

The locking 30 A 125 V female receptacle only mates with matching NEMA L5-30P plugs, preventing accidental disconnection.
