Orange NEMA L5-30R twist-lock female connector with nylon housing and brass terminals

LORDWORLD

LORDWORLD Nema L5-30R 30A 125V Locking Connector Orange

SKU CH-CNE7-2S5SD

A 30 A 125 V twist-lock female connector accepting AWG 10 to 18 cord with ETL certification

  • ETL certified for USA and Canada safety standards
  • Nylon housing with brass blades for low resistance and heat
  • 2-pole 3-wire grounding with 94V-0 flame rating
  • Twist-lock screw design for secure DIY installation
  • Compatible with AWG 10 to 18 power cords

L5-30R 30A 125V locking connector

This ETL-certified NEMA L5-30R female receptacle delivers 30 amps at 125 volts AC, 60 Hz. It features a 2-pole, 3-wire grounding design with a twist-lock mechanism that prevents accidental disconnection. The nylon housing meets UL 94V-0 flame rating and accepts cable sizes from AWG 10 through 18.

DIY and industrial power projects

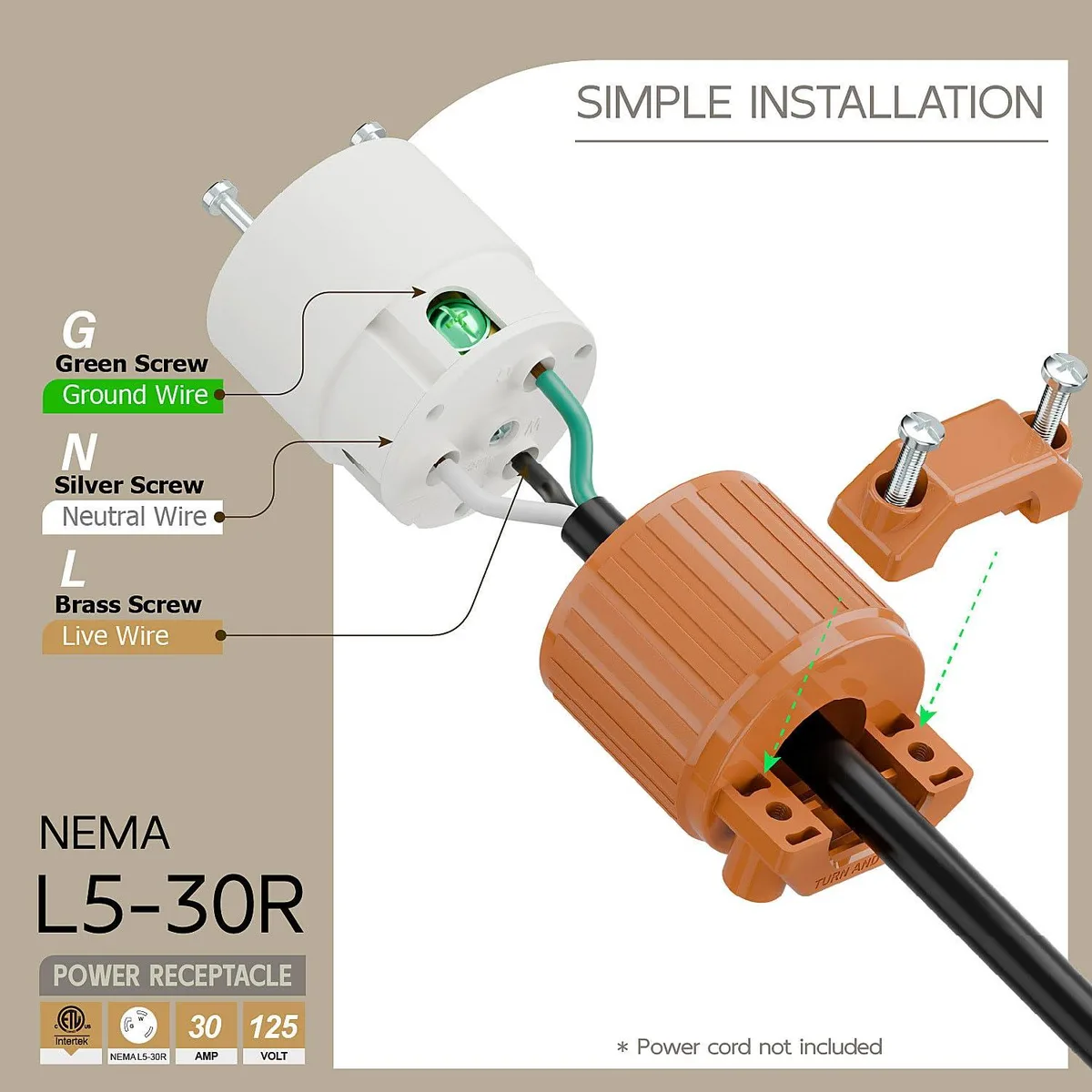

Builders wiring generators, RV shore-power inlets or heavy-duty extension cords will appreciate the solid brass terminals and strain relief that grips SJT, STW and similar cables. The screw-lock assembly is straightforward for field installation. Installers needing a male plug, a different NEMA configuration or a rating above 30 amps must select another part.

30-amp 125-volt rating

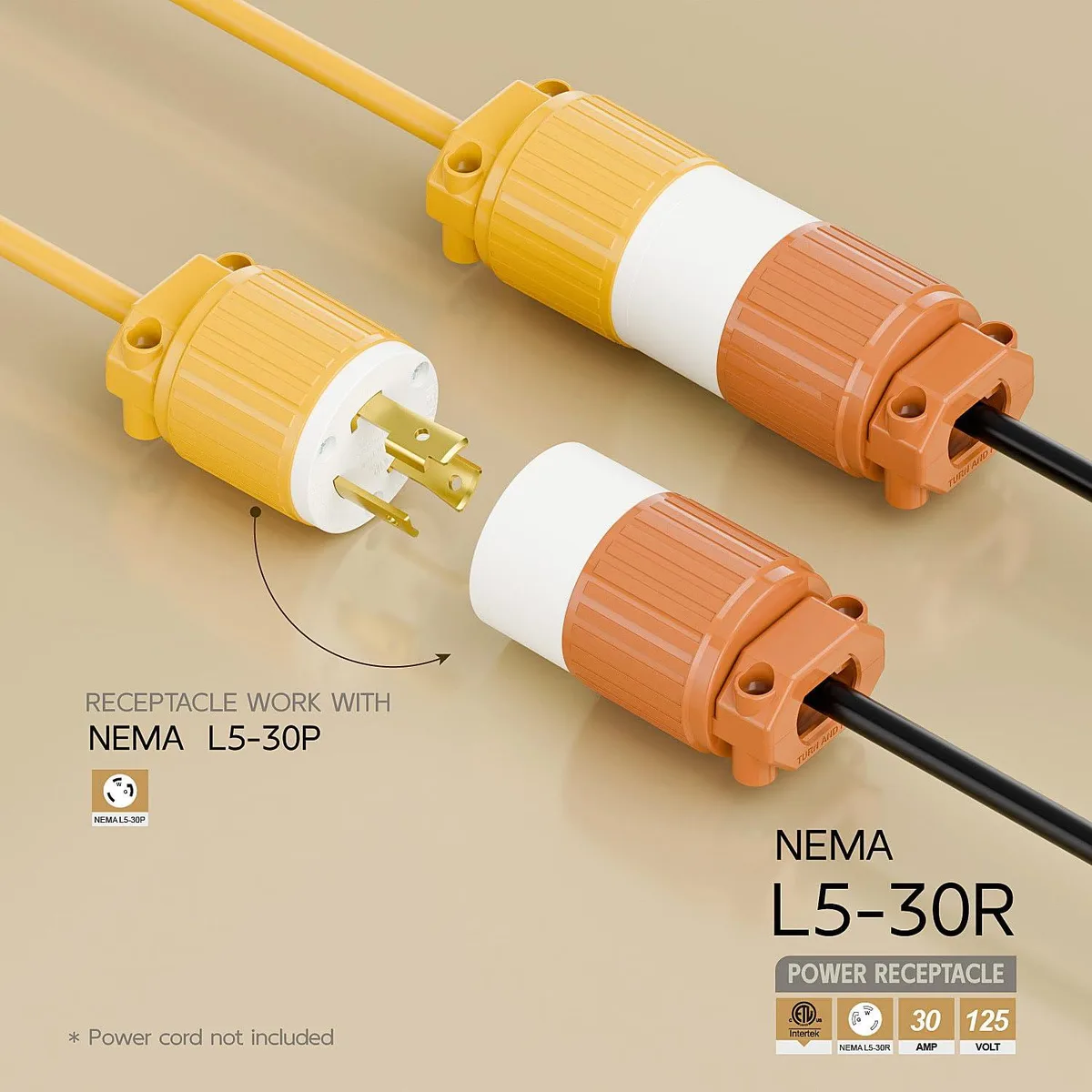

The single specification that decides fit is the 30 A, 125 V AC rating combined with the NEMA L5-30R locking geometry. Only cords and inlets built to the same standard will mate correctly and carry the rated current safely.

Highlights

  • ETL certified for USA and Canada safety standards
  • Nylon housing with brass blades for low resistance and heat
  • 2-pole 3-wire grounding with 94V-0 flame rating
  • Twist-lock screw design for secure DIY installation
  • Compatible with AWG 10 to 18 power cords

Specifications

BrandLORDWORLD

Questions about this item

How can I confirm the connector is seated correctly after wiring?

The twist-lock mechanism engages with a distinct click when the L5-30R is fully rotated into the locked position, and the screw terminals hold AWG 10 through 14 conductors without loosening.

What comes in the package and what must I supply?

The box contains the orange nylon locking connector with three brass terminals; you must provide a compatible SJT or STW cord in AWG 10, 12, 14, 16 or 18 and basic wiring tools.

Which version of this connector should I choose for a 30 A 125 V circuit?

Select the NEMA L5-30R model rated 30 A 125 V AC 60 Hz, 2-pole 3-wire grounding, with 94V-0 flame-rated nylon housing and ETL certification for USA and Canada.
