Black NEMA L5-30R locking connector with nylon housing and brass terminals

LORDWORLD

LORDWORLD NEMA L5-30R 30A 125V Locking Connector Black

SKU CH-EVFA-4MJKY

ETL-certified NEMA L5-30R locking connector rated 30 A 125 V, accepts AWG 10-18 cord with strain relief

  • ETL certified for USA and Canada safety compliance
  • Solid nylon housing with copper brass blades for low resistance and heat
  • 2-pole 3-wire grounding design with 94V-0 flame rating

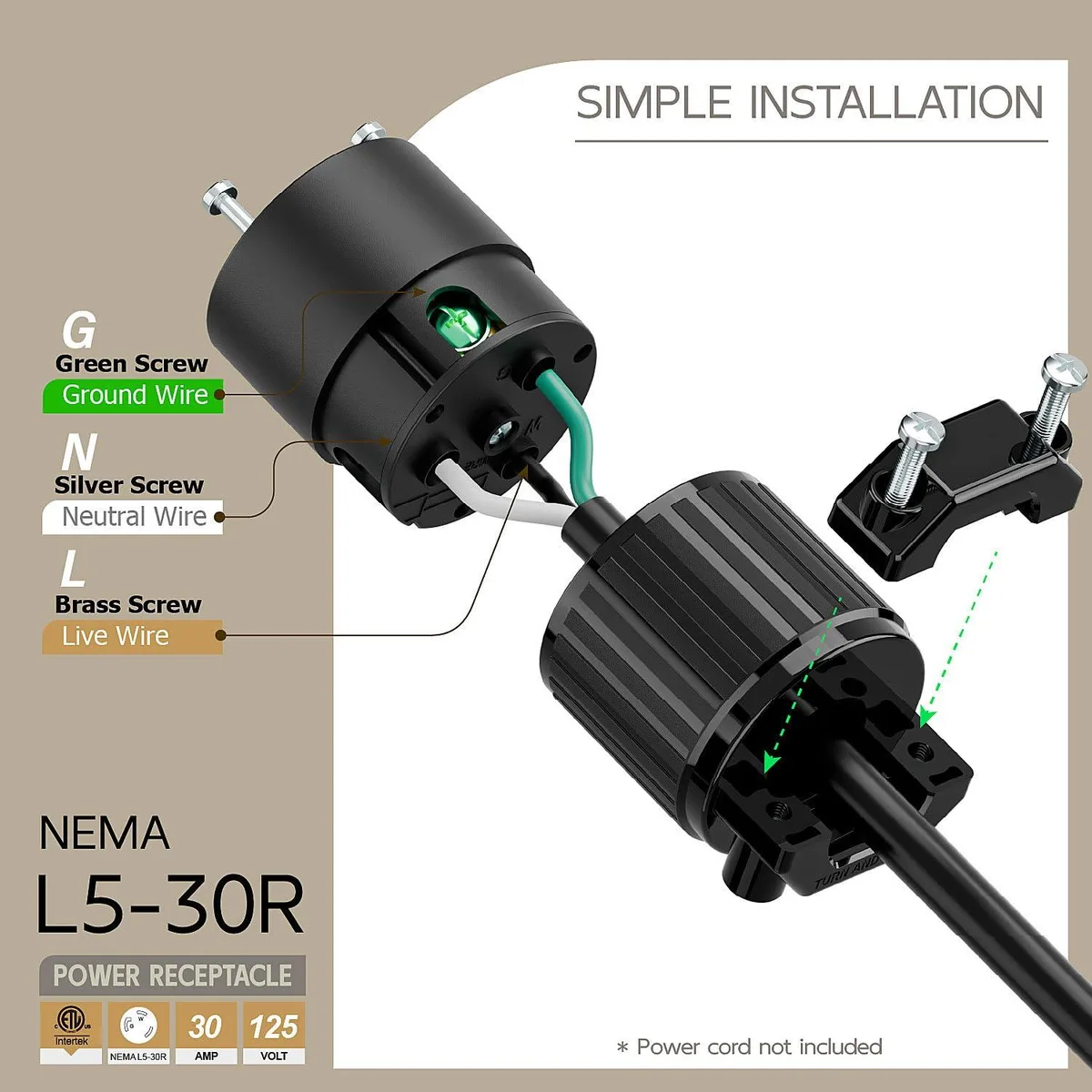

  • Twist-lock screw mechanism ensures secure and convenient DIY connections
  • Compatible with AWG 10 through 18 power cords for versatile wiring

Nema L5-30R Locking Connector

This ETL-certified NEMA L5-30R receptacle provides a 30 A, 125 V AC locking connection for DIY power cords. The twist-lock design secures the plug against accidental disconnection in demanding environments. A nylon housing rated 94V-0 and brass terminals deliver low resistance and heat rise even under heavy load. Strain relief accepts cables from AWG 10 through AWG 18.

Suitable for DIY and industrial power leads

Builders assembling generator cables, RV shore-power cords or workshop extension leads will appreciate the screw-lock terminals and wide cable-range strain relief. The connector is not suited for installations requiring a NEMA L6-30R or any other pin configuration, nor for voltages above 125 V AC. Users needing a male plug or a non-locking straight-blade receptacle should select a different part.

The NEMA L5-30R rating decides compatibility

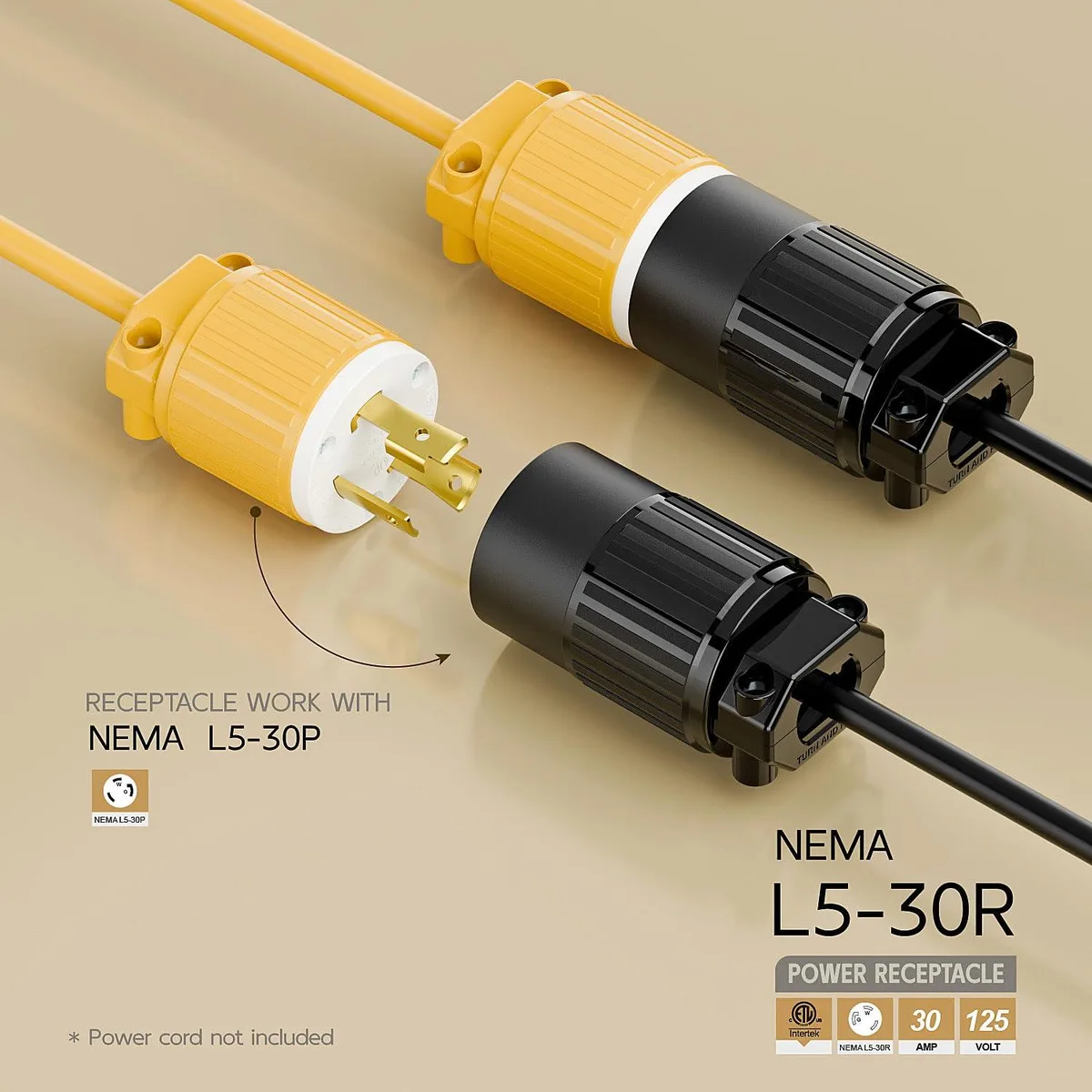

Only a matching NEMA L5-30P plug will engage the three-wire grounding layout of this female receptacle. The 30 A, 125 V, 60 Hz rating must match the circuit breaker and supply voltage exactly. Verify that the cable gauge falls within the AWG 10 to AWG 18 range supported by the strain relief before wiring.

Highlights

  • ETL certified for USA and Canada safety compliance
  • Solid nylon housing with copper brass blades for low resistance and heat
  • 2-pole 3-wire grounding design with 94V-0 flame rating
  • Twist-lock screw mechanism ensures secure and convenient DIY connections
  • Compatible with AWG 10 through 18 power cords for versatile wiring

Specifications

BrandLORDWORLD

Questions about this item

Which wire-gauge range does this L5-30R connector accept?

The strain-relief clamps cords from 18 AWG up to 10 AWG, covering SJT and STW types.

What does the 30 A 125 V rating mean for continuous use?

It supplies up to 30 amps at 125 volts AC, 60 Hz, suitable for loads that stay within that limit.

How does the NEMA L5-30R twist-lock interface affect the connection?

The locking design mates with a matching L5-30P plug and prevents accidental disconnection under vibration.
