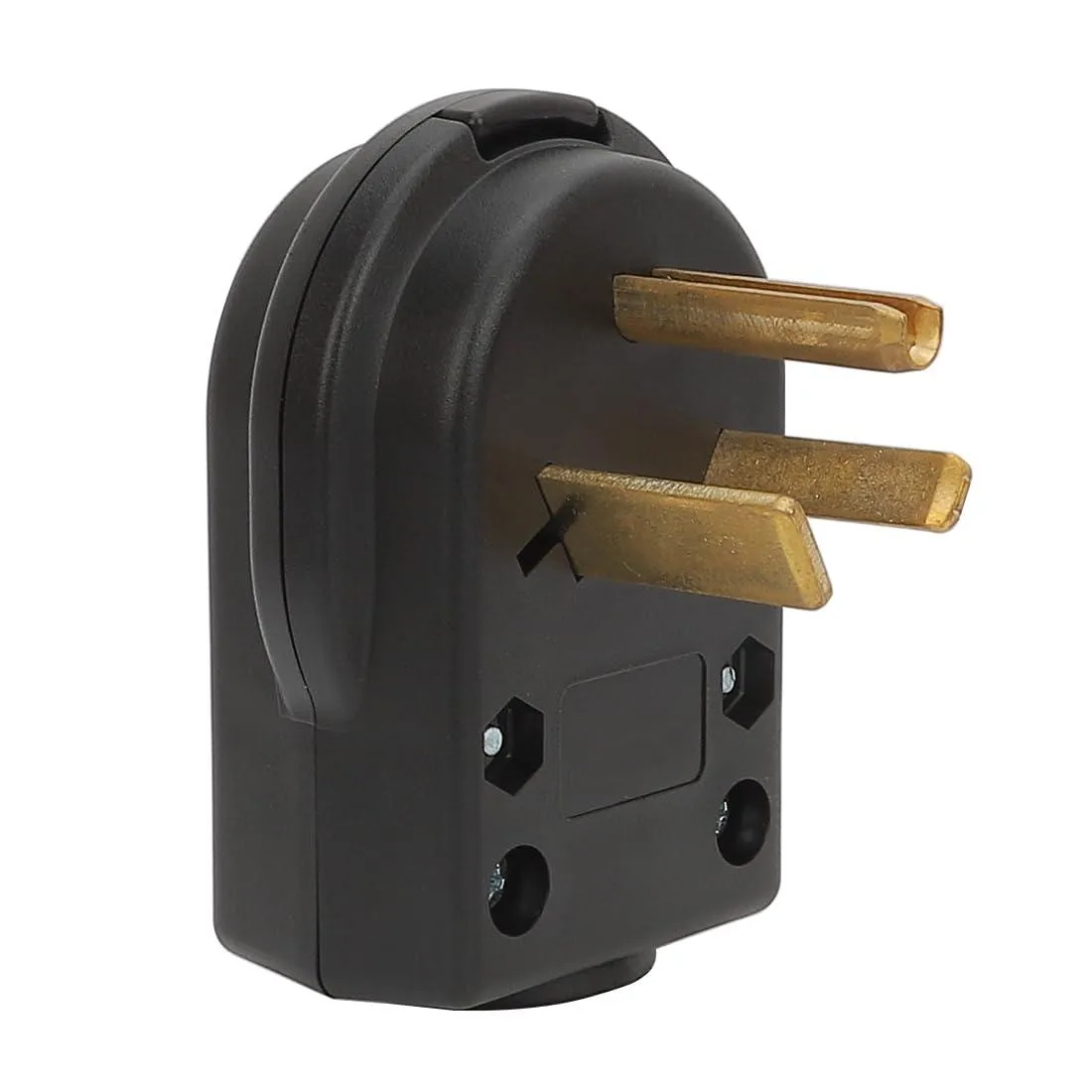

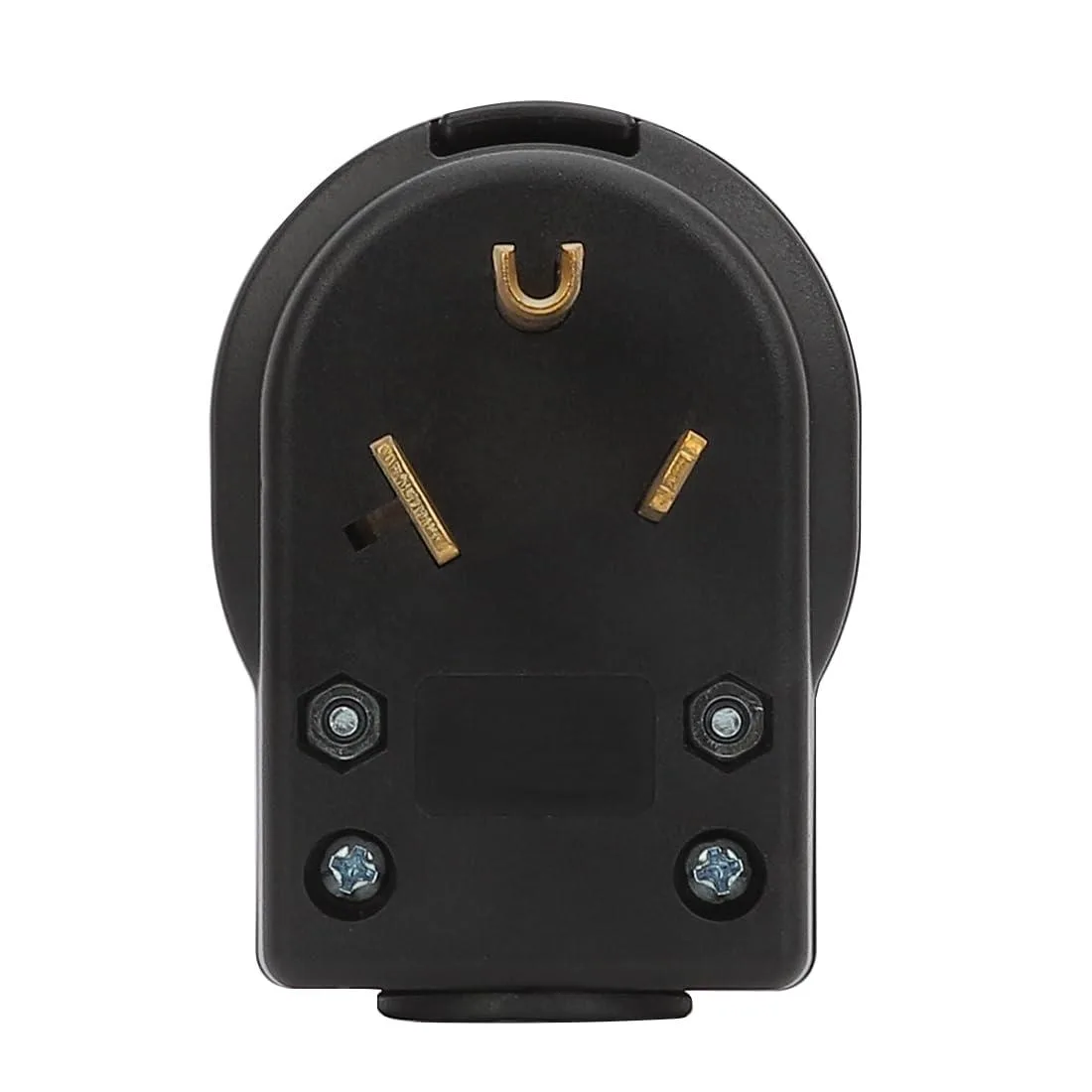

Angled black nylon industrial plug with three brass blades and strain relief

LORDWORLD

LORDWORLD NEMA 7-50P 50A 227V Angle Plug 1.06" OD

SKU CH-6K1C-NQ6NN

A 50 A, 227 V NEMA 7-50P angle plug with nylon UL 94-V0 housing, brass terminals and strain relief for cables up to 1.06 in OD

  • Rated for 50 A at 227 V for heavy-duty welder and dryer circuits
  • UL 94-V0 nylon housing insulates live parts and meets ROHS REACH rules
  • Accepts cable up to 1.06 in OD with 12 to 6 AWG conductors
  • Brass terminals and copper blades resist heat rise and ensure solid conductivity
  • Internal dust shield keeps terminals free of contaminants during industrial use

NEMA 7-50P 50 A 227 V angle plug

This heavy-duty AC power plug carries a NEMA 7-50P rating for 50 A at 227 V. It is built for welders, dryers and similar high-current equipment that require a rewireable straight-blade connection.

Cord OD limit 1.06 in

The housing accepts cables with an outside diameter up to 1.06 in. Supported cord types include SJT, STJW, STO, SJTO, SO, ST, SRD, SVO and similar three-conductor cables from 12 AWG to 6 AWG.

12 AWG to 6 AWG copper range

Brass terminals clamp copper conductors from 12 AWG through 6 AWG. Two strain-relief inserts are supplied: combine both for 12 AWG cord, use the 10 AWG insert alone for 10 AWG, and rely on the metal pressure plate for larger cables.

Highlights

  • Rated for 50 A at 227 V for heavy-duty welder and dryer circuits
  • UL 94-V0 nylon housing insulates live parts and meets ROHS REACH rules
  • Accepts cable up to 1.06 in OD with 12 to 6 AWG conductors
  • Brass terminals and copper blades resist heat rise and ensure solid conductivity
  • Internal dust shield keeps terminals free of contaminants during industrial use

Specifications

BrandLORDWORLD

Questions about this item

How does the 50 A rating hold up when the plug is wired into a welder circuit?

The NEMA 7-50P angle plug is rated for 50 A at 227 V, so it will carry a welder’s full load without overheating when correctly terminated on 6 AWG to 12 AWG copper conductors.

What does the NEMA 7-50P designation limit in actual use?

NEMA 7-50P defines a 3-pole, 3-wire grounding straight-blade configuration locked to 50 A and 227 V AC; it cannot be used on higher voltages or different pin layouts.

What cable diameters and wire gauges fit the 1.06 inch strain-relief opening?

The plug accepts cords up to 1.06 in. OD and includes two strain-relief inserts for 12 AWG through 6 AWG three-conductor cables such as SJT, STO, SO or SVO types.
