Black NEMA 6-50R 50A 250V female receptacle with three prongs

LORDWORLD

LORDWORLD NEMA 6-50R 50A 250V Receptacle Black

SKU CH-P4MP-H4V9G

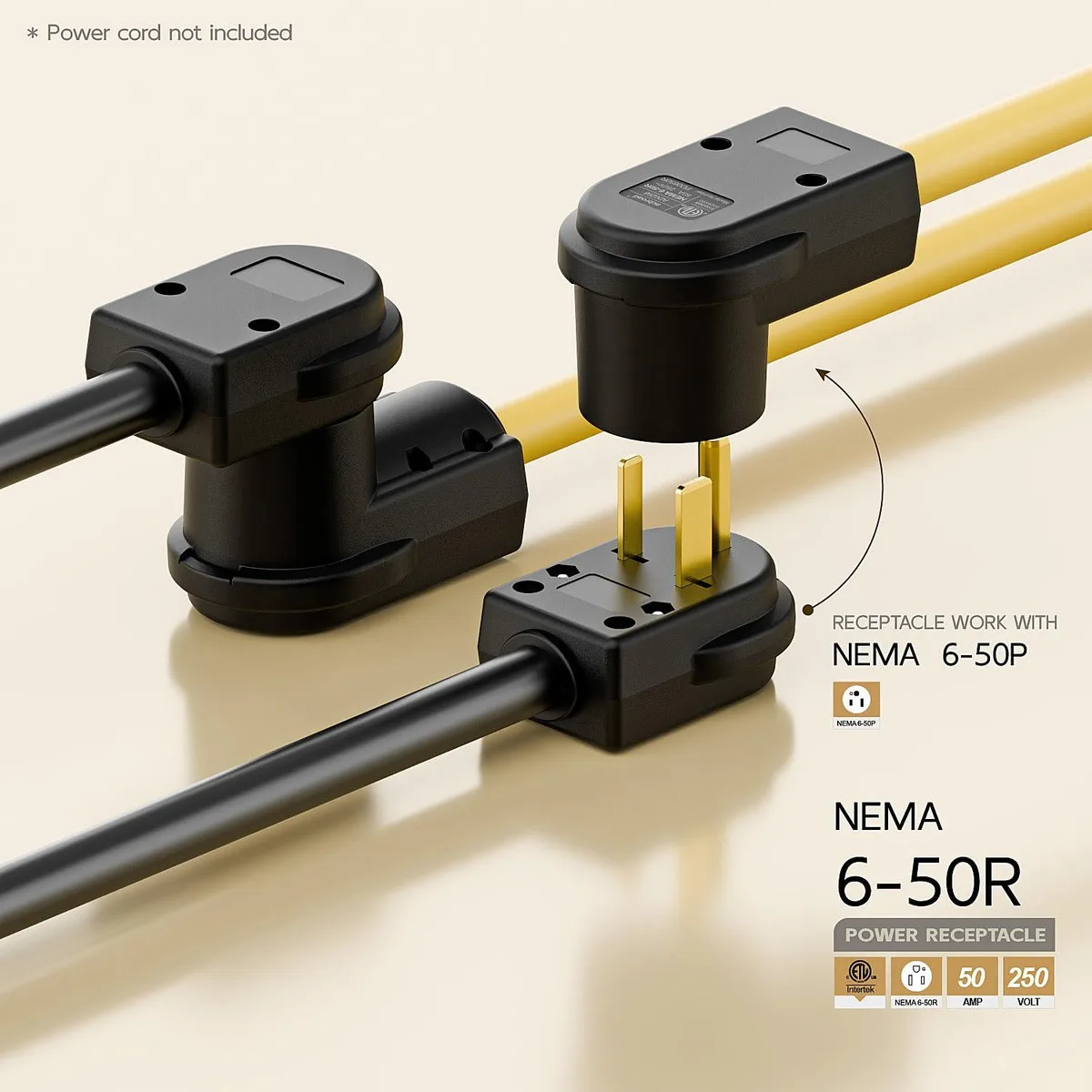

ETL-certified NEMA 6-50R female socket rated 50 A at 250 V accepts 12-6 AWG cords for welders and dryers

  • ETL certified for safety compliance
  • 50 amp 250 volt rating supports heavy-duty welders and dryers
  • Accepts 12 to 6 AWG cords for flexible wiring options
  • Nylon UL 94-V0 shell resists heat and meets RoHS Reach
  • Includes two strain reliefs for secure cord attachment

NEMA 6-50R 50A 250V Receptacle

This ETL certified heavy-duty receptacle provides a NEMA 6-50R female socket rated for 50 amps at 250 volts. It is designed for welders and dryers requiring a robust 3-prong connection. The housing uses pure nylon rated UL 94-V0 with brass pins for conductivity. Two extra strain reliefs are included to secure the cord assembly.

Installers needing 12-6AWG cord compatibility

Electricians and DIY users terminating 12 AWG through 6 AWG three-conductor cables such as SJT, ST, or SO types will find the terminal markings and ampacity table useful. The device supports cord diameters up to 31.5 mm. Buyers who need a different NEMA configuration or a male plug instead of a female receptacle should look at other products.

Straightforward wiring with marked terminals

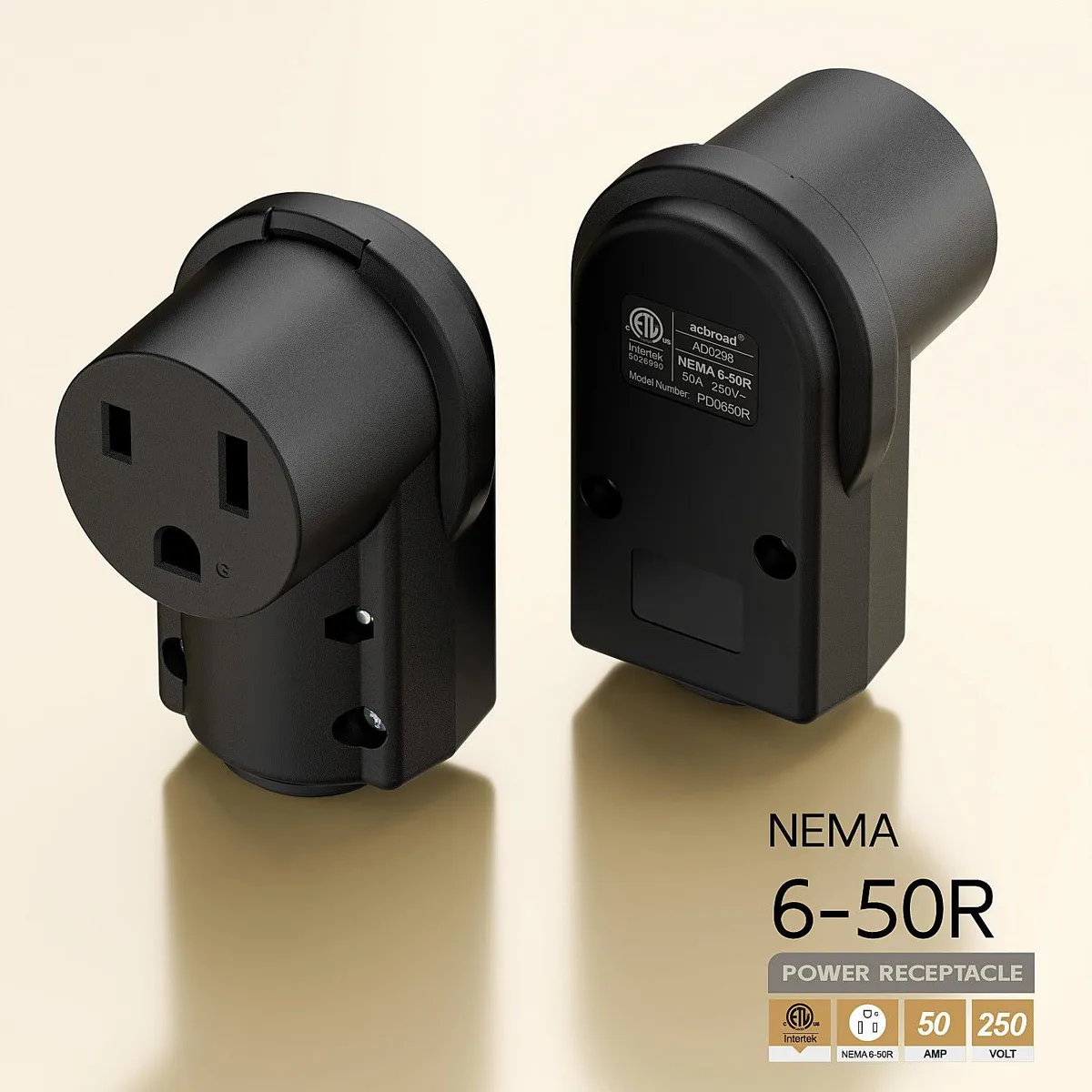

Line terminals are marked X, Y, Z and the grounding terminal is marked G for clear identification. The turn-and-pull locking action secures the connection once assembled. Stripping the correct conductor length and torquing the terminal screws to specification are the steps most often missed, so follow the UL 498 and CSA C22.2 No. 42 guidelines during installation.

Highlights

  • ETL certified for safety compliance
  • 50 amp 250 volt rating supports heavy-duty welders and dryers
  • Accepts 12 to 6 AWG cords for flexible wiring options
  • Nylon UL 94-V0 shell resists heat and meets RoHS Reach
  • Includes two strain reliefs for secure cord attachment

Specifications

BrandLORDWORLD

Questions about this item

What cord gauge do I need to connect to the 50A 250V receptacle?

The receptacle accepts 6 AWG cord for 50A, 8 or 7 AWG for 40A, 10 or 9 AWG for 30A, and 12 AWG for 25A at 250Vac.

Will my existing 10 AWG SJT cord fit the 31.5 mm maximum outer diameter?

Yes, the plug shell supports cord outer diameters up to 31.5 mm and lists SJT among the compatible cord types for 10 AWG conductors.

How can I verify the terminals are wired correctly after installation?

The line terminals are marked X, Y and Z, the grounding terminal is marked G and the grounded terminal is marked W for clear identification.
