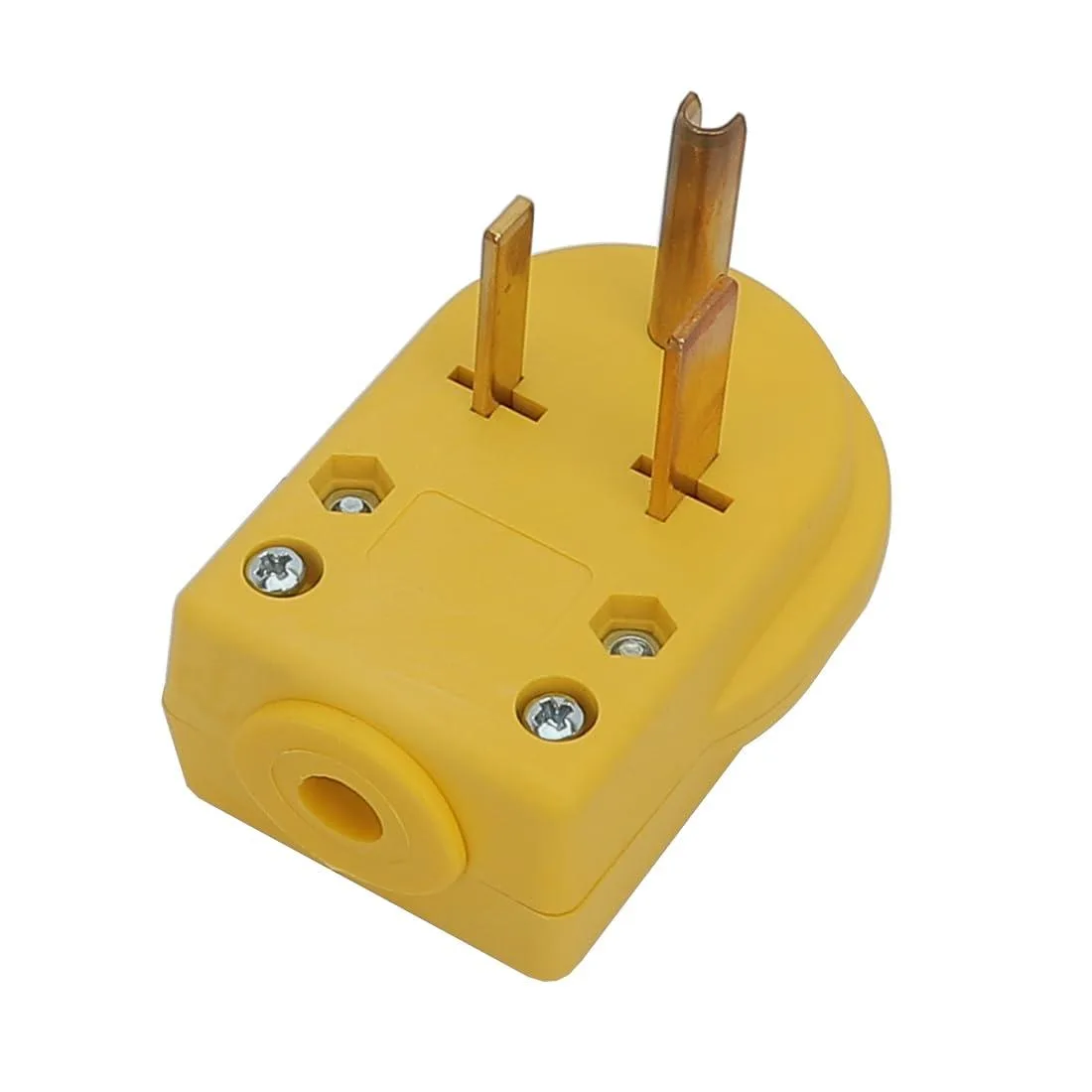

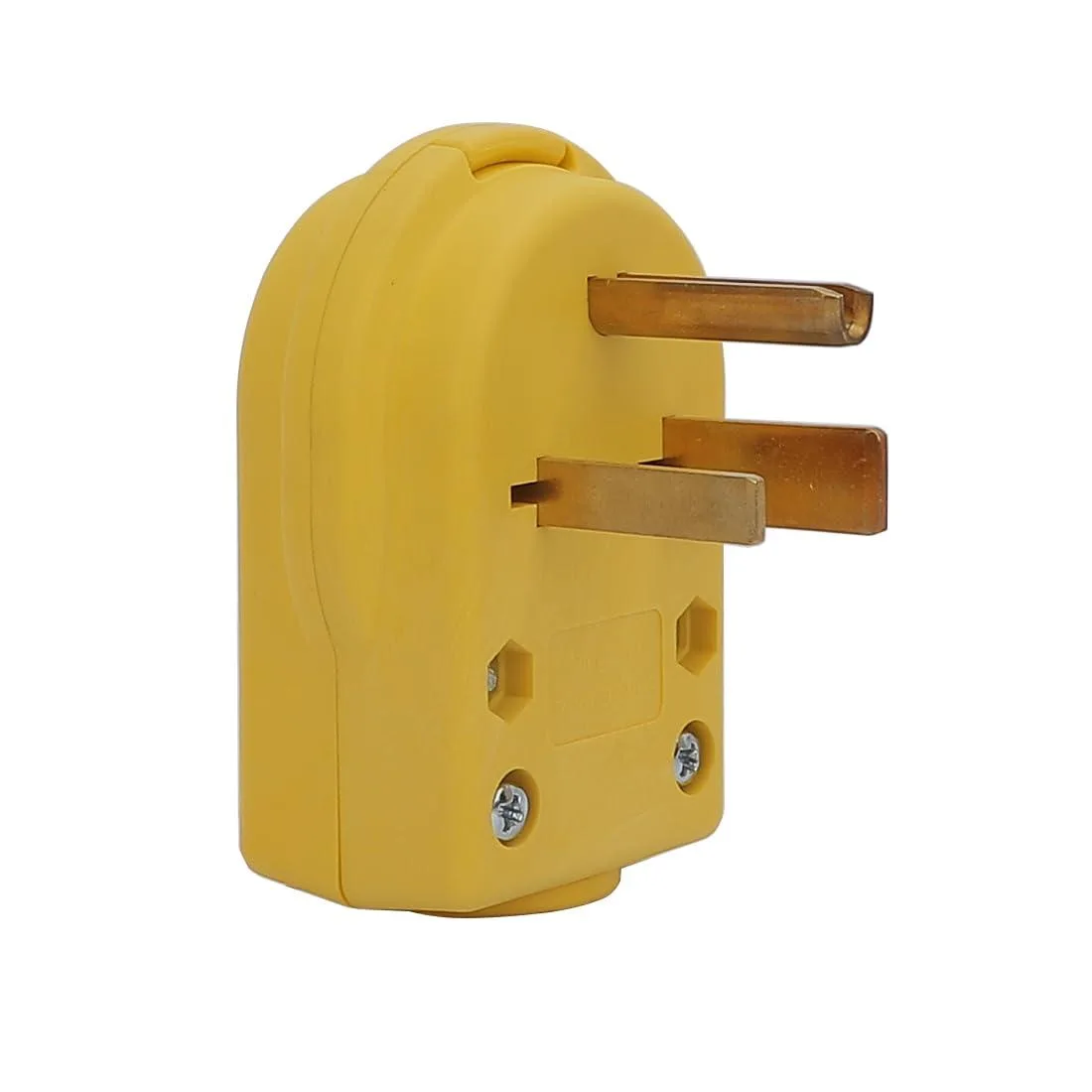

Yellow angled NEMA 6-50P plug with nylon housing and brass pins

LORDWORLD

LORDWORLD Nema 6-50P 50A 250V Angle Plug Yellow

SKU CH-JDJQ-S2BCT

Rewireable 50 A 250 V angle plug accepts cables up to 1.06 in OD and 6 AWG conductors

  • Rewireable 50 A 250 V plug lets you build or repair heavy-duty cords
  • UL 94-V0 nylon housing insulates live parts for safer handling
  • Brass terminals accept 12 to 6 AWG copper wire for secure connections
  • Two strain-relief options grip cables up to 1.06 in. outer diameter
  • Angled straight-blade design fits tight spaces on welders and dryers

Nema 6-50P 50A 250V Angle Plug

This LORDWORLD plug is a rewireable NEMA 6-50P connector rated at 50 amps and 250 volts. It is built for welders, dryers and similar high-current equipment. The yellow nylon housing meets UL 94-V0 and complies with RoHS and REACH. Brass terminals accept copper wire from 12 AWG to 6 AWG.

Cable diameter and wire gauge compatibility

Before ordering, verify that your cable outer diameter does not exceed 1.06 inches. The plug supports SJT, STJW, STO, SJTO, SO, ST, SRD and SVO type cords with three conductors. Two strain-relief inserts are supplied: use both together for 12 AWG cord, only the 10 AWG insert for 10 AWG cord, and the metal pressure plate alone for larger gauges.

Suited for DIY rewiring of industrial plugs

This plug suits installers who need a durable, straight-blade 50 A 250 V connection with insulated housing and dust-shielded terminals. It is not for buyers who require a different NEMA configuration, a lower amperage rating, or a plug that accepts cables larger than 1.06 inches OD.

Highlights

  • Rewireable 50 A 250 V plug lets you build or repair heavy-duty cords
  • UL 94-V0 nylon housing insulates live parts for safer handling
  • Brass terminals accept 12 to 6 AWG copper wire for secure connections
  • Two strain-relief options grip cables up to 1.06 in. outer diameter
  • Angled straight-blade design fits tight spaces on welders and dryers

Specifications

BrandLORDWORLD

Questions about this item

What is included with the LORDWORLD Nema 6-50P angle plug and what must be purchased separately?

The package contains the rewireable plug housing, brass terminals and two strain-relief inserts for 12AWG and 10AWG cables. You must supply your own 3-conductor cord rated 12AWG to 6AWG with an outer diameter up to 1.06 inches.

Which cable gauge and strain-relief combination should I select for this 50A 250V plug?

For 12AWG cord use both the 12AWG and 10AWG strain reliefs together; for 10AWG cord use only the 10AWG strain relief; for 8AWG or 6AWG cord discard the plastic inserts and clamp the cable with the metal pressure plate only.

What does the 50A 250V rating mean when the plug is installed on a welder or dryer circuit?

It certifies the plug for continuous loads up to 50 amps at 250 volts AC on a NEMA 6-50R receptacle, with brass terminals that accept 12AWG to 6AWG copper conductors and a nylon UL 94-V0 housing that resists heat rise during heavy-duty operation.
