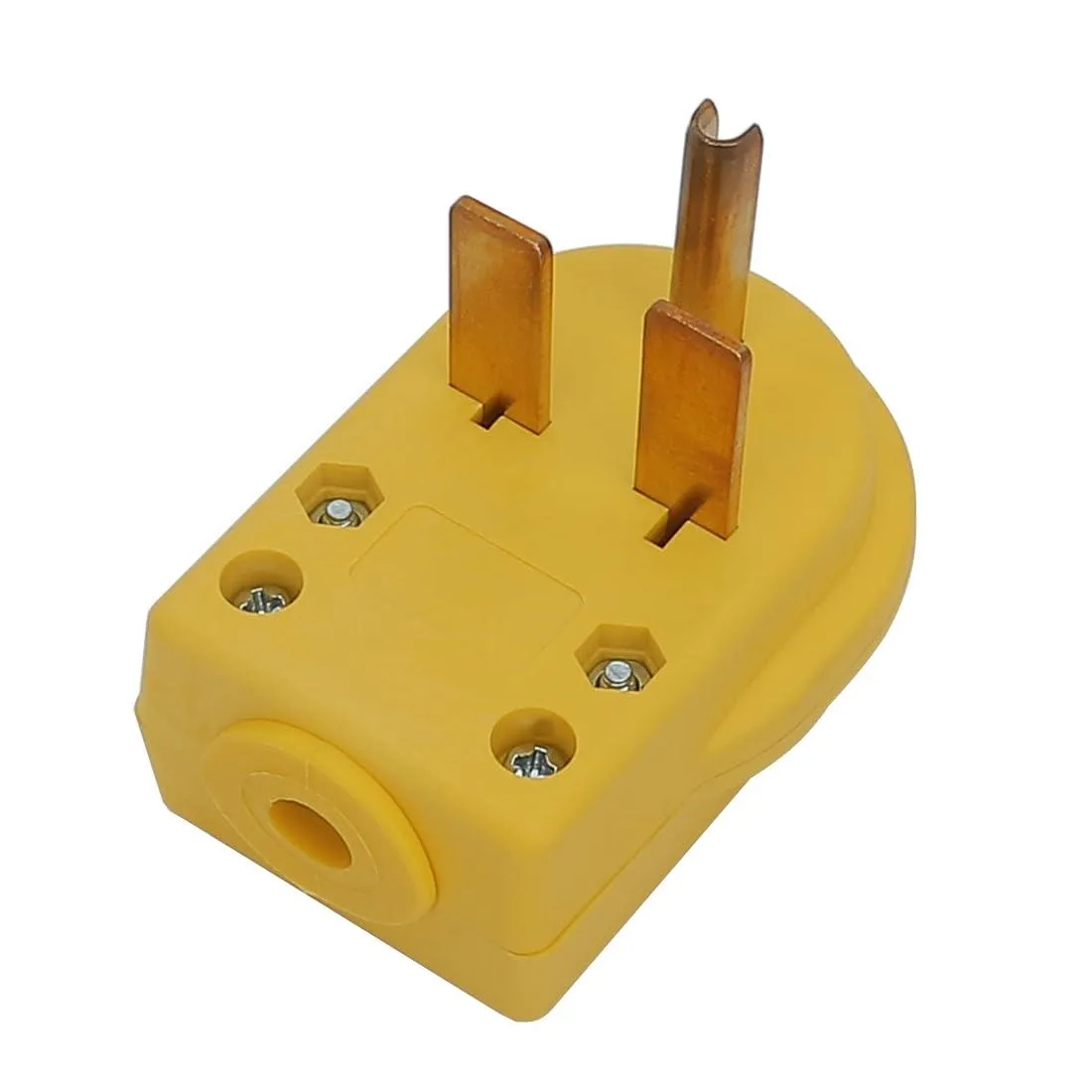

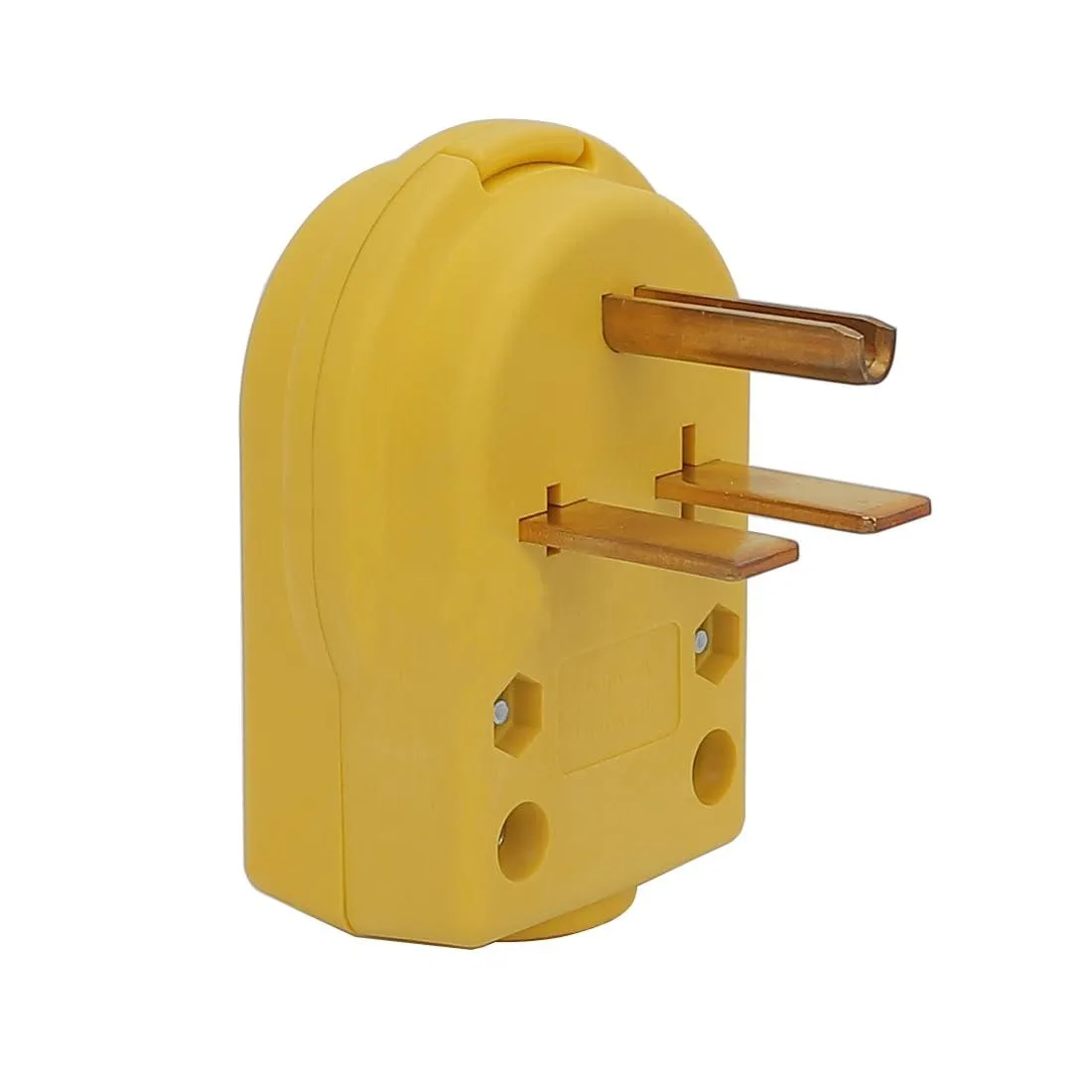

Yellow angled NEMA 6-30P plug with nylon housing and brass pins

LORDWORLD

LORDWORLD NEMA 6-30P 30A 250V Angle Plug Yellow

SKU CH-9ZD5-6HK4K

A 30 A 250 V NEMA 6-30P angle plug for welders and dryers, accepting 12 AWG to 6 AWG cable up to 1.06 in. OD with UL 94-V0 nylon housing and brass terminals

  • Heavy-duty 30 A 250 V rating powers welders and dryers
  • UL 94-V0 nylon housing resists heat and meets RoHS/REACH
  • Brass terminals accept 12 AWG to 6 AWG copper for secure wiring
  • Dual strain-relief options fit cables up to 1.06 in OD
  • Angled straight-blade design shields live parts and keeps terminals dust-free

NEMA 6-30P 30 A 250 V angle plug

This yellow plug is a rewireable NEMA 6-30P device rated for 30 A at 250 V. It suits welders, dryers and similar high-current equipment where a straight-blade, three-pole grounding connection is required. The angle form keeps the cable close to the wall or machine.

Nylon UL 94-V0 housing with brass terminals

The shell is moulded from pure nylon rated UL 94-V0 and complies with RoHS and REACH. Brass terminals accept copper conductors from 12 AWG to 6 AWG. Two strain-relief inserts are supplied for smaller cables; larger cords use the metal clamp only. An internal dust shield protects the terminals from contaminants.

Maximum cable outside diameter 1.06 in

The plug accommodates cables with an outside diameter up to 1.06 in, covering types such as SJT, STO, SO and SVO. Builders needing a larger cable entry or a different NEMA configuration will need another solution.

Highlights

  • Heavy-duty 30 A 250 V rating powers welders and dryers
  • UL 94-V0 nylon housing resists heat and meets RoHS/REACH
  • Brass terminals accept 12 AWG to 6 AWG copper for secure wiring
  • Dual strain-relief options fit cables up to 1.06 in OD
  • Angled straight-blade design shields live parts and keeps terminals dust-free

Specifications

BrandLORDWORLD

Questions about this item

What amperage and voltage does the NEMA 6-30P angle plug support?

The plug is rated for 30 amps at 250 volts, matching the NEMA 6-30P standard for welders and dryers.

What is the maximum cable outer diameter that fits the strain relief?

The plug accepts a maximum cable OD of 1.06 inches and includes two strain-relief inserts for 12 AWG through 6 AWG conductors.

How do I choose the correct strain-relief insert for my wire gauge?

Use both inserts together for 12 AWG cord, only the 10 AWG insert for 10 AWG cord, and rely on the metal pressure plate for larger cables.
