Black NEMA 5-20P 20A 125V AC plug with copper blades and brass terminals

LORDWORLD

LORDWORLD NEMA 5-20P 20A 125V AC Plug Black

SKU CH-X9VW-GBSBR

UL-certified NEMA 5-20P male plug rated 20 A 125 V with brass terminals and copper blades for DIY rewiring of 12–18 AWG cords

  • UL certified for USA and Canada safety compliance
  • Nema 5-20P rated 20A 125V for high-power devices
  • Copper pin blades with brass terminals ensure reliable conductivity
  • Screw-lock terminals accept AWG 12 to 18 cords for DIY wiring
  • 94V-0 flame-rated nylon housing resists heat and fire

NEMA 5-20P 20A 125V AC Plug

This UL certified male AC plug follows the NEMA 5-20P standard for 125V applications. It is suited for DIY enthusiasts and technicians building or repairing power cords. The screw lock terminals accept copper conductors for secure connections. It supports cord gauges from 18 AWG up to 12 AWG.

Copper Blades Brass Terminals Nylon Housing

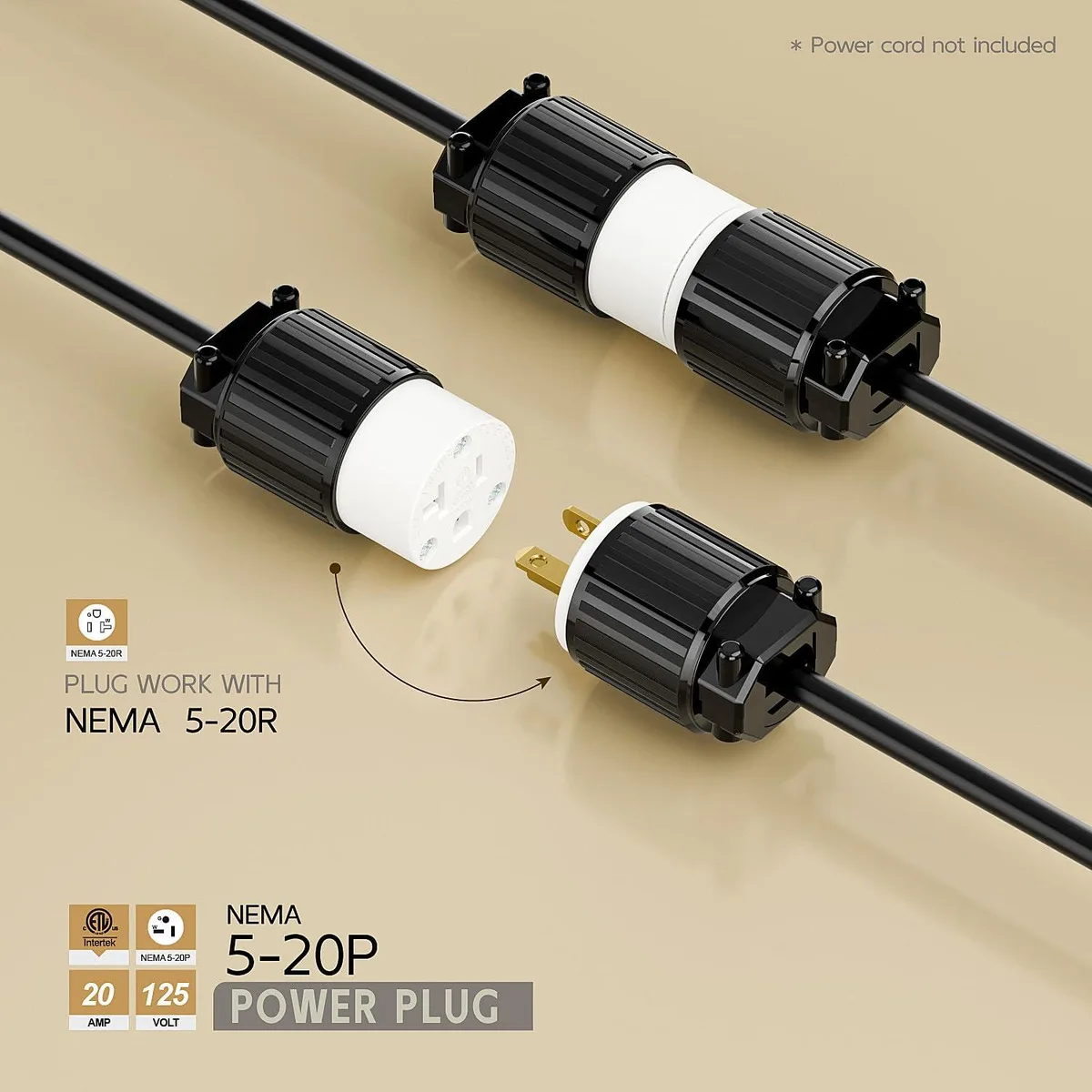

The plug features copper pin blades and three brass terminals housed in a 94V-0 rated nylon body. This construction provides flame resistance and solid electrical contact. The screw lock design allows straightforward assembly without specialised tools. The straight T-blade orientation fits standard NEMA 5-20R receptacles.

ETL Certified Rewirable Connector

UL certification covers both USA and Canada for compliance with North American safety standards. The rewirable format enables custom cable lengths for workshop equipment or appliance leads. No additional accessories or software are included in the package. The black finish offers a neutral appearance for installed cables.

Highlights

  • UL certified for USA and Canada safety compliance
  • Nema 5-20P rated 20A 125V for high-power devices
  • Copper pin blades with brass terminals ensure reliable conductivity
  • Screw-lock terminals accept AWG 12 to 18 cords for DIY wiring
  • 94V-0 flame-rated nylon housing resists heat and fire

Specifications

BrandLORDWORLD

Questions about this item

What does the NEMA 5-20P rating mean for actual current draw?

The plug is UL certified for 20 A at 125 V, though the marking also references 15 A; the brass terminals and copper blades handle the full 20 A rating.

Which cable sizes fit the screw terminals?

The terminals accept SJT 18, 16, 14 and AWG 12 conductors; strip each wire to the gauge mark and tighten the brass screws firmly.

How is the plug assembled and what step is often missed?

Slide the nylon housing over the stripped cord, connect hot, neutral and ground to the correct brass terminals, then snap the housing shut — forgetting the strain-relief clamp is the common error.
