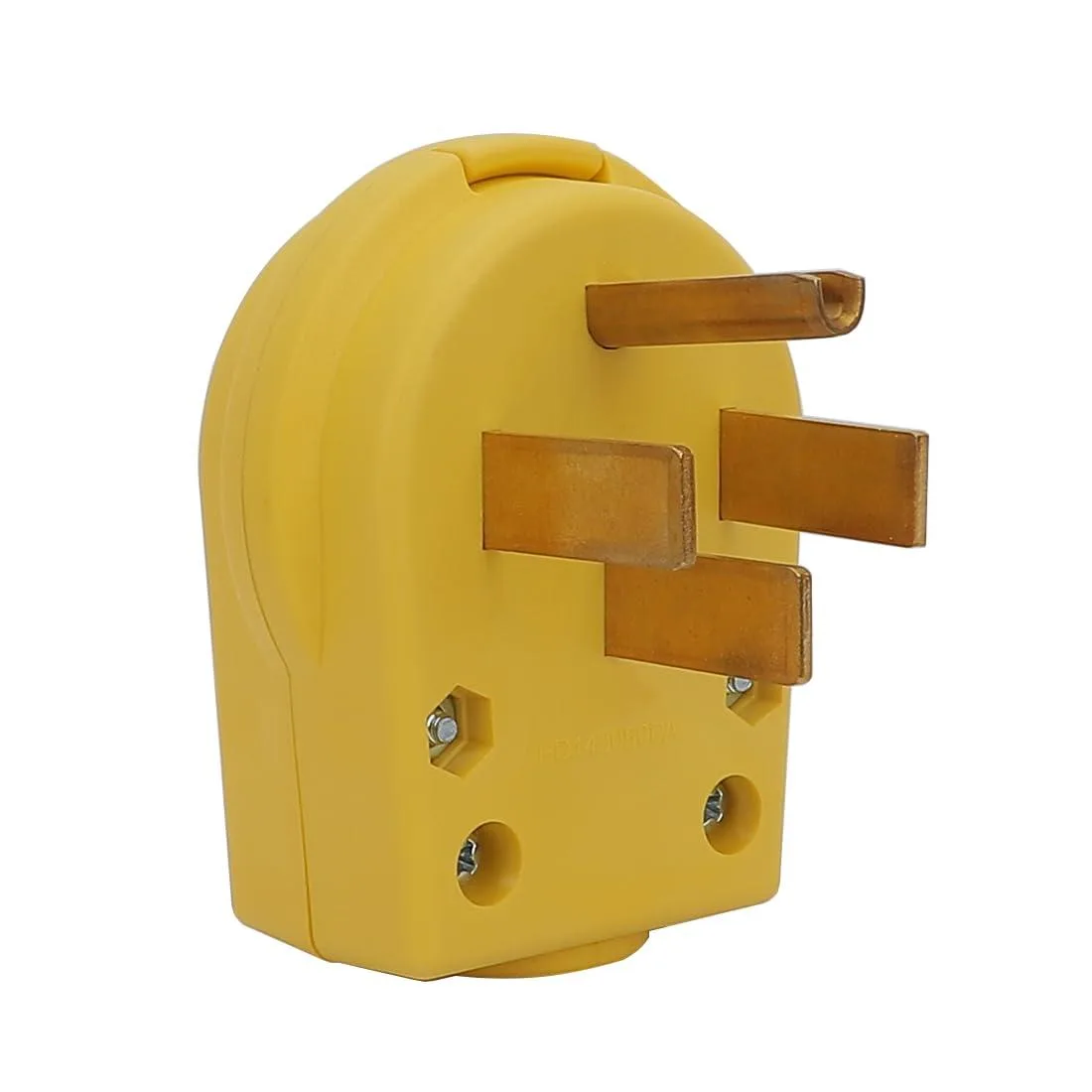

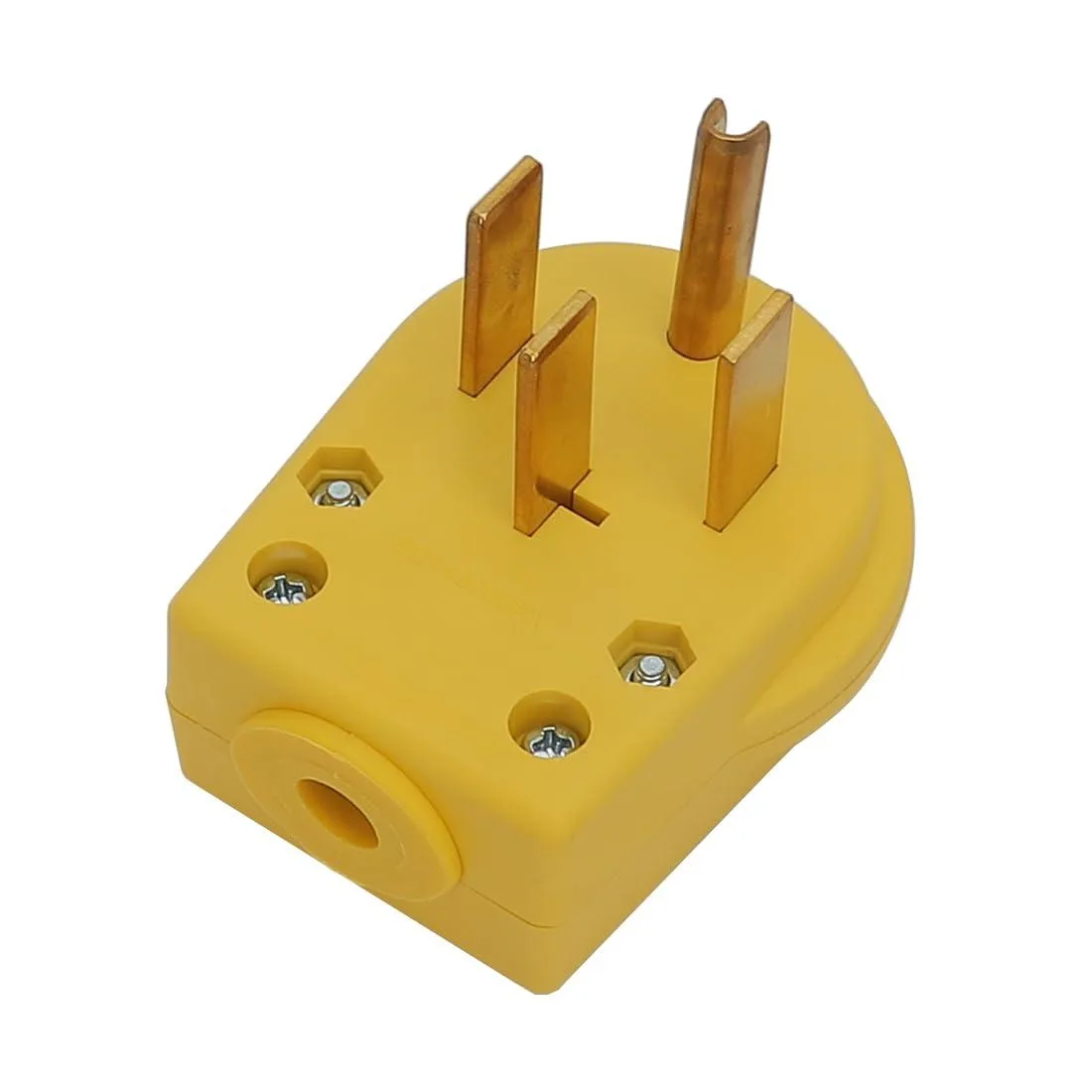

Yellow angled NEMA 14-50P plug with nylon housing and brass terminals

LORDWORLD

LORDWORLD NEMA 14-50P 50A 125/250V Angle Plug Yellow

SKU CH-PC9T-A6E04

A 50A 125/250V angle plug with UL 94-V0 nylon housing, brass terminals for 12-6AWG wire, and strain reliefs supporting up to 1.06-inch cable OD

  • Rated 50 A at 125/250 V for dryer and range circuits
  • UL 94-V0 nylon housing resists heat and meets ROHS REACH
  • Brass terminals accept 12 AWG to 6 AWG copper wire
  • Angle plug design supports cable OD up to 1.06 in
  • Dust shield keeps terminals free of contaminants

NEMA 14-50P 50 A 125/250 V angle plug

This NEMA 14-50P angle plug is a heavy-duty, rewireable AC connector rated at 50 A and 125/250 V. It is designed for dryers, ranges and similar high-current appliances. The yellow nylon housing meets UL 94-V0 flammability requirements and complies with ROHS and REACH. Brass terminals accept copper conductors from 12 AWG to 6 AWG.

Thermals and power handling

The plug is rated for continuous 50 A service at 125/250 V. Its industrial-grade brass blades and contacts resist heat rise and maintain conductivity under load. The insulated nylon shell shields exposed metal parts on the hand-held side. An internal dust shield keeps terminals free of contaminants during normal use.

Maximum cable diameter 1.06 in

The plug supports a maximum cable outer diameter of 1.06 inches and suits SJT, STJW, STO, SJTO, SO, ST, SRD, SVO and similar cord types with three conductors. Two strain-relief inserts are supplied: the 12 AWG cord uses both inserts together, the 10 AWG cord uses the 10 AWG insert alone, and larger cables rely on the metal pressure clamp only. Builders needing a smaller cable entry or a straight-body plug will need a different model.

Highlights

  • Rated 50 A at 125/250 V for dryer and range circuits
  • UL 94-V0 nylon housing resists heat and meets ROHS REACH
  • Brass terminals accept 12 AWG to 6 AWG copper wire
  • Angle plug design supports cable OD up to 1.06 in
  • Dust shield keeps terminals free of contaminants

Specifications

BrandLORDWORLD

Questions about this item

How do I install the LORDWORLD NEMA 14-50P angle plug, and which strain relief combination do I use for a 12 AWG cord?

Loosen the brass terminal screws, insert each stripped copper wire into its matching terminal, and tighten securely. For a 12 AWG cord, fit both the 12 AWG and 10 AWG strain relief inserts together before clamping the housing shut.

What maintenance or replacement will this plug need over time?

Inspect the brass terminals and nylon housing periodically for discolouration, melted insulation, or cracked strain reliefs. Replace the entire plug if the blades show pitting, the housing is deformed, or the terminals no longer grip the wires tightly.

What is the first limit I will hit when running this plug at continuous 50 A load?

The brass terminals and nylon UL 94-V0 housing are rated for the full 50 A at 125/250 V, so the practical limit is the attached cable’s ampacity; ensure the cord gauge (12 AWG to 6 AWG) matches the sustained current to avoid overheating.
