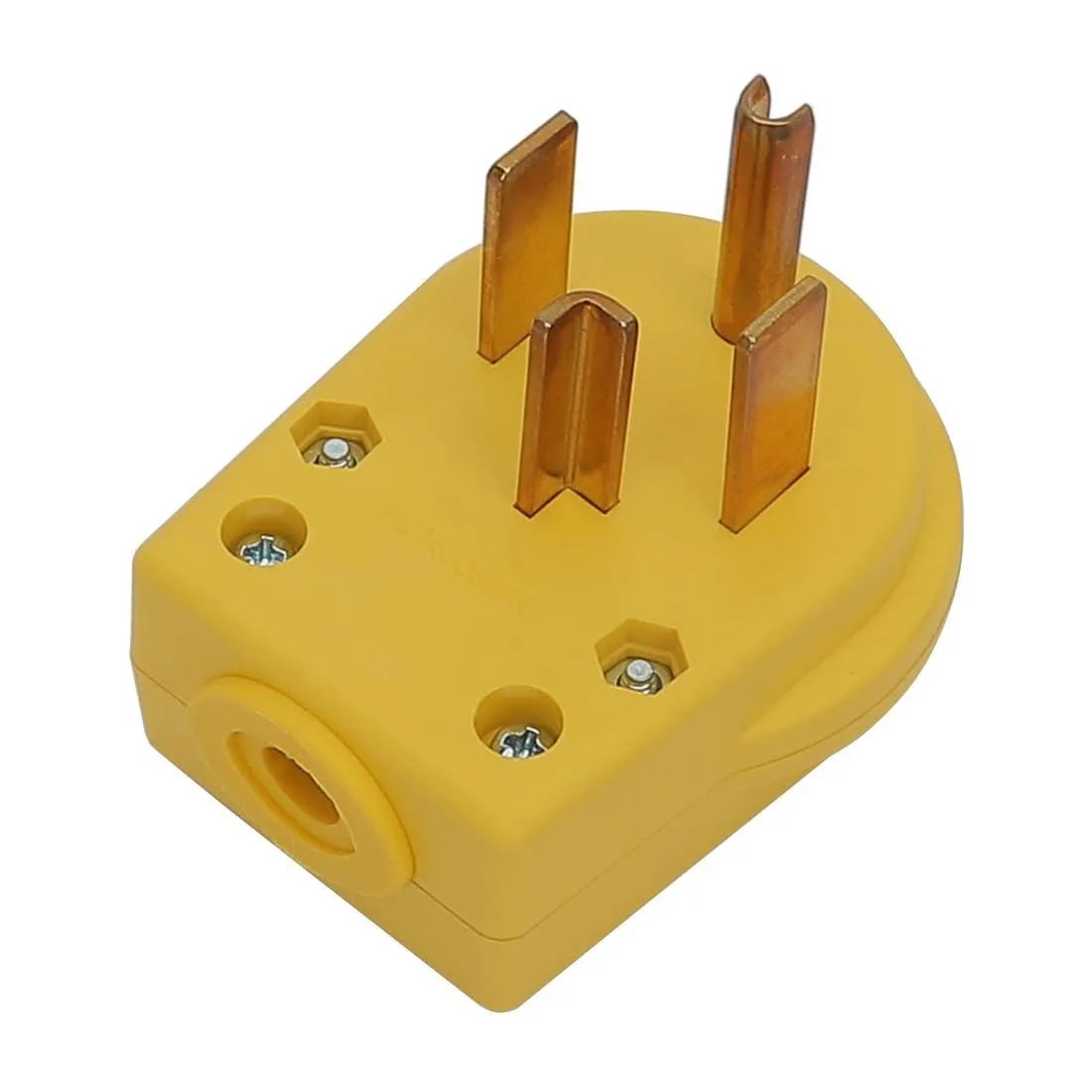

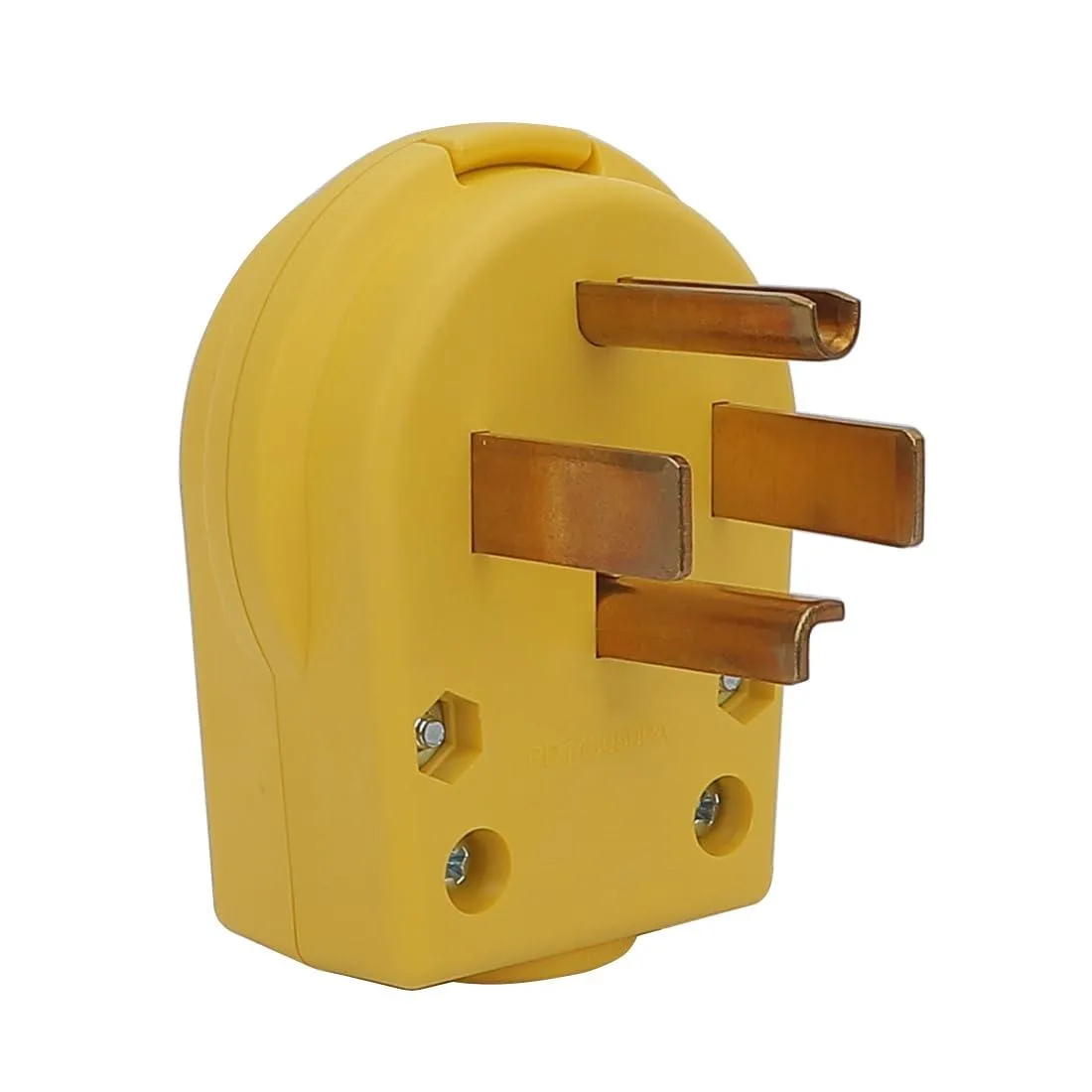

Yellow angled NEMA 14-30P plug with nylon housing and brass terminals

LORDWORLD

LORDWORLD NEMA 14-30P 30A 125/250V Angle Plug Yellow

SKU CH-5XR7-Q9AVZ

A 30 amp 125/250 volt angle plug with nylon housing and brass terminals for dryer and range cables up to 1.06 inch diameter

  • Rewireable 30 A plug fits dryer and range cords
  • UL 94-V0 nylon shell resists heat and flame
  • Brass terminals accept 12 to 6 AWG copper wire
  • Angle design keeps cable strain low in tight spaces
  • Dust shield protects terminals from debris and contaminants

LORDWORLD NEMA 14-30P Angle Plug

This 30 amp 125/250 volt angle plug is a rewireable AC power connector built for dryers and ranges. The yellow nylon housing meets UL 94-V0 and complies with ROHS REACH standards. Brass terminals accept copper wire from 12 to 6 AWG for a secure connection. It supports cable outer diameters up to 1.06 inches.

Suits DIY appliance cord repairs

Electricians and homeowners replacing dryer or range plugs will find the straight blade design familiar and the strain relief options flexible. The insulated nylon shell shields exposed metal parts on the hand-held side for safer handling. Buyers needing a different NEMA configuration or a higher amperage rating should look at other products.

Brass terminals simplify wiring

Brass terminals are easy to install and accept wire gauges from 12 to 6 AWG. Two optional strain reliefs are included: combine both for 12 AWG cord, use only the 10 AWG relief for 10 AWG cord, and rely on the metal pressure plate for larger cables. The internal dust shield keeps terminals free of contaminants during assembly.

Highlights

  • Rewireable 30 A plug fits dryer and range cords
  • UL 94-V0 nylon shell resists heat and flame
  • Brass terminals accept 12 to 6 AWG copper wire
  • Angle design keeps cable strain low in tight spaces
  • Dust shield protects terminals from debris and contaminants

Specifications

BrandLORDWORLD

Questions about this item

What cable diameter does the 1.06 inch strain relief accept for a safe fit?

The plug accepts cord outer diameters up to 1.06 inches and includes two strain reliefs; use both for 12AWG cord, only the 10AWG relief for 10AWG cord, and the metal clamp alone for larger cables.

Will the brass terminals grip 8AWG copper wire without slipping?

Yes, the brass terminals are rated for copper conductors from 12AWG through 6AWG, so 8AWG wire will seat tightly when the terminal screws are torqued correctly.

How can I verify the NEMA 14-30P angle plug is wired correctly after assembly?

With power off, confirm continuity between each blade and its matching conductor, check the grounding pin bonds to the equipment frame, then energise and measure 125 volts between each hot blade and neutral plus 250 volts between the two hot blades.
