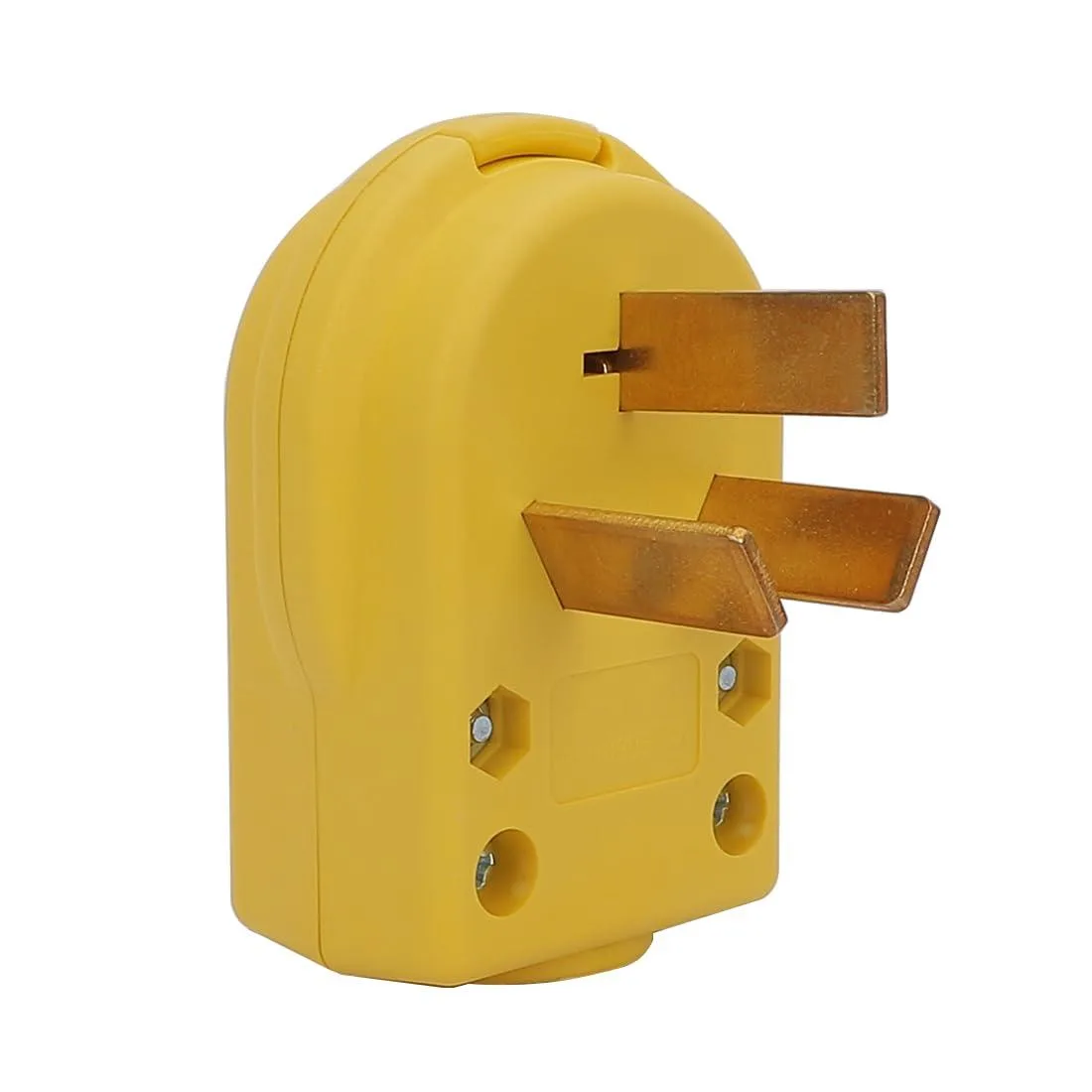

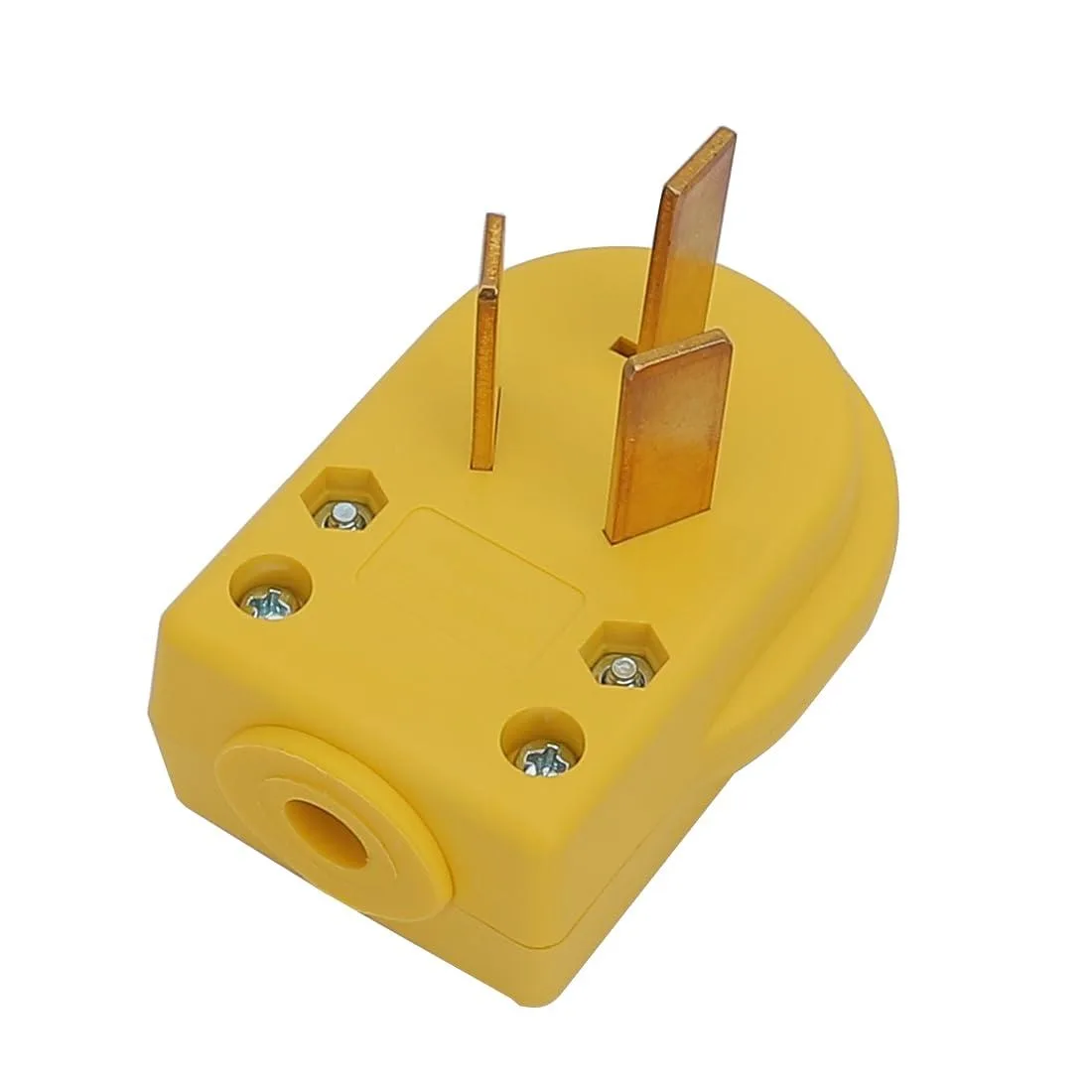

Yellow NEMA 10-50P rewireable plug with nylon housing and brass pins

LORDWORLD

LORDWORLD NEMA 10-50P 50A 125/250V Yellow Rewireable Plug

SKU CH-PGGR-70NYW

A 50A 125/250V NEMA 10-50P rewireable plug with UL 94-V0 nylon housing, brass terminals for 12–6 AWG wire, and 1.06 in max cord diameter

  • Rewireable 50 A 125/250 V plug suits dryer and range connections
  • Flame-retardant UL 94-V0 nylon housing protects against heat and contaminants
  • Brass terminals accept 12 AWG to 6 AWG copper for secure wiring
  • Two strain-relief options fit cord OD up to 1.06 inches
  • Straight-blade industrial design resists heat rise and ensures strong conductivity

Heavy-Duty Dryer & Range Plug

This rewireable NEMA 10-50P plug handles 50 amps at 125/250 volts for dryers, ranges and similar appliances. It suits DIY installers and industrial users who need a straight-blade, three-pole, three-wire grounding connection. The yellow nylon housing meets UL 94-V0 and complies with RoHS and REACH. It is built for heavy-duty service in commercial and residential settings.

Cord & Wire Limits

The plug accepts cord outer diameters up to 1.06 inches and supports SJT, STJW, STO, SJTO, SO, ST, SRD and SVO cable types. Copper conductors from 12 AWG to 6 AWG with three conductors fit the brass terminals. Two strain-relief inserts are supplied; 12 AWG cord uses both inserts together, 10 AWG uses the 10 AWG insert alone, and larger cables rely on the metal pressure clamp only.

Nylon Housing & Brass Terminals

The pure nylon shell insulates exposed metal parts on the hand-held side for safer handling. Brass terminals resist heat rise and provide reliable conductivity, while an internal dust shield keeps contacts free of contaminants. PVC strain reliefs secure the cable, and the straight-blade design allows straightforward mating with matching receptacles. Builders needing a different blade configuration or higher amperage will need another device.

Highlights

  • Rewireable 50 A 125/250 V plug suits dryer and range connections
  • Flame-retardant UL 94-V0 nylon housing protects against heat and contaminants
  • Brass terminals accept 12 AWG to 6 AWG copper for secure wiring
  • Two strain-relief options fit cord OD up to 1.06 inches
  • Straight-blade industrial design resists heat rise and ensures strong conductivity

Specifications

BrandLORDWORLD

Questions about this item

Which wire gauge should I use with this 50 A plug?

Copper wires from 12 AWG to 6 AWG can be tightly installed; the two included strain-relief inserts cover 12 AWG and 10 AWG cords, while larger cables use the metal pressure clamp only.

What does the 125/250 V rating mean when the plug is wired in a dryer circuit?

It supplies both 125 V and 250 V legs from a single 50 A three-pole, three-wire connection, matching the standard NEMA 10-50 dryer and range receptacle.

How does the NEMA 10-50P interface limit the maximum cord diameter?

The housing accepts a maximum cord outer diameter of 1.06 inches, so any SJT, STO, SO or similar three-conductor cable within that size will fit.
