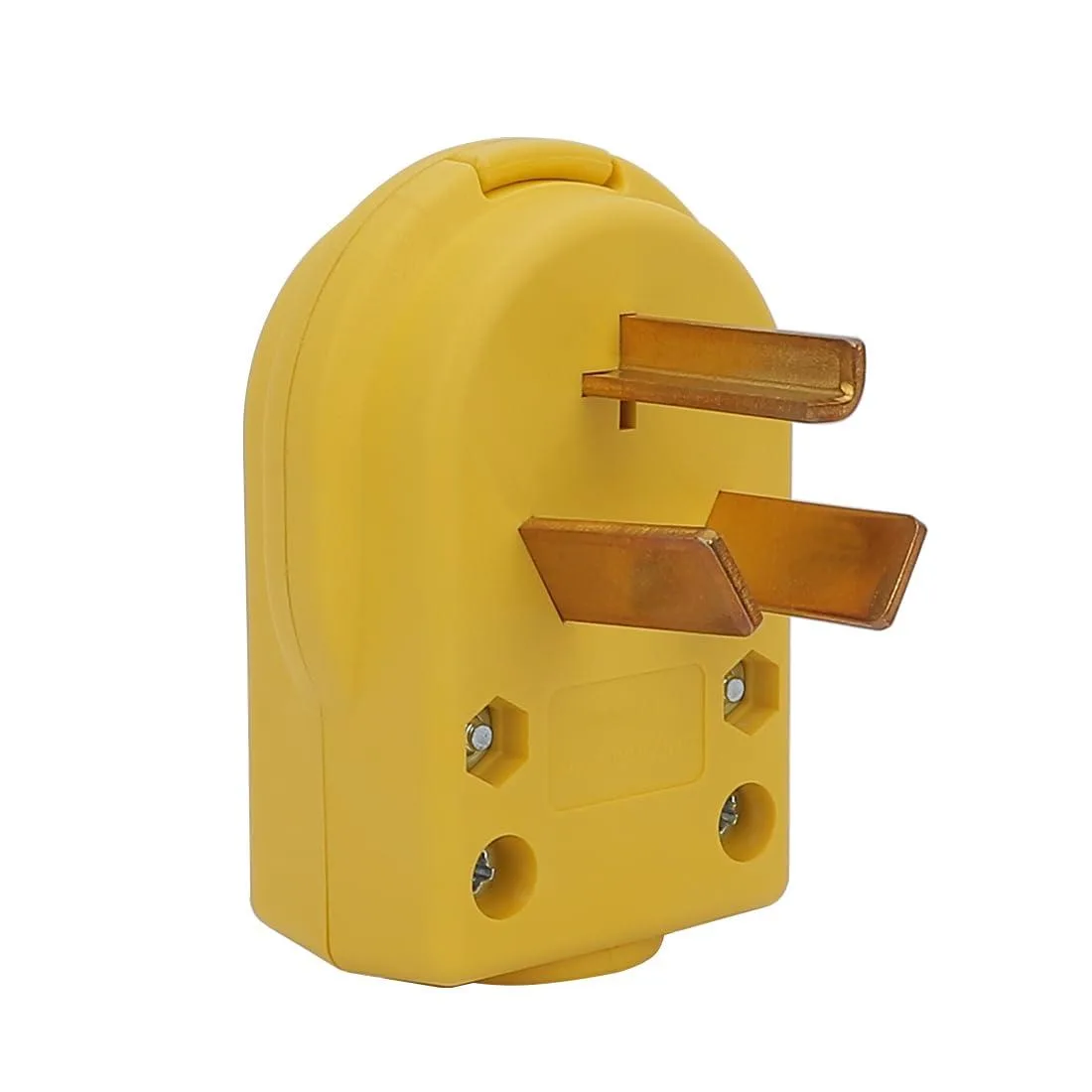

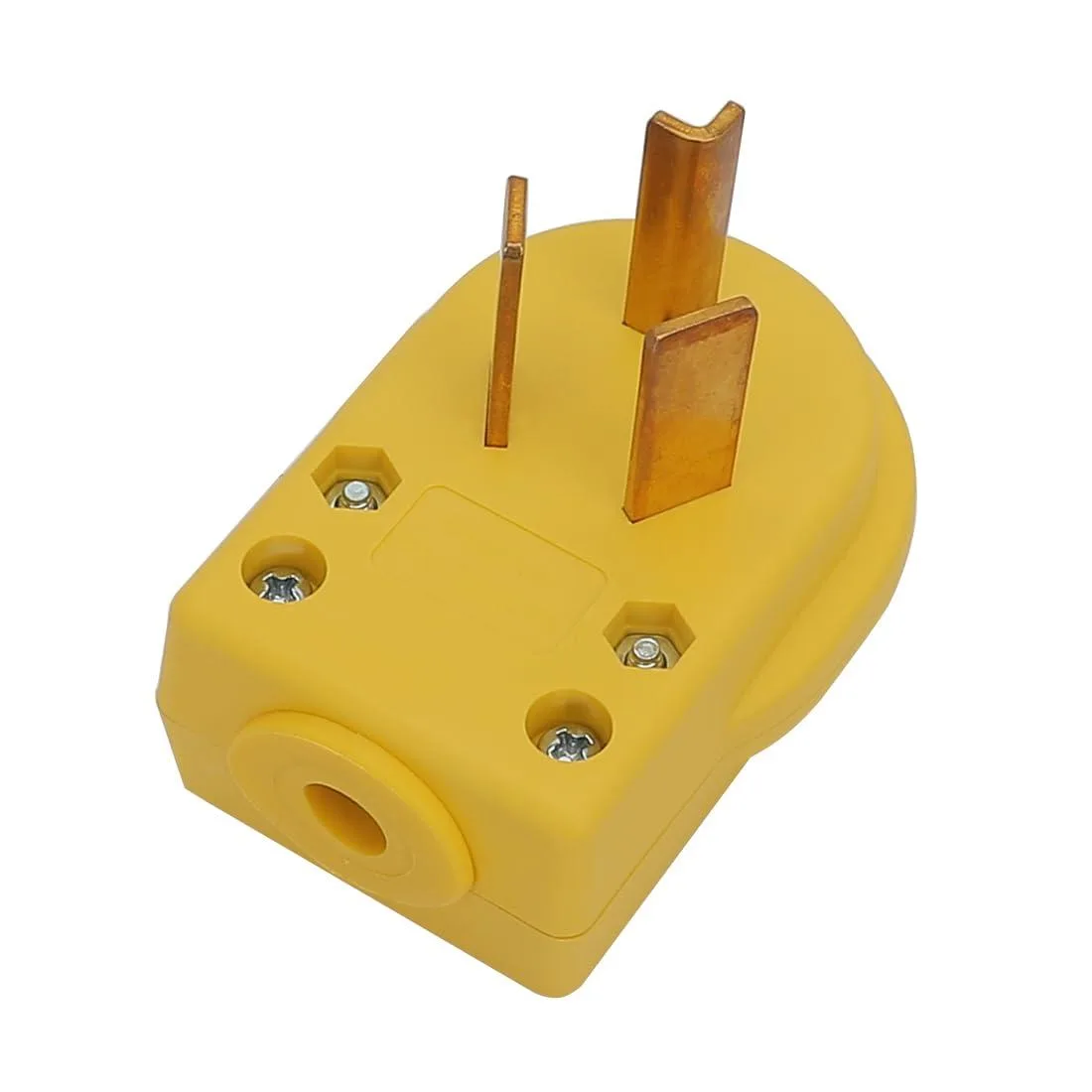

Yellow right-angle NEMA 10-30P plug with three brass blades and nylon body

LORDWORLD

LORDWORLD NEMA 10-30P 30A 125/250V Angle Plug Yellow

SKU CH-394D-M4XAF

Rewireable 30 A angle plug for dryer and range cords up to 1.06 in. OD, with UL 94-V0 nylon housing and brass terminals for 12–6 AWG wire

  • Rewireable 30 A plug lets you repair dryer cords yourself
  • UL 94-V0 nylon housing resists heat and meets ROHS REACH rules
  • Brass terminals accept 12 to 6 AWG copper wire for secure connections
  • Angled design fits tight laundry spaces while shielding live parts
  • Supports cable diameters up to 1.06 inches with included strain reliefs

Industrial Angle Plug for Dryers and Ranges

This NEMA 10-30P angle plug is rated at 30 amps and 125/250 volts for heavy-duty AC power connections. It is designed for DIY rewiring on dryers, ranges and similar appliances. The three-pole, three-wire grounding configuration suits industrial and commercial installations. A yellow nylon housing provides clear visibility in panel work.

Thermals Noise and Power Draw

The plug shell uses pure nylon rated to UL 94-V0 for flame resistance and heat management. Brass terminals and pure copper pins resist heat rise and maintain conductivity under continuous 30 amp loads. An internal dust shield keeps terminals free of contaminants that could increase resistance. No moving parts mean silent operation and no additional power draw beyond the connected load.

Upgrade From Worn or Damaged Plugs

This plug replaces cracked, melted or loose-fitting originals on existing dryer and range cords. It accepts copper conductors from 12 AWG to 6 AWG with two included strain-relief options for a secure fit. The jump is worth it when the old plug shows discolouration, intermittent contact or damaged blades. It is not for appliances requiring a four-wire grounding connection or a different NEMA configuration.

Highlights

  • Rewireable 30 A plug lets you repair dryer cords yourself
  • UL 94-V0 nylon housing resists heat and meets ROHS REACH rules
  • Brass terminals accept 12 to 6 AWG copper wire for secure connections
  • Angled design fits tight laundry spaces while shielding live parts
  • Supports cable diameters up to 1.06 inches with included strain reliefs

Specifications

BrandLORDWORLD

Questions about this item

How do I wire the brass terminals on the NEMA 10-30P angle plug and which strain-relief inserts match 10 AWG cable?

Strip the 3-conductor cable, insert each copper wire into a brass terminal and tighten the screws. For 10 AWG cord use only the 10 AWG strain-relief insert; for 12 AWG combine the 12 AWG and 10 AWG inserts together.

What maintenance will the nylon housing and brass contacts need over time?

Periodically check that terminal screws stay tight and that the yellow nylon shell shows no cracks or heat discolouration; the internal dust shield keeps contacts clean, so no routine cleaning is required.

What is the first limit reached when the plug runs continuously at 30 A?

The 30 A / 125-250 V rating and the 1.06 in maximum cable OD are the hard limits; exceeding either will cause overheating or prevent proper strain relief.
