Compact green circuit board with 40 pin header, USB 2.0 port and 8MP camera module 160° FOV

LORDWORLD

LORDWORLD Nano Base Board C for CM4 8MP 160° 40PIN USB 2.0 development board

SKU CH-CNB8-437M1

Development board for Raspberry Pi Compute Module 4 with 40-pin GPIO, onboard 8 MP 160° camera, USB 2.0 and TF card slot for Lite variants

  • Compact form factor matches CM4 dimensions exactly
  • Onboard 8MP camera with 160° field of view
  • 40-pin GPIO header enables Raspberry Pi peripheral compatibility
  • USB 2.0 Type-A port provides standard connectivity
  • TF card socket supports Compute Module 4 Lite variants

Compact CM4 carrier with onboard camera

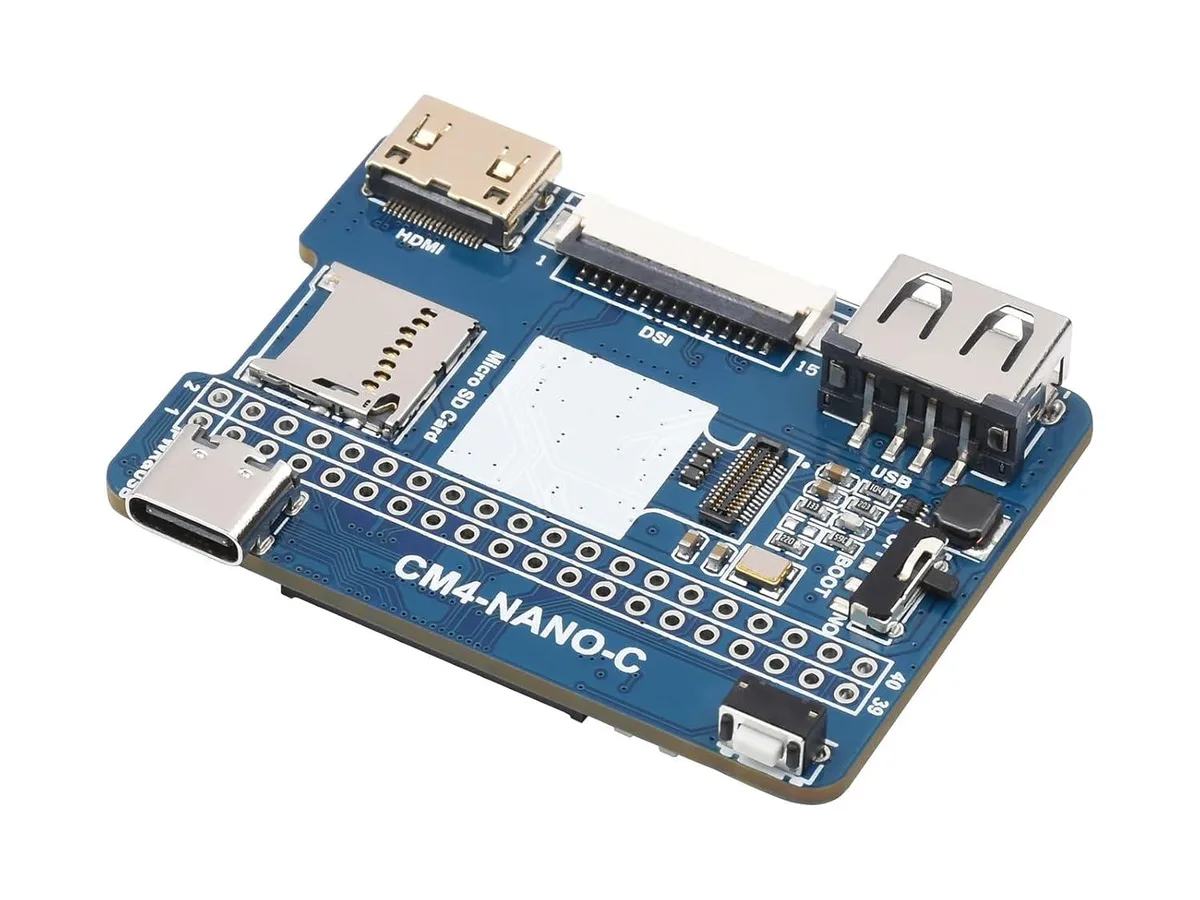

The LORDWORLD Nano Base Board C fits the Raspberry Pi Compute Module 4 Lite or eMMC variants and matches the module's outline. It provides a standard CM4 socket, a 40PIN GPIO header, a USB 2.0 Type A port and a MIPI DSI display connector for peripheral expansion. A TF card slot allows storage for Lite modules without onboard eMMC. The board accepts a 5 V power input for standalone operation.

8 MP wide-angle camera and I/O headroom

An integrated 8 MP camera module with a 160° field of view handles machine-vision and imaging tasks without extra hardware. The single USB 2.0 port and GPIO header give enough bandwidth for basic sensors and actuators but will saturate with high-throughput devices. Compute-heavy workloads are limited by the CM4 module chosen rather than the carrier itself.

TF card slot decides Lite versus eMMC support

The onboard TF card socket is required only when using a Compute Module 4 Lite that lacks eMMC storage. If your CM4 already includes eMMC, the slot remains unused and adds no benefit. Select the carrier based on which module variant you plan to deploy.

Highlights

  • Compact form factor matches CM4 dimensions exactly
  • Onboard 8MP camera with 160° field of view
  • 40-pin GPIO header enables Raspberry Pi peripheral compatibility
  • USB 2.0 Type-A port provides standard connectivity
  • TF card socket supports Compute Module 4 Lite variants

Specifications

BrandLORDWORLD

Questions about this item

Will the 40PIN GPIO header on this base board line up with my existing Raspberry Pi HATs?

Yes, the board provides a standard Raspberry Pi 40PIN GPIO interface so HATs designed for that pinout will connect directly.

How can I verify the onboard 8MP camera with 160° FOV is functioning after I install a Compute Module 4?

Boot the CM4, enable the camera interface in raspi-config, then run libcamera-hello or raspistill to capture a test image and confirm the wide-angle view.

Does the package include a Compute Module 4 or a microSD card for the TF socket on the board?

No, the board only provides the TF card socket for CM4 Lite variants; you must supply your own Compute Module 4 and microSD card separately.
