Small green circuit board with microSD slot and mSATA connector

LORDWORLD

LORDWORLD MSATA 30x50mm to Micro SD Card Adapter

SKU CH-AK05-41NXY

Converts a micro SD card into a 50 mm mSATA SSD with SATA 1.5 and 3.0 Gbps speeds

  • Converts micro SD cards to MSATA SSD format using S682 chipset
  • Supports SATA Gen1 at 1.5 Gbps and Gen2 at 3.0 Gbps speeds
  • Achieves data rates of 150 MB/s and 300 MB/s respectively
  • Works with DOS, Windows 98 through 11, and Linux operating systems
  • Fits 50 mm MSATA slots in industrial PCs, tablets, and POS machines

What this adapter does

The LORDWORLD adapter converts a micro SD card into an mSATA solid-state drive. It fits the standard 50 mm mSATA slot found in industrial boards, tablets, soft routers, POS terminals and video recorders. The board uses a Sage S682 chipset and works with DOS, Windows 98 through 11, WinCE and Linux without drivers.

Interface and speed limit

The card speaks SATA GEN1 at 1.5 gbps and GEN2 at 3.0 gbps, delivering up to 150 MB/s and 300 MB/s respectively. It will not function in a mini PCIe slot even though the connector looks similar. The micro SD card must be inserted before the adapter is placed into the powered-off host.

Thermals and power in use

The adapter has no active cooling and draws minimal power from the mSATA socket. An LED flashes when the micro SD card is being read, confirming normal operation. Cold-plug insertion after shutdown is required; hot-plugging the card or the adapter is not supported.

Highlights

  • Converts micro SD cards to MSATA SSD format using S682 chipset
  • Supports SATA Gen1 at 1.5 Gbps and Gen2 at 3.0 Gbps speeds
  • Achieves data rates of 150 MB/s and 300 MB/s respectively
  • Works with DOS, Windows 98 through 11, and Linux operating systems
  • Fits 50 mm MSATA slots in industrial PCs, tablets, and POS machines

Specifications

BrandLORDWORLD

Questions about this item

What real-world throughput will I see from the 3.0 Gbps SATA Gen2 link?

The adapter caps at 300 MB/s on SATA Gen2, so a fast microSD card will hit that ceiling while slower cards run at their own rated speed.

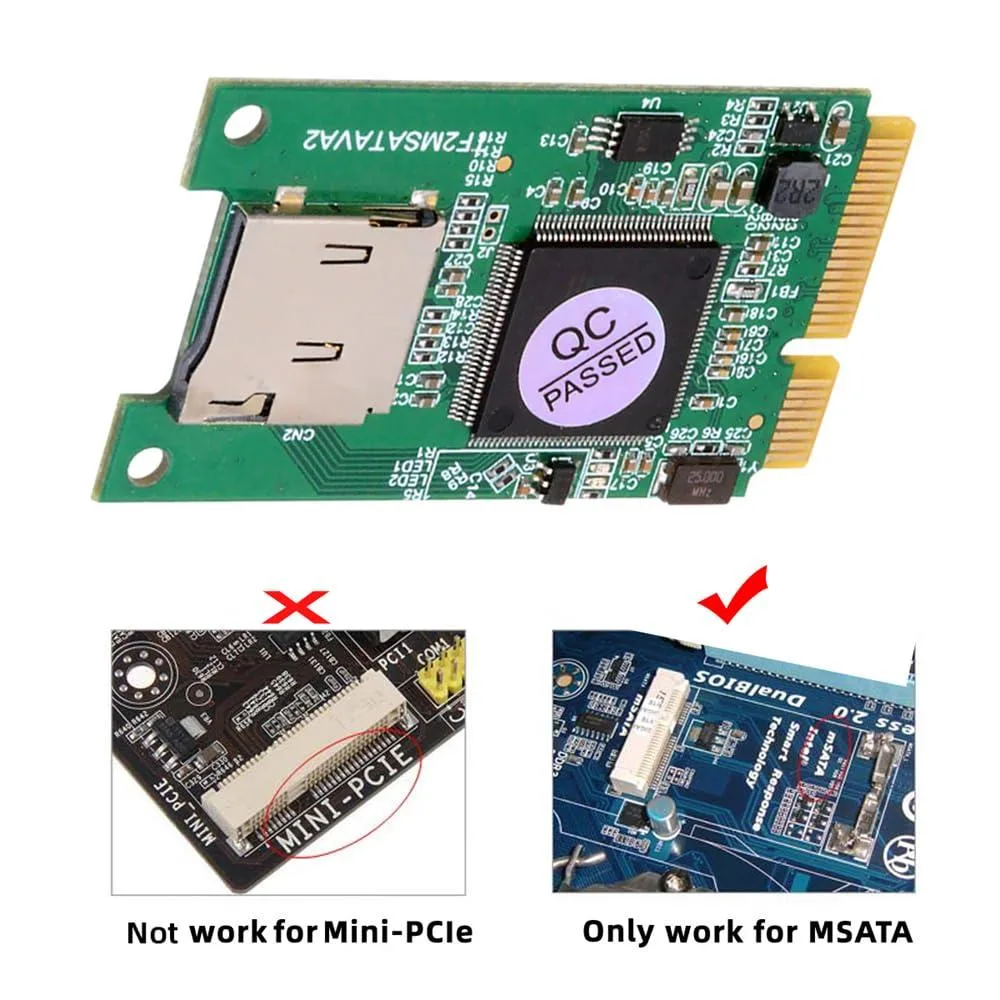

Does the MSATA connector work in a Mini PCIe slot?

No — the board is wired for SATA signals only and will not function in a Mini PCIe socket.

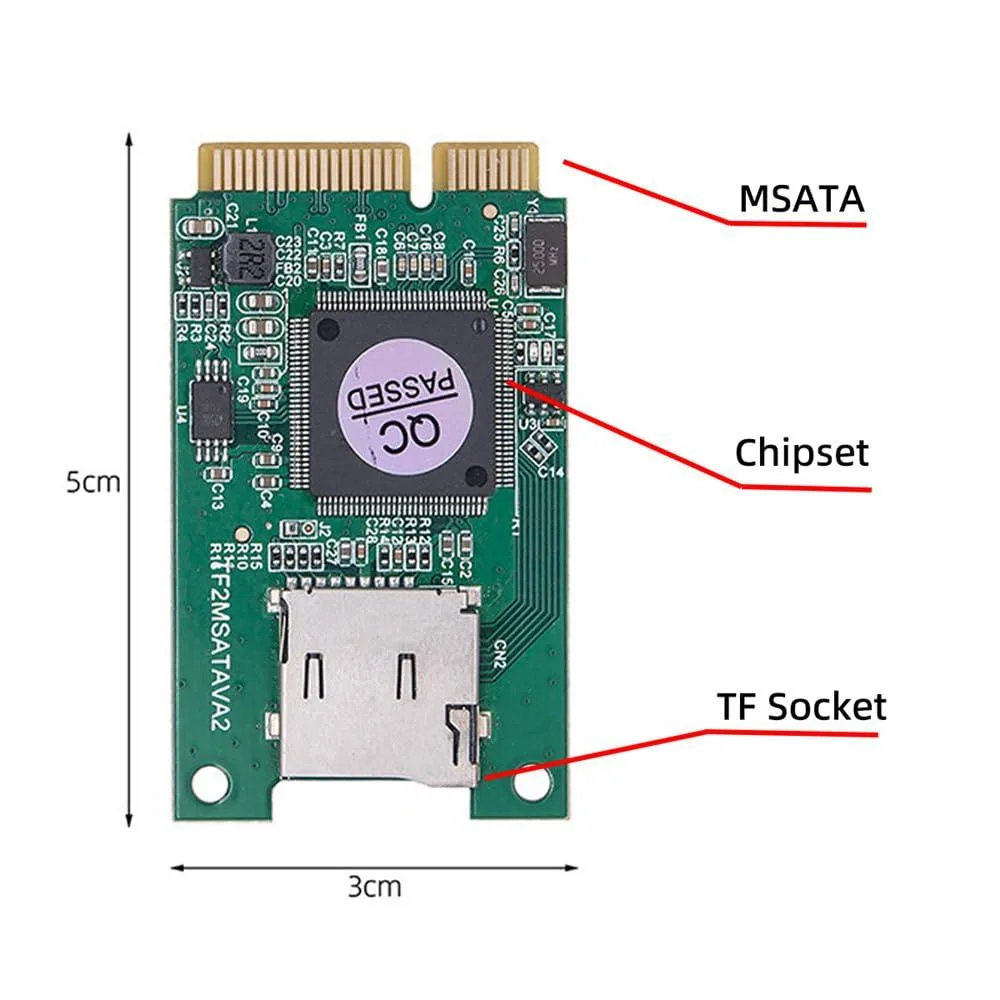

What length MSATA drive bay does the 50 mm board require?

It fits a standard 50 mm MSATA slot, the common size found in most laptops and industrial boards.
