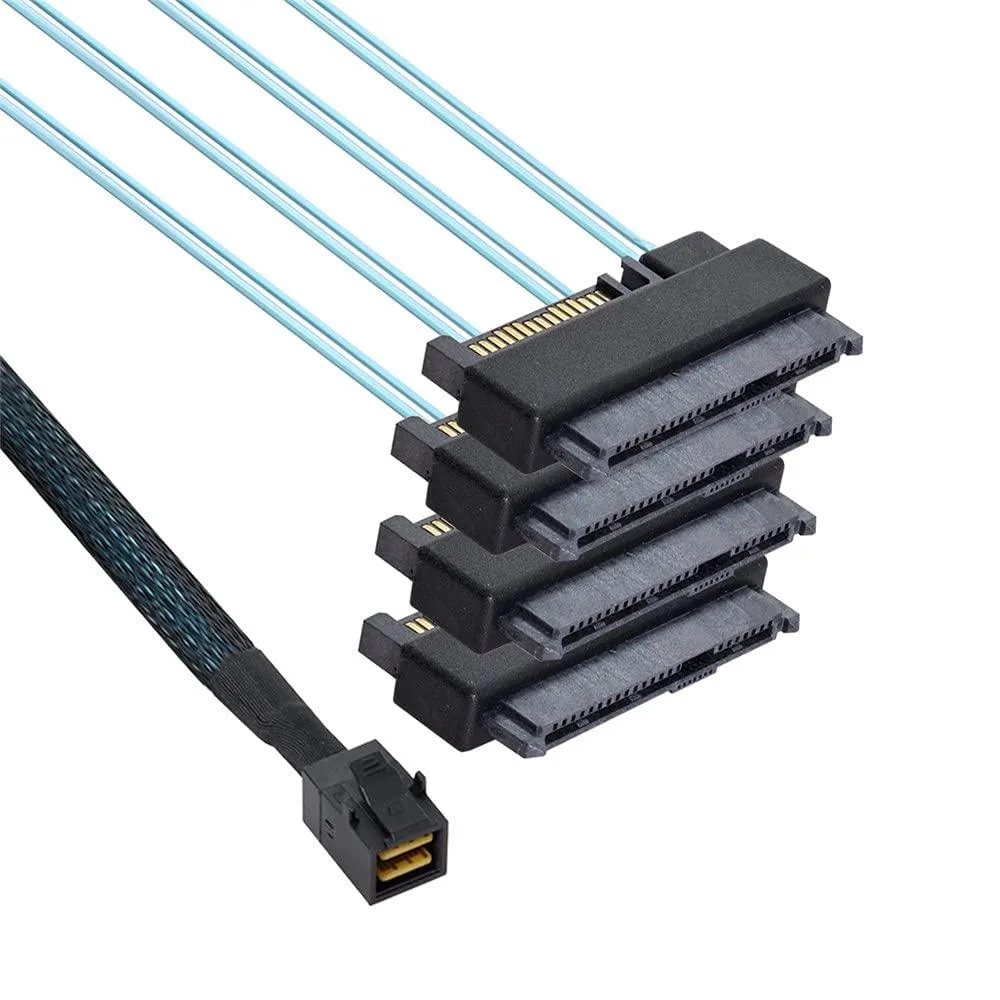

Internal Mini SAS SFF-8643 cable splitting to four SAS 29-pin connectors

LORDWORLD

LORDWORLD Mini SAS SFF-8643 to 4 SAS 29Pin SFF-8482 Cable

SKU CH-JW0N-VWX2H

Connects up to four SAS or SATA drives to a Mini SAS HD SFF-8643 controller at 6 Gbps

  • Connect four drives with one cable
  • 6 Gbps throughput via SAS 2.1 standard

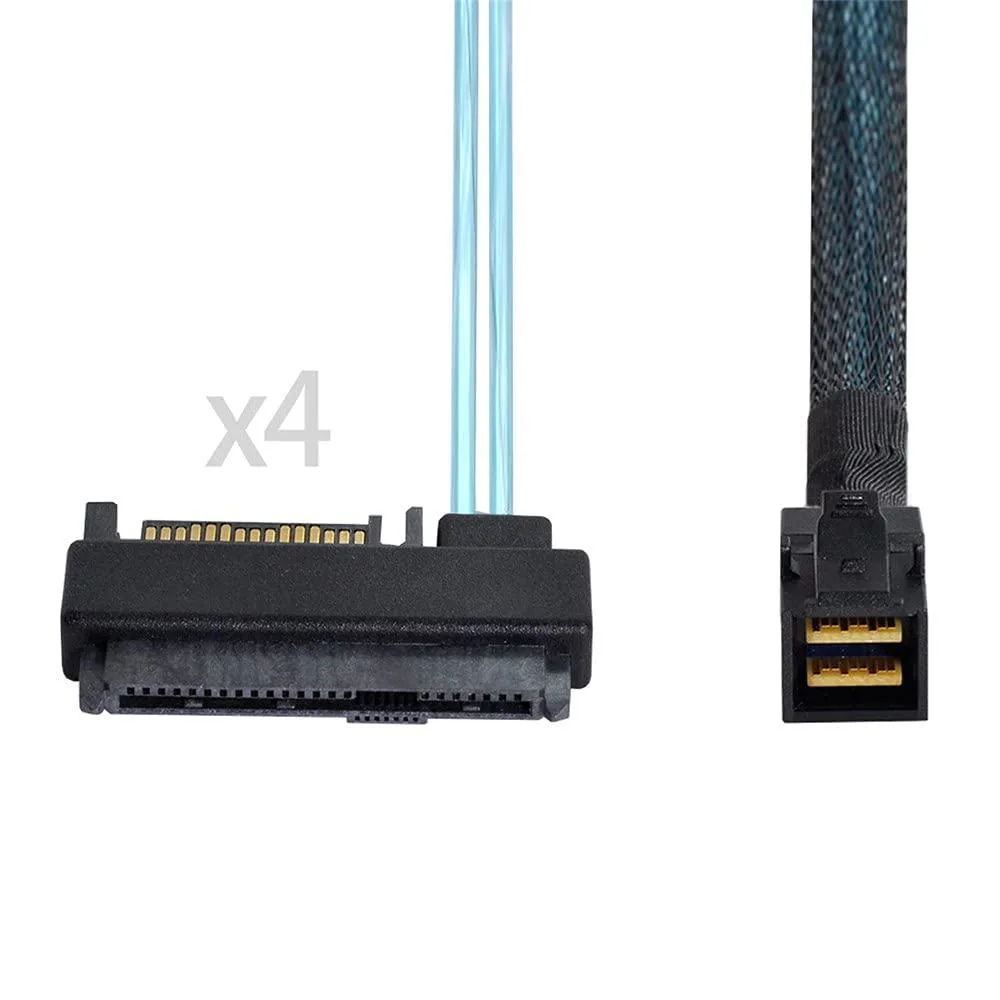

  • SFF-8643 host to four SFF-8482 targets
  • Supports both SAS and SATA drives
  • HD Mini-SAS copper construction for internal use

Mini SAS SFF-8643 breakout cable

This cable connects a single Mini SAS HD SFF-8643 host port to four SAS 29-pin SFF-8482 drive connectors. It is designed for system builders and server administrators who need to attach up to four SAS or SATA drives to a compatible RAID or HBA controller. The assembly follows the SAS 2.1 standard for 6 Gbps data rates.

Passive copper construction

The cable uses internal HD Mini-SAS copper wiring with no active components, so it adds no electrical noise and draws no auxiliary power. Thermals are limited to the minimal resistive loss of the conductors under normal 6 Gbps operation. No fan or cooling provision is required for the cable itself.

SFF-8643 host compatibility only

The host connector is a Mini SAS HD SFF-8643 interface; the cable will not function with PCI-E SFF-8643 controllers. Verify that your controller presents a true SAS 2.1 SFF-8643 port before purchase.

Highlights

  • Connect four drives with one cable
  • 6 Gbps throughput via SAS 2.1 standard
  • SFF-8643 host to four SFF-8482 targets
  • Supports both SAS and SATA drives
  • HD Mini-SAS copper construction for internal use

Specifications

BrandLORDWORLD

Questions about this item

How do I plug the Mini SAS HD SFF-8643 end into my RAID controller without bending the latch?

Align the keyed connector with the controller port, push straight in until the latch clicks, then secure the four SFF-8482 drive ends; forcing the latch sideways is the common mistake.

Which part of this LORDWORLD cable wears out first when drives are swapped repeatedly?

The SFF-8482 drive connectors see the most insertions; their spring contacts and latch tabs degrade before the fixed SFF-8643 host end.

At what sustained throughput does the SAS 2.1 rated link hit its ceiling?

The cable meets the 6Gb/s SAS 2.1 specification, so the bandwidth limit appears at 6Gb/s per lane under continuous load.
