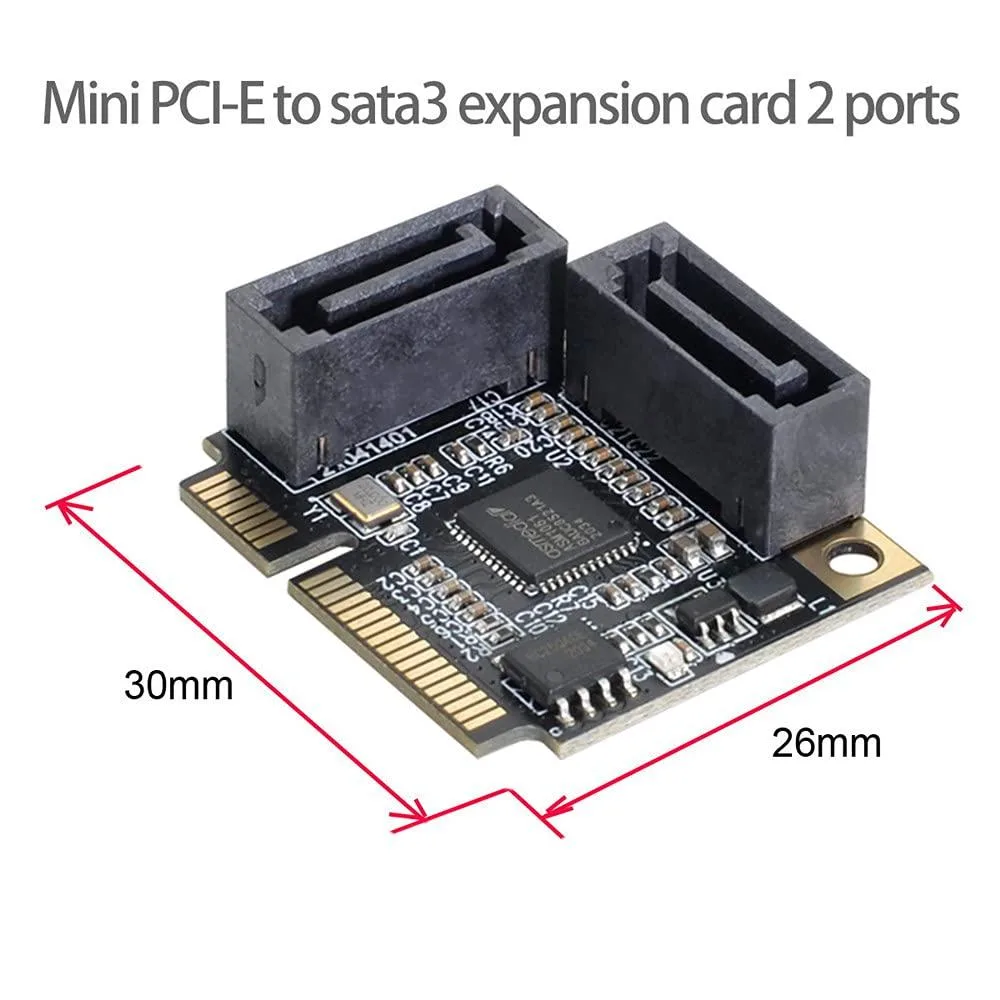

Small green circuit board with Mini PCI-E edge connector and two black SATA ports

LORDWORLD

LORDWORLD Mini PCI-E to SATA 3.0 Dual Port Adapter ASM1061

SKU CH-2RRE-BKRXE

Adds two SATA 3.0 ports via Mini PCI-E using the ASM1061 controller with 6.0 Gbps speeds, NCQ and hot-swap support

  • Adds two SATA 3.0 ports via Mini PCI-E slot
  • ASMedia ASM1061 controller enables 6.0 Gbps transfer rates
  • Native command queuing maintains SSD performance under heavy load
  • Hot-swap and hot-plug support simplifies drive changes
  • Partial and sleep power states reduce energy consumption

Add two SATA 3.0 ports via Mini PCI-E

The LORDWORLD adapter plugs into a spare Mini PCI-E slot and provides two SATA 3.0 connectors. It uses the ASMedia ASM1061 controller to deliver 6.0, 3.0 and 1.5 Gbps link speeds. Hot-plug and hot-swap are supported alongside NCQ for sustained performance under load.

Replace limited onboard SATA or add missing ports

Upgrade a system that has fewer SATA headers than drives you want to install. The card adds two full-speed ports without occupying a full-size PCIe slot. The jump is worth it when you need extra SSDs or hard drives but lack free motherboard connectors.

Fits any board with a free Mini PCI-E slot

The adapter requires an available Mini PCI-E slot; mSATA devices are not compatible. It draws power from the slot and exposes standard SATA data connectors for drives. Error reporting, recovery and partial or sleep power states help keep the storage subsystem stable.

Highlights

  • Adds two SATA 3.0 ports via Mini PCI-E slot
  • ASMedia ASM1061 controller enables 6.0 Gbps transfer rates
  • Native command queuing maintains SSD performance under heavy load
  • Hot-swap and hot-plug support simplifies drive changes
  • Partial and sleep power states reduce energy consumption

Specifications

BrandLORDWORLD

Questions about this item

Does this adapter fit a standard Mini PCI-E slot or an mSATA slot?

It fits a standard Mini PCI-E slot; mSATA slots are not supported.

What is the main step people miss when installing this card?

The card must be inserted into a Mini PCI-E slot that provides PCI Express signalling, not an mSATA-only slot, otherwise the ASM1061 controller will not be detected.

Will the SATA ports or the ASM1061 controller need firmware updates or replacement over time?

The ASM1061 controller does not require firmware updates; the SATA ports are passive connectors and only need replacement if physically damaged.
