Green circuit board with four black SATA ports and a mini PCI-E edge connector

LORDWORLD

LORDWORLD Mini PCI-E to SATA 3.0 4-Port Card ASM1064

SKU CH-X2A7-0BB3Z

Adds four SATA 3.0 ports via Mini PCI-E with ASM1064 controller for 6.0 Gbps SSD speeds

  • Add four SATA 3.0 ports via mini PCI-E slot
  • ASM1064 controller delivers 6.0 Gbps, 3.0 Gbps and 1.5 Gbps link speeds
  • Hot-swap and hot-plug support lets you change drives without powering down
  • NCQ support keeps performance steady under heavy I/O load
  • Partial and sleep power states reduce energy use when drives are idle

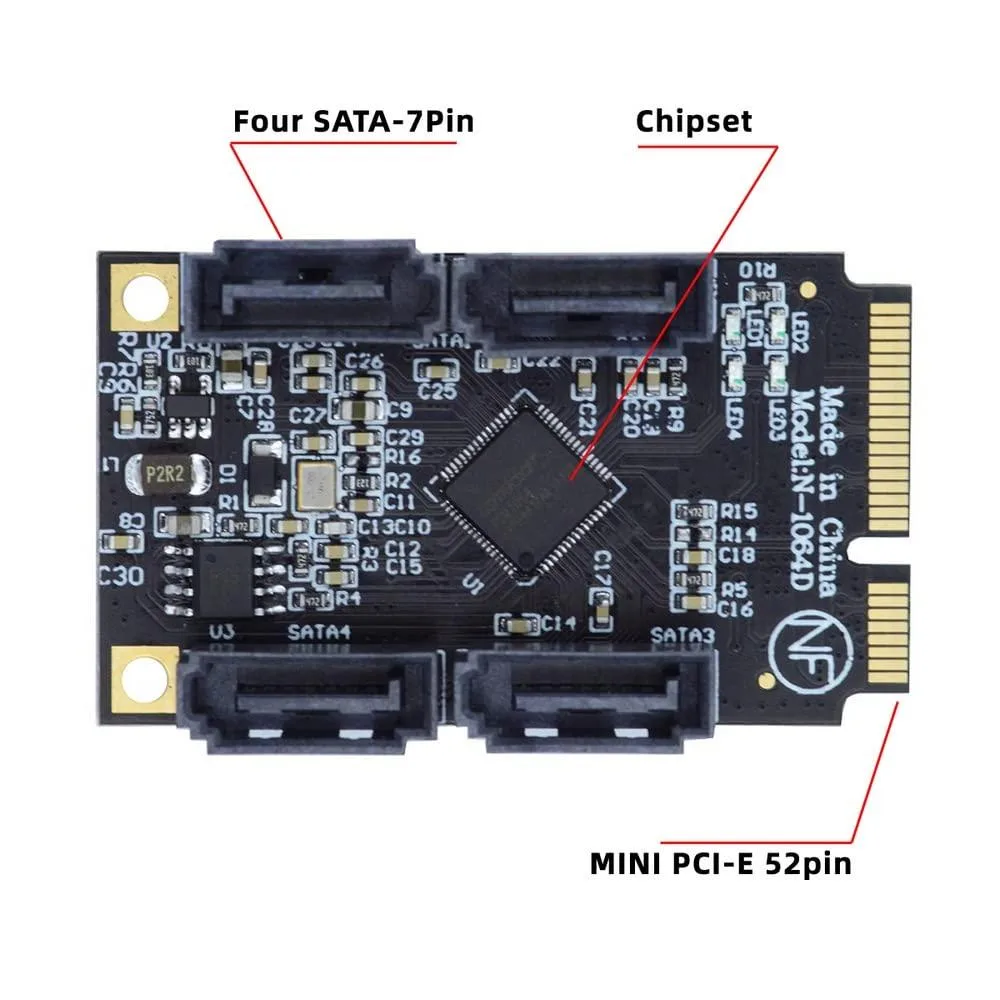

Mini PCI-E SATA 3.0 4-port adapter

This LORDWORLD card adds four SATA 3.0 ports through a single Mini PCI-E slot. It uses the ASMedia ASM1064 controller to connect SSDs or hard drives as system or data volumes. The board fits industrial PCs, embedded systems or small-form-factor builds that lack native SATA connectors. It is not suited for mSATA drives or full-size PCI-E slots.

Hot-swap and power-management features

Hot-plug and hot-swap support let you insert or remove drives without powering down the host. Partial and sleep power states reduce consumption when drives are idle. Native command queuing maintains throughput and stability under heavy I/O loads. Error reporting, recovery and correction functions protect data integrity during transfers.

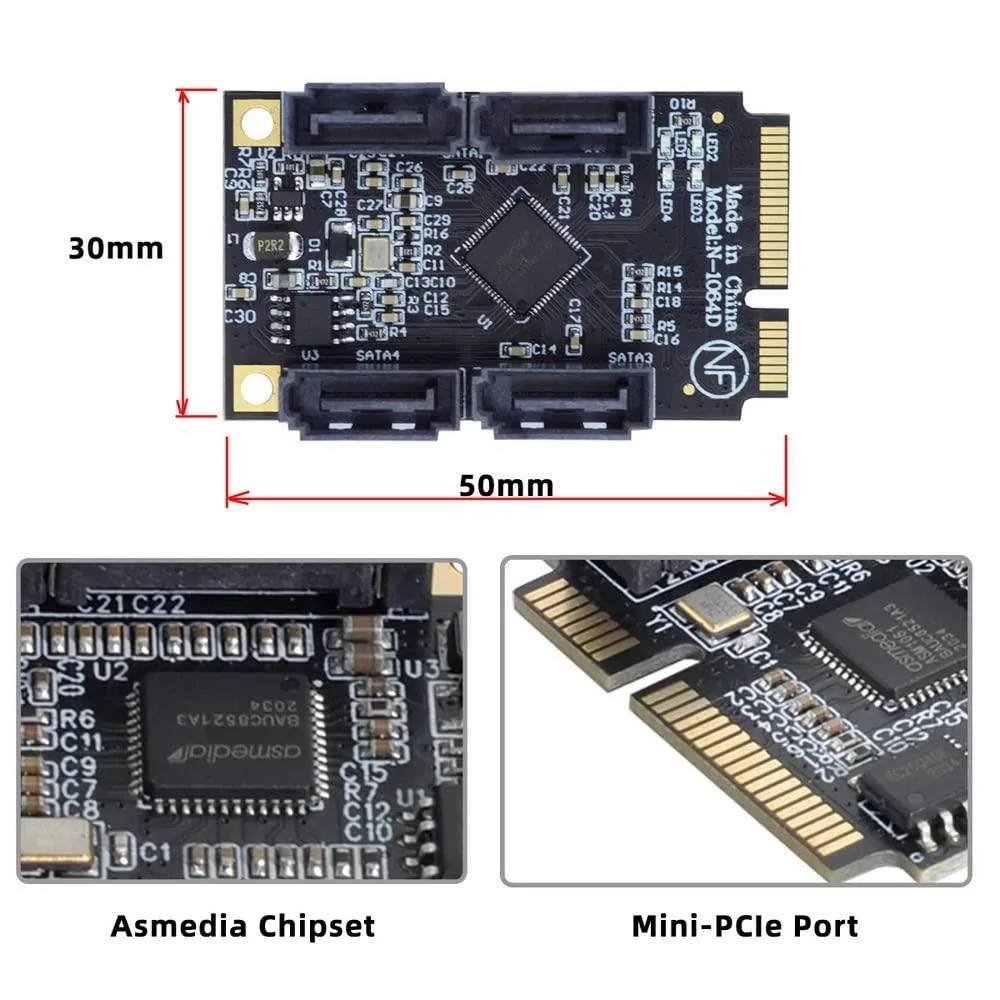

ASM1064 controller with Gen 3i SATA link

The ASM1064 provides four 6.0 Gbps SATA links that also negotiate at 3.0 Gbps and 1.5 Gbps. Gen1i, Gen1x, Gen2i, Gen2m, Gen2x and Gen3i signalling modes are all supported. This single specification determines whether the card matches the host slot and drive speed requirements.

Highlights

  • Add four SATA 3.0 ports via mini PCI-E slot
  • ASM1064 controller delivers 6.0 Gbps, 3.0 Gbps and 1.5 Gbps link speeds
  • Hot-swap and hot-plug support lets you change drives without powering down
  • NCQ support keeps performance steady under heavy I/O load
  • Partial and sleep power states reduce energy use when drives are idle

Specifications

BrandLORDWORLD

Questions about this item

Will the ASM1064 controller need a firmware update later?

The card uses the ASMedia ASM1064 controller with built-in error reporting, recovery and correction; no firmware maintenance is mentioned.

Does the single Mini PCI-E lane cap throughput before the four SATA 3.0 ports?

Each SATA 3.0 port supports up to 6.0 Gbps, 3.0 Gbps and 1.5 Gbps rates; the Mini PCI-E slot provides the host link.

How much heat or power does the card add when all four SSDs run all day?

The ASM1064 supports partial and sleep power management states to limit heat and power during continuous operation.
