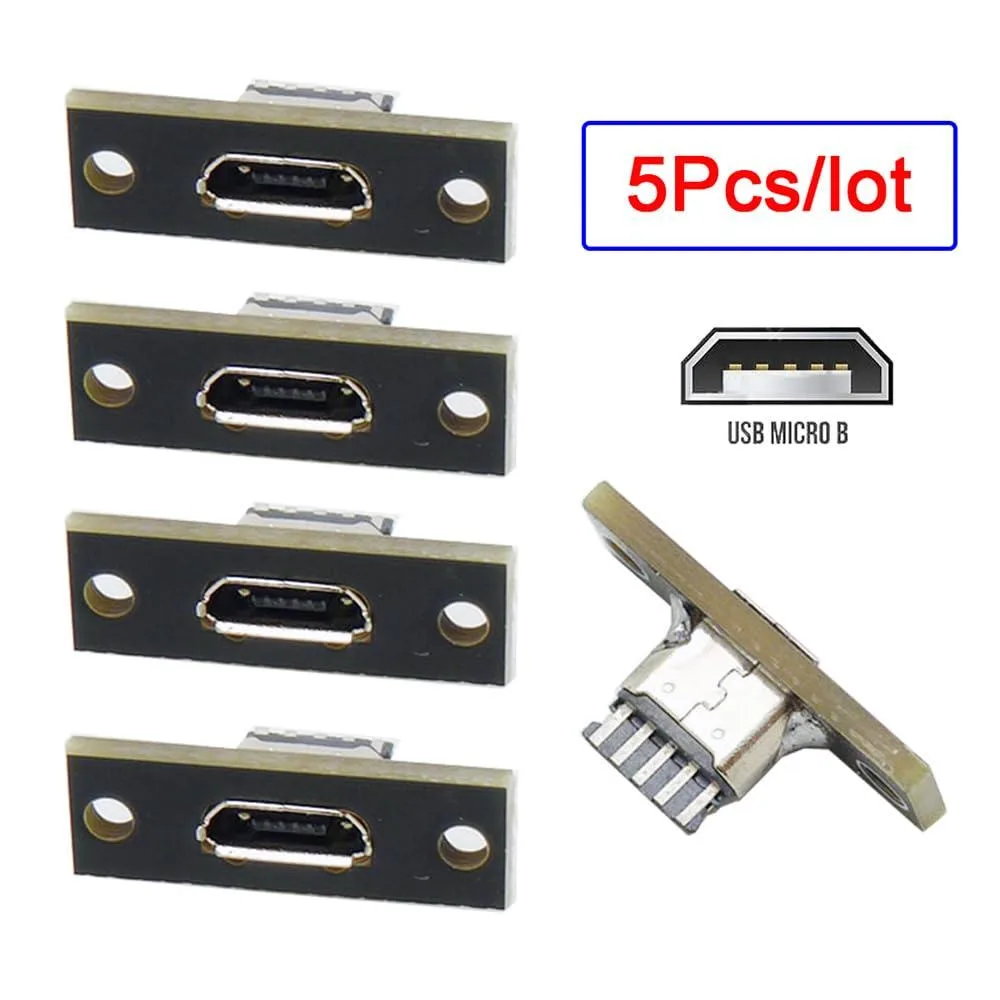

Five small rectangular Micro-USB 2.0 female panel-mount sockets with PCB tabs

LORDWORLD

LORDWORLD Micro-USB 2.0 Female Panel Mount Connector 5pcs

SKU CH-Y9JF-7VV40

Panel-mount Micro-USB 2.0 female sockets for cabinet builds, 480 Mbps data and 5 V 2 A power, pack of five

  • Panel-mount design extends Micro-USB connections to cabinet devices
  • Up to 480 Mbps data throughput with USB 2.0 host and device
  • Up to DC 5V 2A power delivery for charging while transferring data
  • Compatible with mobile devices, laptops, tablets and Micro-USB peripherals
  • Five connectors included per package

Micro-USB 2.0 panel connector for DIY builds

This five-piece set provides a Micro-USB 2.0 Type-B female socket on a small PCB for panel mounting. It lets you bring a Micro-USB connection to the outside of an enclosure so devices can plug in directly.

Replaces a loose cable or internal header

When a trailing Micro-USB cable is awkward or risks damage, this mount gives a fixed port with up to 480 Mbps data and DC 5 V 2 A power. The upgrade is worth it whenever a clean, permanent panel interface is needed for frequent connect and disconnect cycles.

Fits a panel cut-out and a Micro-USB cable

Each connector solder-mounts to its included board and then secures to the panel, freeing internal space otherwise taken by a cable strain relief. It works with any Micro-USB 2.0 host or peripheral, handling data and power simultaneously. Not suited for USB-C or USB 3.0 applications.

Highlights

  • Panel-mount design extends Micro-USB connections to cabinet devices
  • Up to 480 Mbps data throughput with USB 2.0 host and device
  • Up to DC 5V 2A power delivery for charging while transferring data
  • Compatible with mobile devices, laptops, tablets and Micro-USB peripherals
  • Five connectors included per package

Specifications

BrandLORDWORLD

Questions about this item

What panel cut-out size does this micro-USB female connector need?

The connector uses a standard panel-mount footprint; drill the cut-out to match the flange dimensions so the 5-pin socket sits flush with the enclosure.

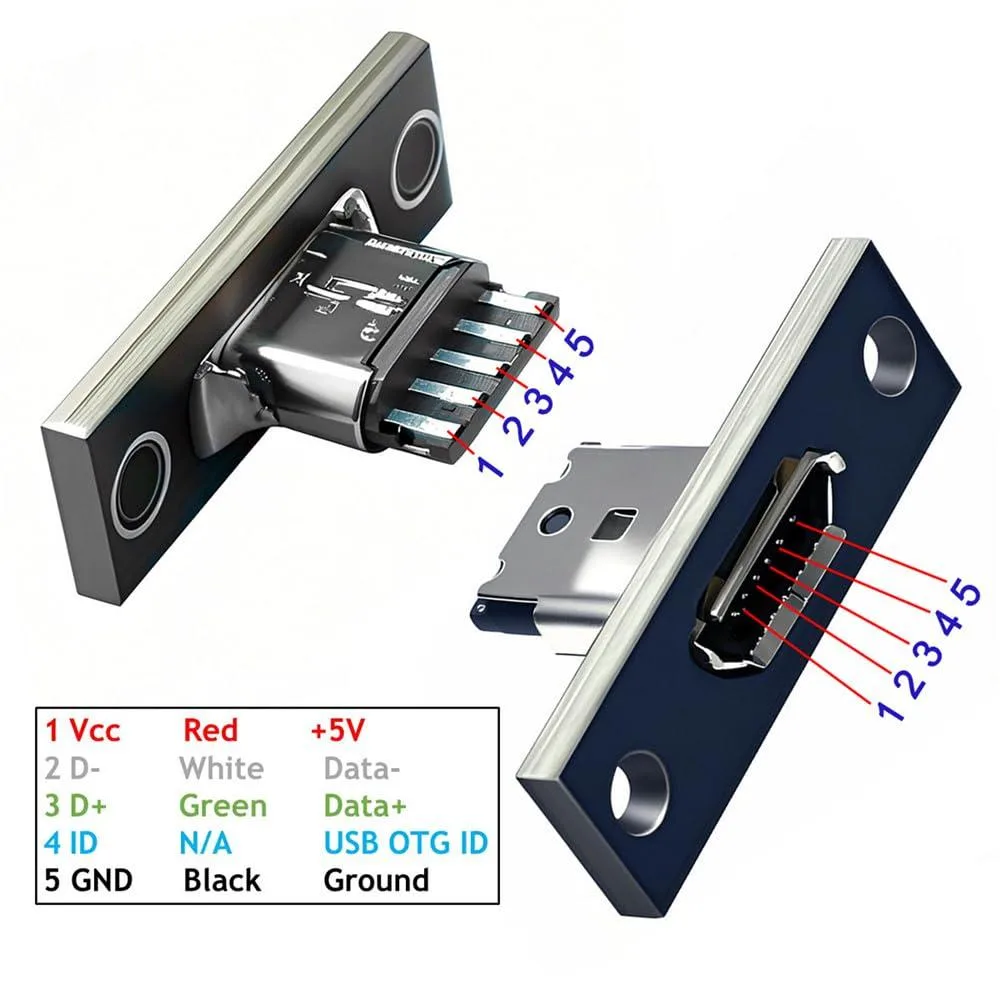

Which solder pads on the PCB correspond to the 5-pin USB 2.0 pinout?

The board labels VCC, D-, D+, ID and GND in the standard micro-USB 2.0 order; solder each wire to its matching pad before securing the flange.

How often should the panel-mount micro-USB socket be inspected or replaced?

Check the solder joints and contact springs after repeated insertions; replace the unit if the 480 Mbps data link or 5 V 2 A power path becomes intermittent.
