Green PCB adapter board with gold M.2 connectors and metal bracket

LORDWORLD

LORDWORLD M.2 A+E Key 2230 to NVME M-Key Adapter

SKU CH-03Z8-2KA1K

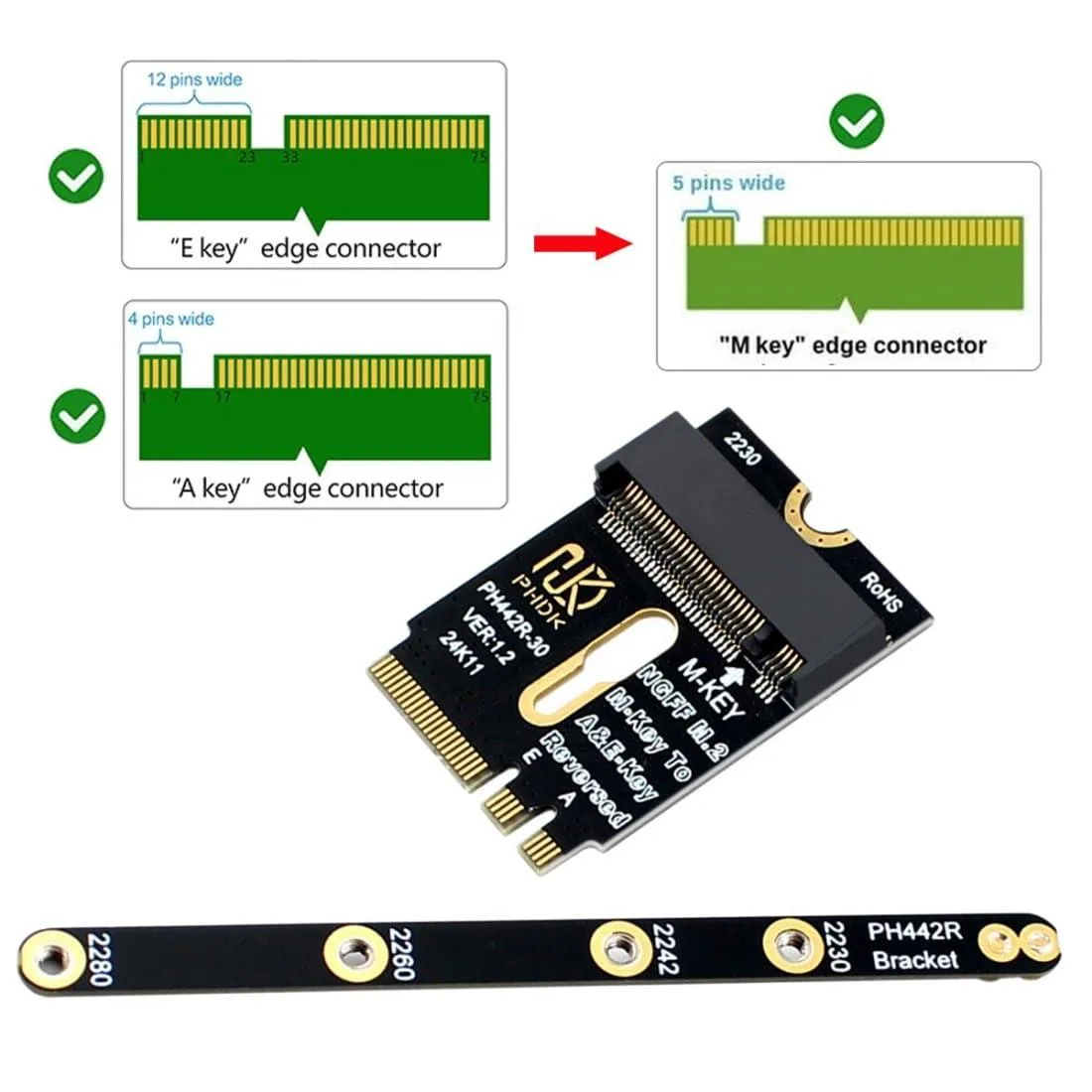

Converts an M.2 A+E key 2230 slot to an NVME M-key connector supporting PCI-E 4.0 at 64Gbps for 2230, 2242, 2260 and 2280 drives

  • Adds NVME storage via A+E key slot
  • PCI-E 4.0 up to 64Gbps throughput
  • Fits 2230 2242 2260 2280 NVME drives
  • Windows 8 10 11 compatible out of box
  • Riser bracket screwdriver and screws included

Adapter Purpose & Audience

This LORDWORLD adapter converts an M.2 A+E key 2230 slot into an NVME M-key connector for PCI-E 4.0 SSDs. It suits owners of laptops or compact boards with only a wireless-module slot who want to add high-speed storage.

Installation Notes

The package supplies a riser card, bracket, screwdriver and two screws; follow the supplied diagram for the correct sequence. A common mistake is inserting a SATA B+M-key drive or a PCIe AHCI device, which the adapter does not support.

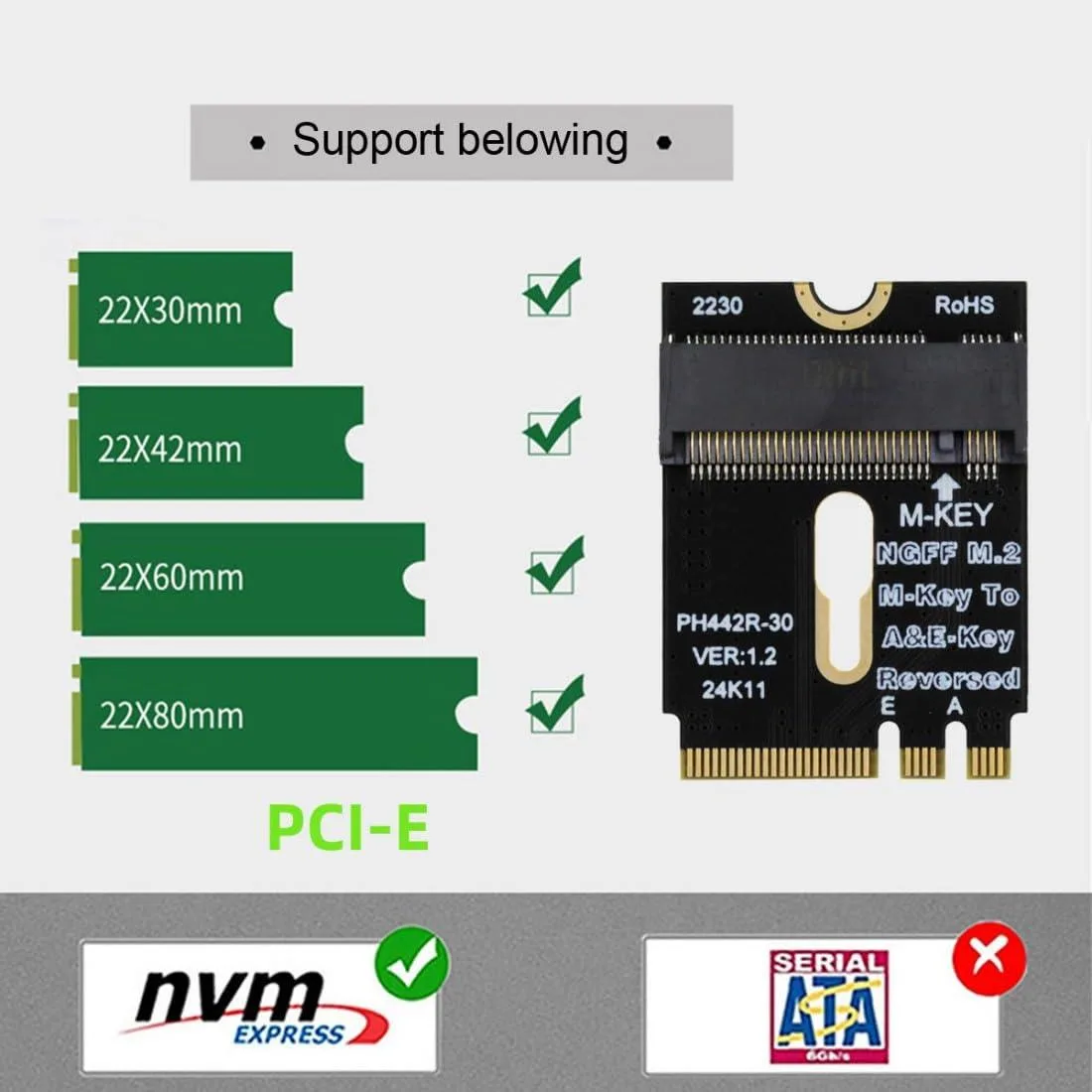

Supported Drive Lengths

Accepts NVME M-key SSDs in 2230, 2242, 2260 and 2280 form factors at PCI-E 4.0 speeds up to 64Gbps. It will not work with mSATA drives, Wi-Fi cards, capture cards or any non-M.2 storage.

Highlights

  • Adds NVME storage via A+E key slot
  • PCI-E 4.0 up to 64Gbps throughput
  • Fits 2230 2242 2260 2280 NVME drives
  • Windows 8 10 11 compatible out of box
  • Riser bracket screwdriver and screws included

Specifications

BrandLORDWORLD

Questions about this item

How do I confirm the adapter is running at PCI-E 4.0 speeds after installation?

Check the drive link speed in Device Manager or BIOS; it should report PCI-E 4.0 x4 for a 64Gbps capable NVME SSD.

What components are included and do I need to buy an SSD separately?

The box contains a riser card, bracket, screwdriver and two screws; an NVME M-key SSD must be purchased separately.

Which M.2 lengths does this adapter accept for my NVME drive?

The adapter supports 2230, 2242, 2260 and 2280 length NVME M-key SSDs.
