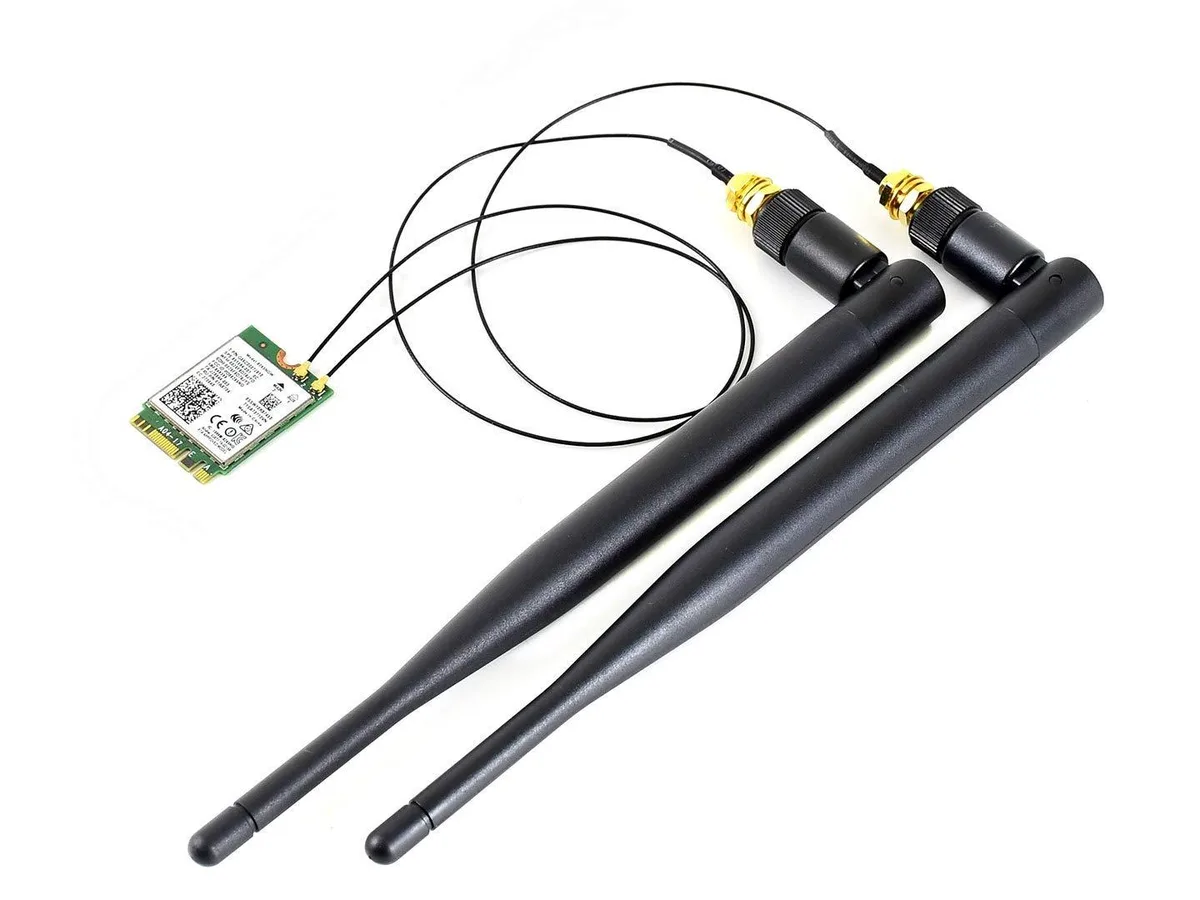

Small green circuit board with M.2 connector and two IPEX antenna ports

LORDWORLD

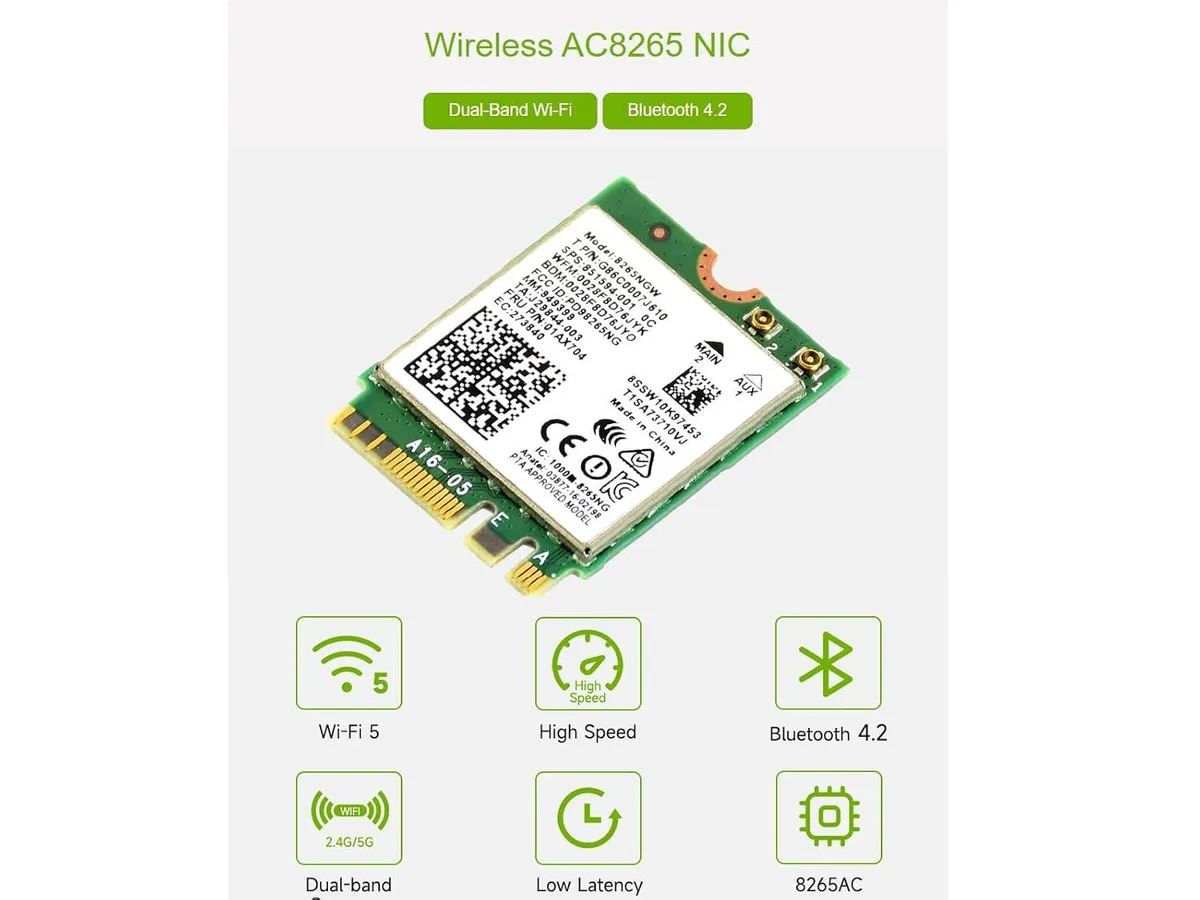

LORDWORLD Intel 8265AC WiFi Bluetooth 4.2 Module for Jetson Nano

SKU CH-R4T7-7PZX8

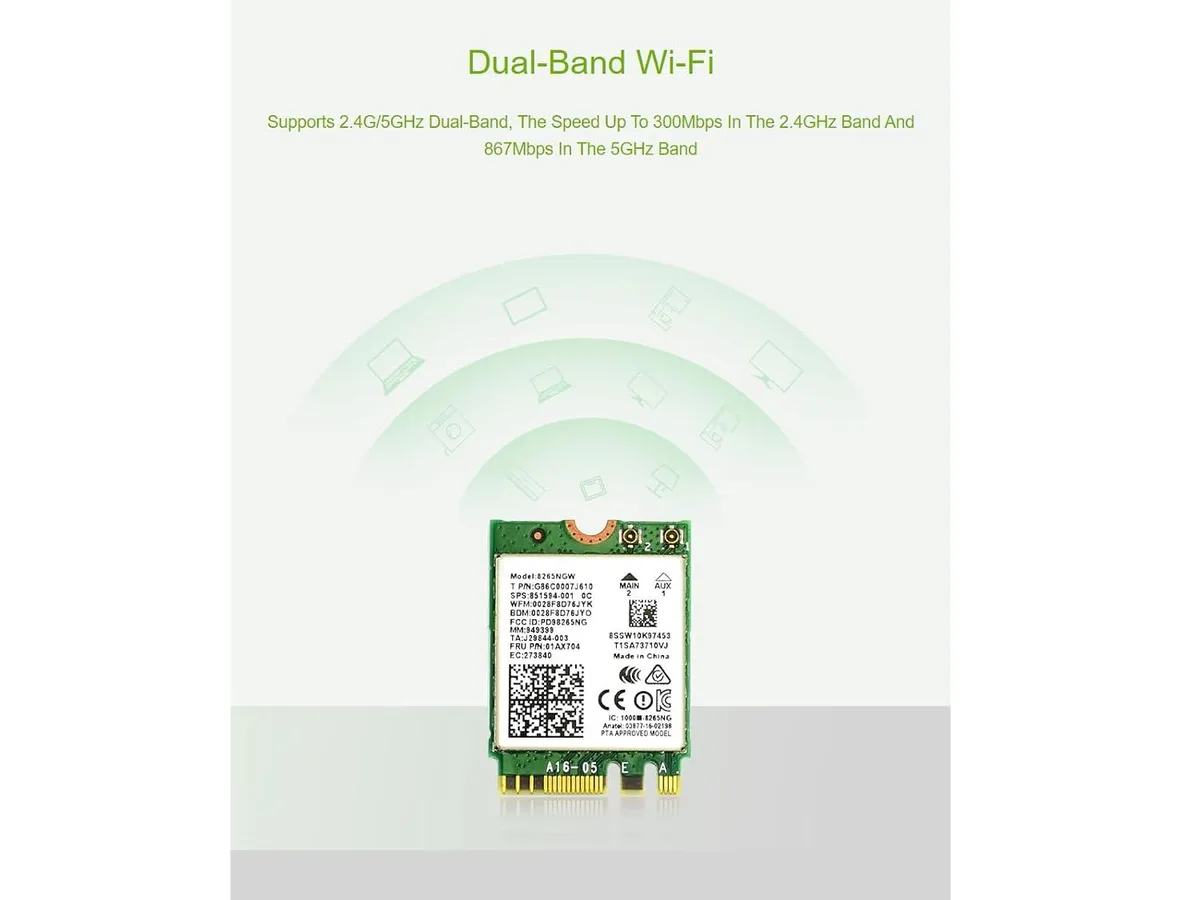

Dual-band Wi-Fi 300/867 Mbps and Bluetooth 4.2 on an Intel 8265AC M.2 module for Jetson Nano

  • Dual-band Wi-Fi for flexible network access
  • Intel 8265AC chip delivers 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz
  • Bluetooth 4.2 enables wireless peripheral connections
  • NGFF M.2 interface fits Jetson Nano developer kit
  • Compact 22 mm × 30 mm × 2.4 mm module suits space-constrained builds

Wireless NIC for Jetson Nano

This LORDWORLD module adds dual-band Wi-Fi and Bluetooth 4.2 to the Jetson Nano developer kit. It uses the Intel 8265AC chip and connects through an NGFF M.2 slot. The board measures 22mm × 30mm × 2.4mm and is aimed at makers who need wireless connectivity for edge-computing projects.

Thermals and power in normal use

The module draws power directly from the M.2 interface and operates without active cooling. Passive heat dissipation across the 22mm × 30mm PCB keeps temperatures stable during typical wireless workloads. No fan or heatsink is required, so acoustic output remains at zero.

Build integration needs

An IPEX antenna connector is provided, so external antennas must be sourced separately. The module fits any M.2 NGFF keyed slot wired for PCIe and USB signals. Supported operating systems include Linux and Windows 10/8.1/8/7, freeing the developer to choose the software stack.

Highlights

  • Dual-band Wi-Fi for flexible network access
  • Intel 8265AC chip delivers 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz
  • Bluetooth 4.2 enables wireless peripheral connections
  • NGFF M.2 interface fits Jetson Nano developer kit
  • Compact 22 mm × 30 mm × 2.4 mm module suits space-constrained builds

Specifications

BrandLORDWORLD

Questions about this item

How is the Intel 8265AC module installed on the Jetson Nano M.2 slot and what step is often missed?

Insert the module into the NGFF M.2 slot at an angle, secure it with the mounting screw, then attach the IPEX antennas — the step often missed is connecting both antenna cables before closing the case.

What maintenance or replacement will the IPEX antenna connectors need over time?

The IPEX connectors are rated for limited mating cycles; if Wi-Fi range drops, replace the pigtail cables or antennas rather than the module itself.

What limit appears first during sustained 867 Mbps 5 GHz transfers on this module?

Thermal throttling of the Intel 8265AC chip typically appears first, reducing throughput before the 802.11ac link saturates.
