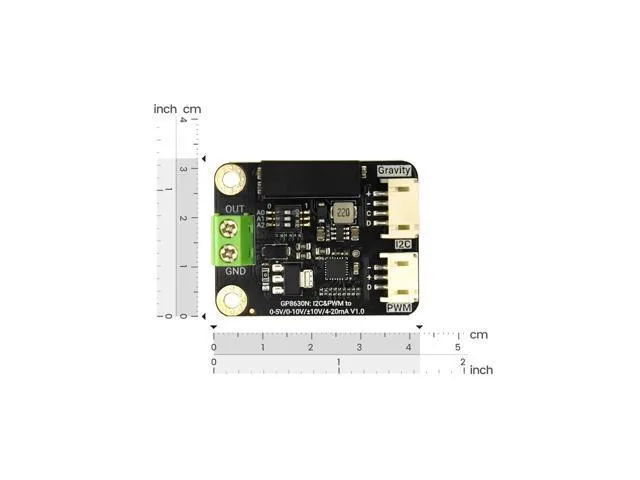

Green circuit board with gold pins and black connectors

LORDWORLD

LORDWORLD GP8630N 16-bit DAC Module ±10V 4-20mA Factory Integration

SKU CH-4E2G-H50EM

16-bit DAC module converts I2C or PWM signals to ±10V and 4-20mA outputs for industrial control

  • 16-bit resolution enables precise analog control
  • ±10V symmetrical output supports bidirectional voltage drive
  • 4-20mA current loop suits industrial sensor interfaces
  • Dual I2C and PWM input offers flexible signal acceptance
  • Low full-scale error of ±.2% ensures accurate signal generation

GP8630N DAC for industrial signal generation

The GP8630N module converts I2C or PWM digital signals into precise analog voltage or current outputs. It targets engineers integrating bidirectional control or standard current loops into robotics and process-automation systems. The 16-bit resolution supports fine-grained adjustments across all output modes.

I2C and PWM input constraints

The dual-interface design accepts either I2C commands or PWM duty-cycle signals, but not both simultaneously. I2C speed is limited by the GP8630N chip specification, and PWM frequency must stay within the converter's sampling window to avoid distortion. No other digital protocols are supported.

±10V and 4-20mA output headroom

The module delivers symmetrical ±10V for bidirectional actuators and 4-20mA for industrial sensor loops, with a full-scale error of .2%. It also provides 0-5V and 0-10V unipolar ranges. Headroom ends at the stated voltage and current limits; loads exceeding these ranges require external buffering.

Highlights

  • 16-bit resolution enables precise analog control
  • ±10V symmetrical output supports bidirectional voltage drive
  • 4-20mA current loop suits industrial sensor interfaces
  • Dual I2C and PWM input offers flexible signal acceptance
  • Low full-scale error of ±.2% ensures accurate signal generation

Specifications

BrandLORDWORLD

Questions about this item

Which output mode should I select for my application?

Choose ±10V for bidirectional control, 0-5V or 0-10V for standard voltage signals, or 4-20mA for industrial current-loop sensors.

What does 16-bit resolution deliver in practice?

It provides high-precision conversion with a low full-scale error of ±0.2% across all supported output ranges.

How do the I2C and PWM interfaces limit the output?

Both interfaces accept digital commands to set the analog output; the module converts them into the selected voltage or current range without altering the 16-bit resolution or ±0.2% accuracy.
