Green circuit board with four slimline SFF-8654 connectors and gold PCIe edge fingers

LORDWORLD

LORDWORLD Four Slimline SFF-8654 4X NVME Raid Card

SKU CH-SPNP-HZJ6R

Connects four NVME drives via Slimline SFF-8654 4X ports for PCIe 3.0 and 4.0 systems, requiring motherboard bifurcation and software RAID

  • Four Slimline SFF-8654 4X ports run four NVME drives simultaneously
  • Virtual RAID 0 under Windows 10 or third-party software without hardware RAID
  • Requires motherboard with bifurcated PCI-E lanes for multi-drive detection
  • Multiple high-power DC modules deliver sustained stable power
  • PCIe 3.0 and 4.0 compatible for full-speed operation

Four Slimline SFF-8654 4X NVME Raid Card

This LORDWORLD adapter connects up to four NVMe drives through a single PCIe slot using SFF-8654 connectors. It targets builders adding high-density storage to workstations or servers that can bifurcate PCIe lanes. The card carries no hardware RAID controller, so redundancy or striping must be handled by Windows 10 storage spaces or third-party software.

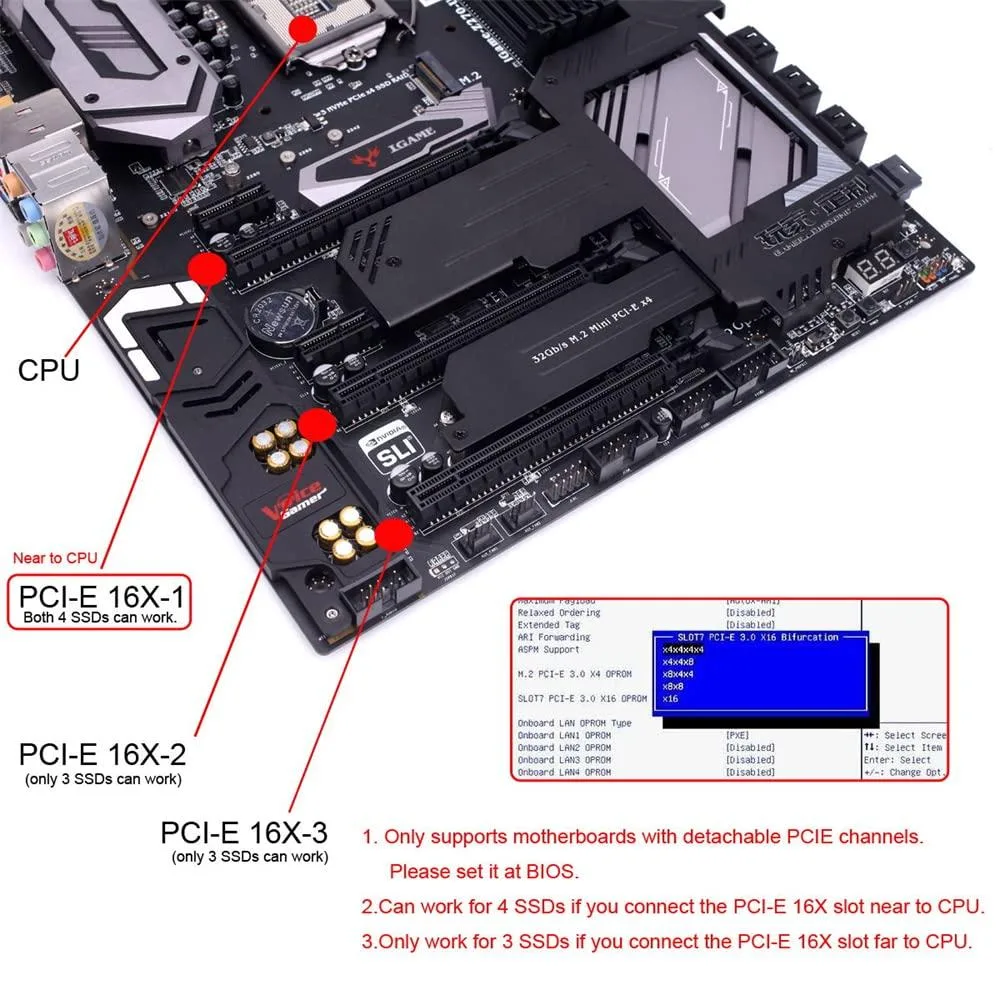

PCIe 3.0 4.0 bifurcation requirement

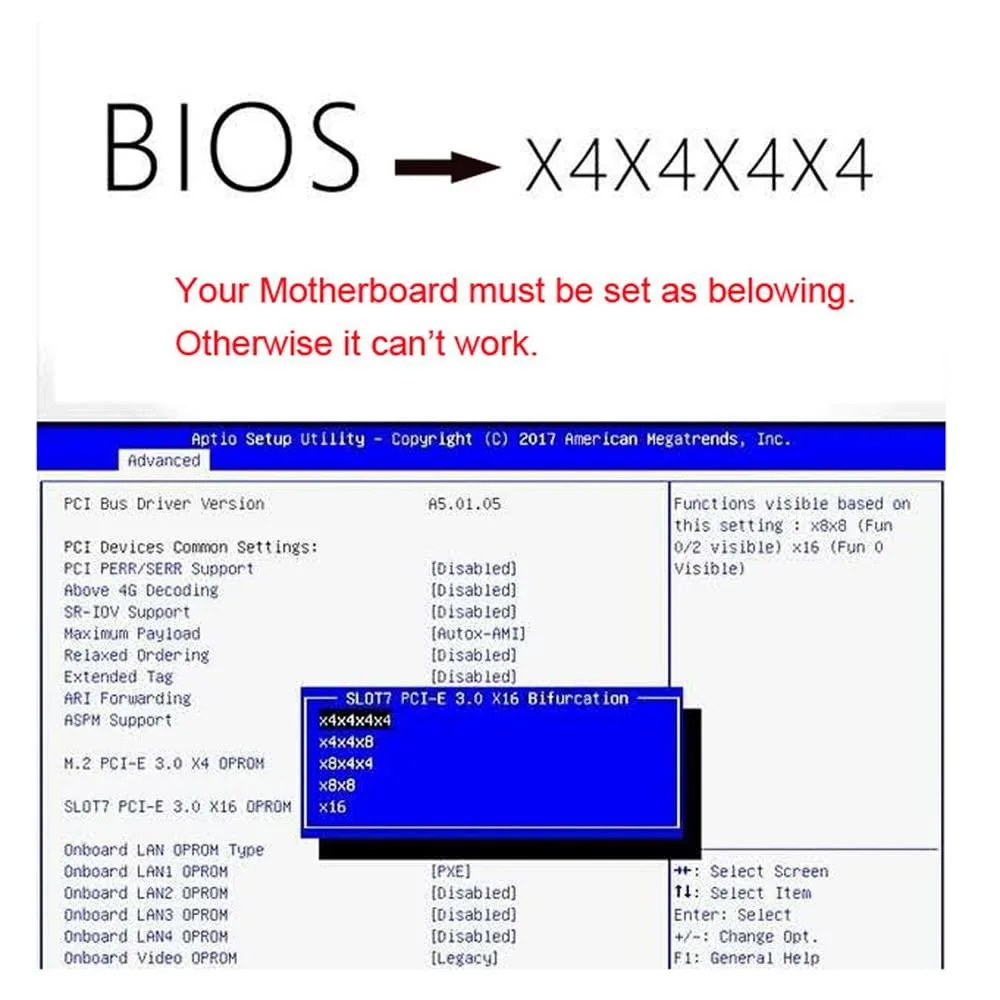

The board only functions on motherboards that expose detachable PCIe channels; without lane splitting the host sees a single drive. Each attached SSD runs at the speed negotiated by the slot, limited to the PCIe 3.0 or 4.0 capability of the platform. No onboard bridge or switch is present, so total bandwidth equals the raw lane allocation from the CPU or chipset.

Four-drive capacity with onboard power regulation

Four Slimline ports allow four NVMe devices to operate simultaneously at full link width. Multiple high-power DC modules on the card deliver stable current to all slots under sustained load. The design fits standard chassis layouts that accept four PCIe add-in cards, but systems lacking PCIe bifurcation cannot address more than one drive.

Highlights

  • Four Slimline SFF-8654 4X ports run four NVME drives simultaneously
  • Virtual RAID 0 under Windows 10 or third-party software without hardware RAID
  • Requires motherboard with bifurcated PCI-E lanes for multi-drive detection
  • Multiple high-power DC modules deliver sustained stable power
  • PCIe 3.0 and 4.0 compatible for full-speed operation

Specifications

BrandLORDWORLD

Questions about this item

How do I pick between the four Slimline SFF-8654 4X ports when installing NVME drives?

Each of the four ports accepts one NVME drive, so populate as many ports as you have drives; all four can run at full speed simultaneously.

What does the PCI Express 3.0 4.0 label mean for actual NVME throughput?

The adapter passes the motherboard's PCIe 3.0 or 4.0 lanes straight to each drive, so each NVME device operates at the speed of the slot it is plugged into.

How does the SFF-8654 4X interface limit real-world NVME performance?

Each 4X connector carries four PCIe lanes, matching a standard x4 NVME drive, so the interface itself does not cap performance beyond the motherboard's lane allocation.
