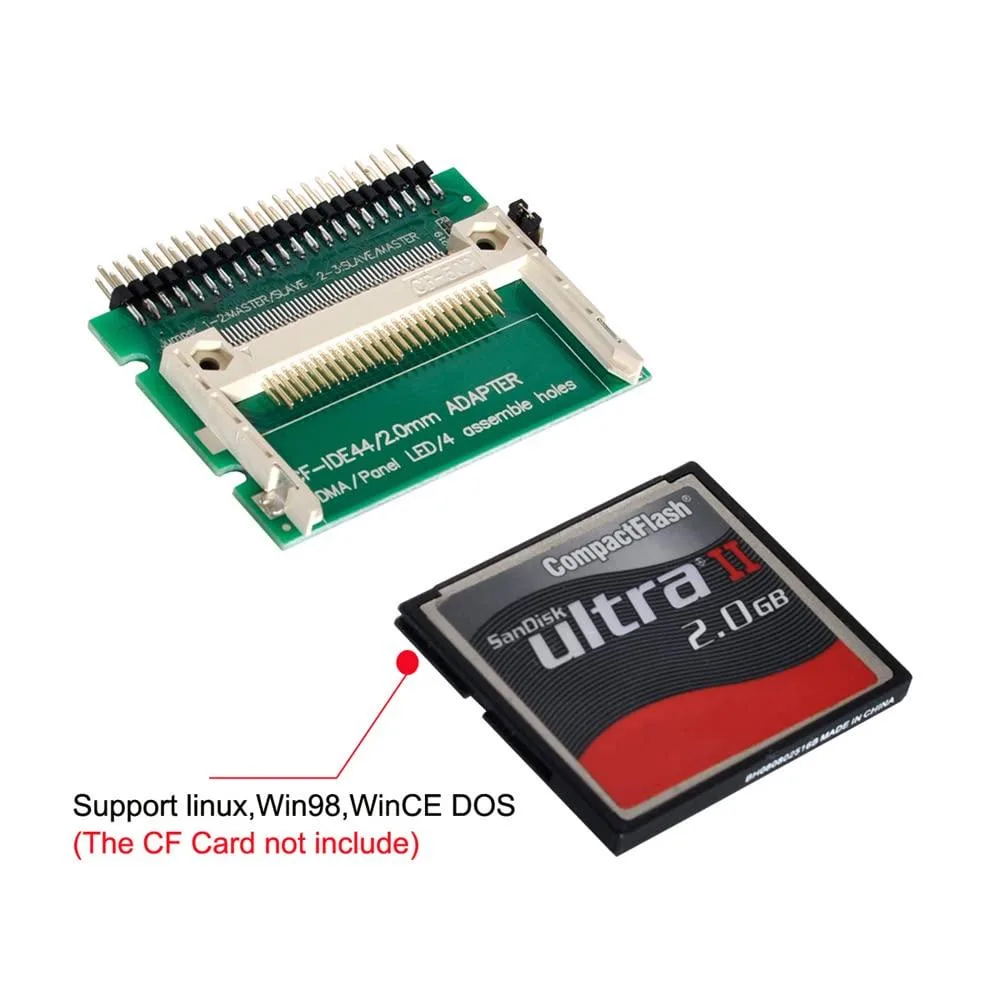

Green circuit board with 44-pin IDE connector and CompactFlash slot

LORDWORLD

LORDWORLD CF to 2.5" 44-Pin IDE Adapter

SKU CH-F5E6-NVMXP

Adapts a CompactFlash card to a 2.5 inch 44-pin IDE slot for laptops or mini-ITX boards

  • Replace a 2.5" IDE hard drive with a CompactFlash card for solid-state speed
  • Supports Type I, Type II and Microdrive cards for broad compatibility
  • Jumper-selectable master or slave setting simplifies installation
  • Operates in true IDE mode with UDMA support for bootable drives
  • Male 44-pin connector requires careful orientation check before purchase

CF-to-IDE adapter for 2.5-inch bays

This adapter lets you install a CompactFlash card in place of a 2.5-inch IDE hard drive. It suits laptops or mini-ITX boards that still use a 44-pin IDE interface. The card then functions as a solid-state boot drive. No other drive types are supported.

UDMA speed depends on host BIOS and card

The adapter operates in True IDE mode and can run in UDMA mode, but only when both the notebook BIOS and the CF card support it. Without that support the link falls back to slower PIO transfers. Type I, Type II and Microdrive cards are all accepted. Jumper pins select master or slave configuration.

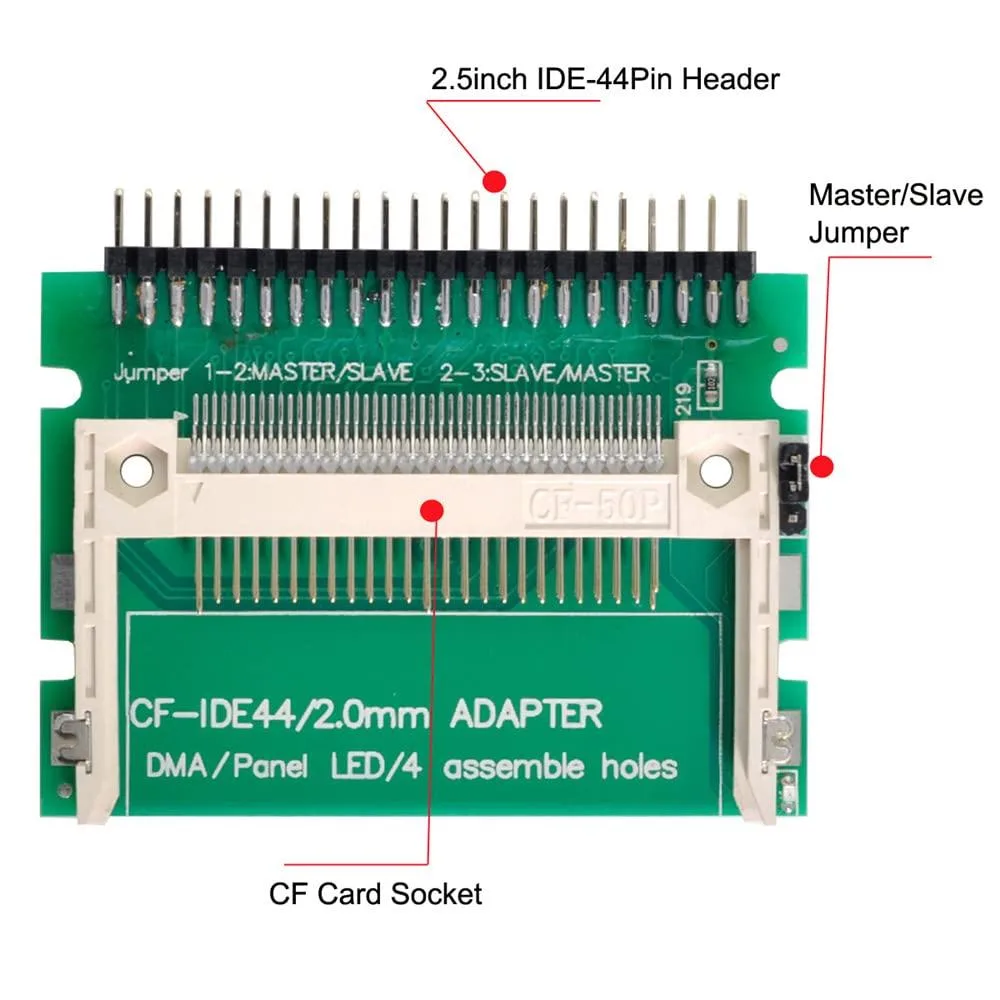

44-pin male connector orientation is critical

The connector is a special male 44-pin IDE plug; its pin-out side must match the host socket exactly. Buyers who cannot verify the connector orientation on their device should not purchase this adapter. No other specification determines compatibility.

Highlights

  • Replace a 2.5" IDE hard drive with a CompactFlash card for solid-state speed
  • Supports Type I, Type II and Microdrive cards for broad compatibility
  • Jumper-selectable master or slave setting simplifies installation
  • Operates in true IDE mode with UDMA support for bootable drives
  • Male 44-pin connector requires careful orientation check before purchase

Specifications

BrandLORDWORLD

Questions about this item

Which CF card types does this 44-pin adapter accept?

It supports Type I, Type II and Microdrive Compact Flash cards in fixed-disc mode.

What does "TRUE IDE MODE with UDMA" mean once the adapter is installed in a laptop?

The CF card appears as a native IDE drive, enabling UDMA transfers if both the notebook BIOS and the CF card support it, and the system can boot from it under Linux, DOS or Windows.

How does the 44-pin IDE connector limit the adapter in practice?

The special male 44-pin connector fits 2.5-inch laptop IDE slots only; it will not mate with 40-pin desktop IDE headers, so verify the connector orientation before purchase.
