Green PCB raid adapter with 74-pin SFF-8654 ports and PCIe 16x edge connector, 12cm bracket

LORDWORLD

LORDWORLD 74Pin SFF-8654 8X to PCIe 4.0 16X Raid Adapter

SKU CH-DJTJ-VTSF8

Converts a PCIe 4.0 x16 slot to dual SFF-8654 8x ports for up to 64Gbps SSD or eGPU use, requiring motherboard lane splitting

  • High-speed data transfer up to 64Gbps via SFF-8654 8X connectors
  • Connects one SSD or eGPU graphics card using an optional cable
  • Transmits PCI Express 4.0 signals with backward compatibility to 3.0
  • Requires motherboard with detachable PCI-E channels for four-disk operation

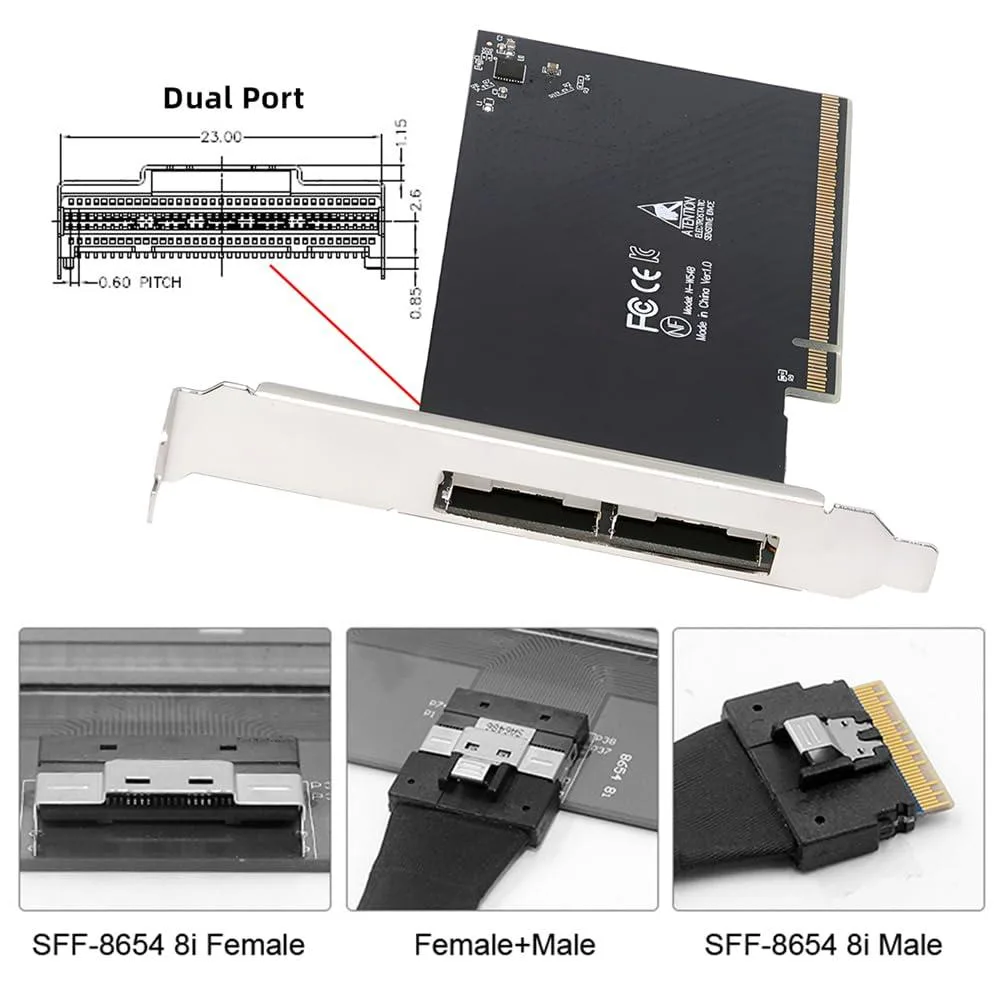

  • Includes 12cm standard bracket for internal installation via SFF-8654 interface

74Pin SFF-8654 Adapter for PCIe 4.0

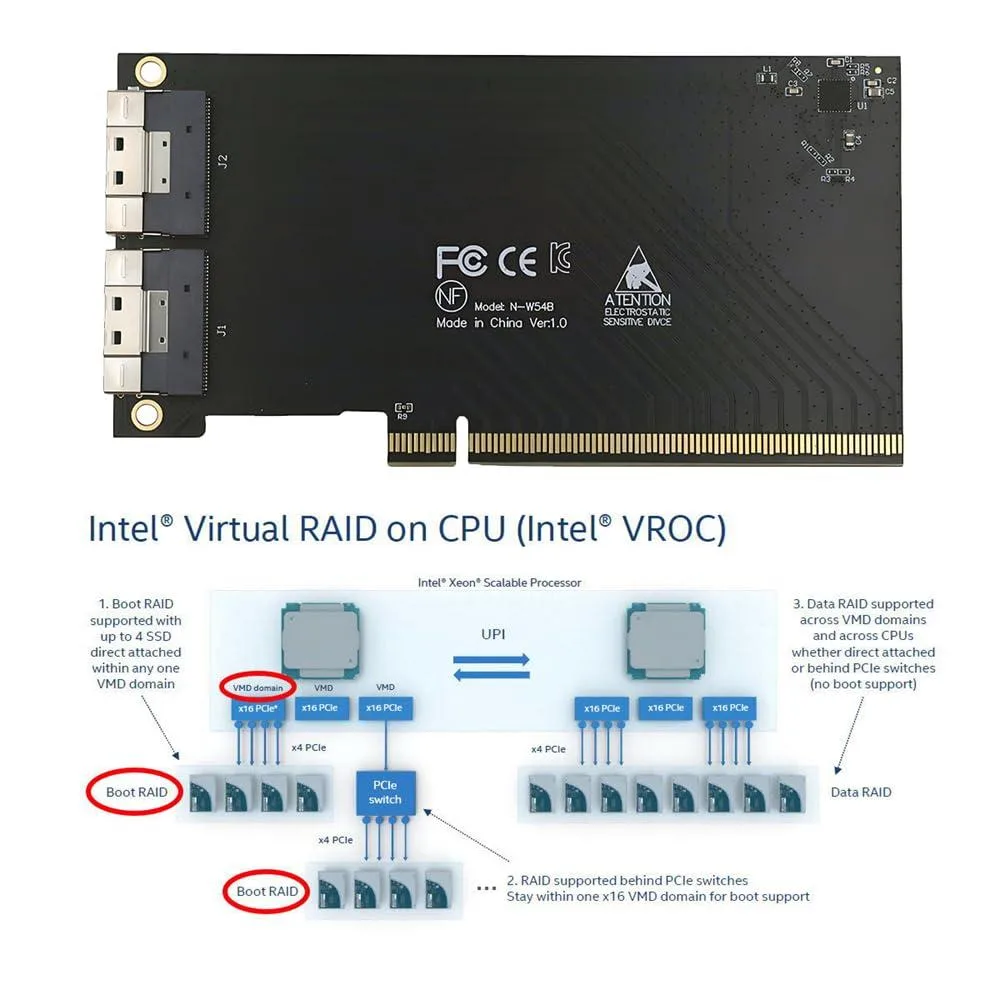

This adapter connects devices using SFF-8654 8X connectors to a PCIe 16X slot. It supports PCIe 4.0 data rates up to 64Gbps and remains backward compatible with PCIe 3.0. The card includes a 12cm standard bracket and fixing holes for secure internal installation. It suits builders adding high-speed storage or expansion cards to compatible systems.

Motherboards with detachable PCIe channels

The adapter only functions on motherboards that support PCIe lane bifurcation or detachable PCIe channels. Without signal splitting, the board will recognise only a single connected drive. This replaces direct motherboard connections when the platform lacks native SFF-8654 ports. The upgrade is worth it when the CPU and chipset provide enough divisible lanes for the target device count.

Four-drive headroom with lane splitting

With a supporting motherboard, the adapter can operate four drives simultaneously through the 16X interface. Bandwidth per drive depends on how the 16 lanes are divided by the platform. Systems without lane splitting are limited to one active device. The 64Gbps ceiling applies to the full link, not per port, so heavy multi-drive workloads may saturate the shared upstream connection.

Highlights

  • High-speed data transfer up to 64Gbps via SFF-8654 8X connectors
  • Connects one SSD or eGPU graphics card using an optional cable
  • Transmits PCI Express 4.0 signals with backward compatibility to 3.0
  • Requires motherboard with detachable PCI-E channels for four-disk operation
  • Includes 12cm standard bracket for internal installation via SFF-8654 interface

Specifications

BrandLORDWORLD

Questions about this item

Will the 12cm bracket fit a low-profile chassis?

The card ships with a 12cm standard bracket; measure your slot opening against that length before ordering.

Which motherboard feature must be present for the x16 slot to drive four drives?

The board must support PCIe lane bifurcation so the single x16 link can split into multiple x4 or x8 paths.

How do I know when the SFF-8654 cable needs replacing?

Replace the cable if you see intermittent drive drops, CRC errors in SMART data, or visible pin damage on the 74-pin connector.
