Five small rectangular PCB connectors with micro-USB ports and mounting holes

LORDWORLD

LORDWORLD 5pcs USB 2.0 Micro-B Waterproof PCB Connector

SKU CH-2RWG-FZM2T

Five waterproof Micro-B USB 2.0 PCB sockets for panel mounting, supporting 480 Mbps data and 5 V 2 A power

  • Waterproof seal protects connections in harsh environments
  • Panel-mount design secures Micro-USB ports to enclosures
  • USB 2.0 Hi-Speed 480 Mbps transfers data reliably
  • DC 5 V 2 A delivers power for charging devices
  • Five-piece pack supplies multiple build projects

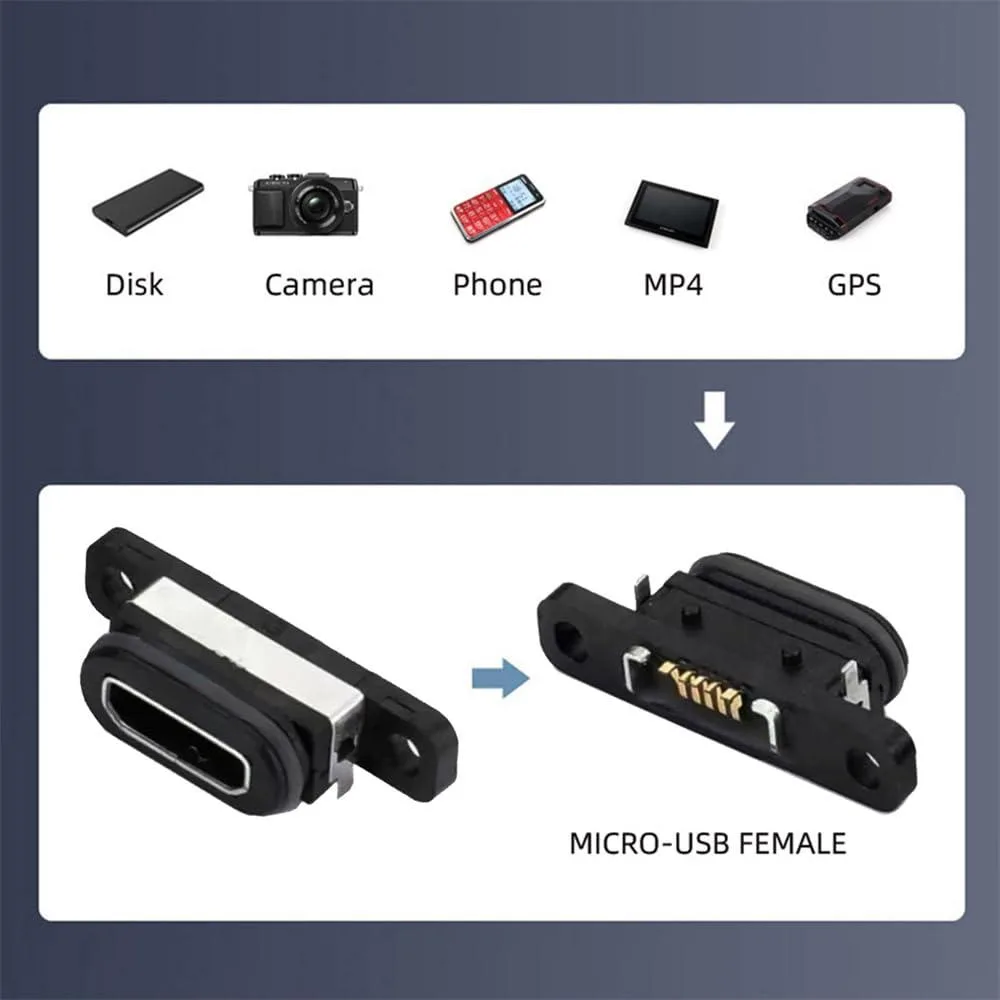

Five-piece waterproof Micro-B kit

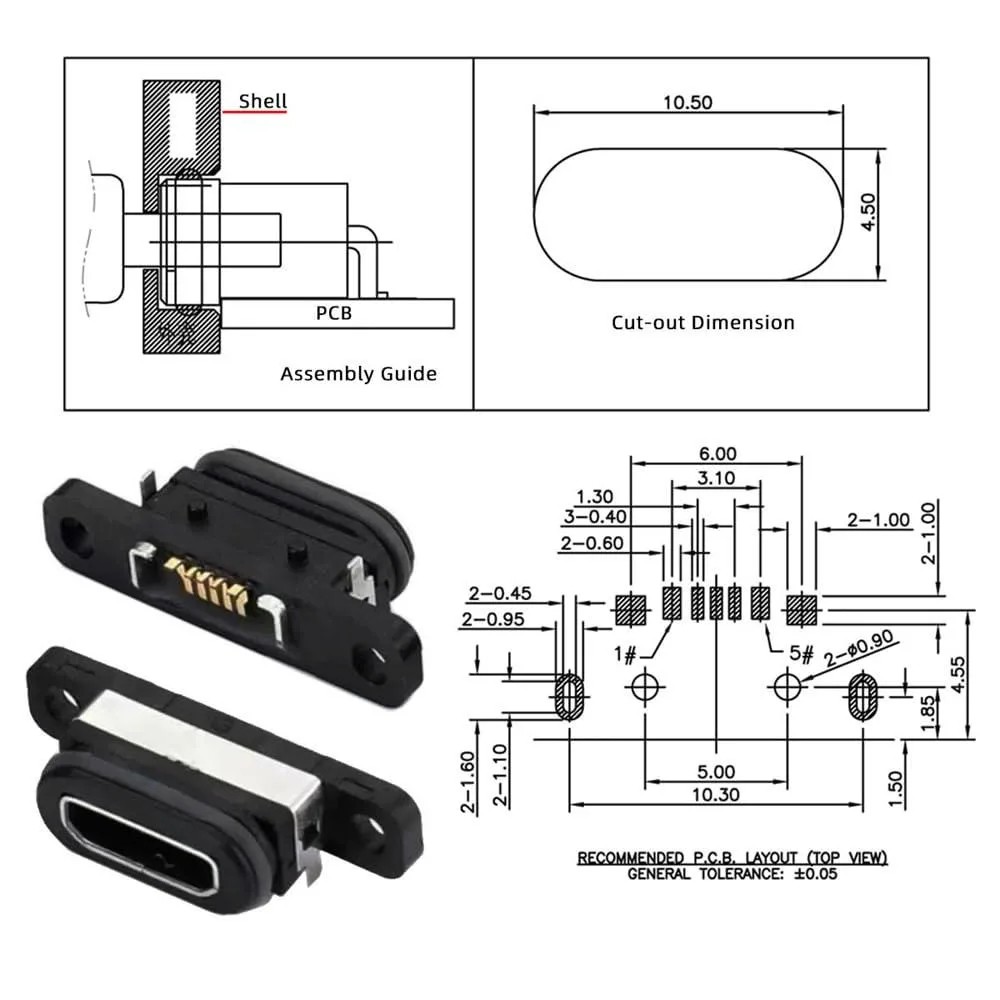

This pack contains five sealed Micro-B receptacles designed for panel-mount installation on enclosures, controllers or portable cases. Each connector carries a standard USB 2.0 Hi-Speed interface rated at 480 Mbps and supports simultaneous data and power delivery up to 5 V 2 A.

Suited for DIY builders adding a rugged external

Makers who need a watertight Micro-B bulkhead for prototypes, test rigs or custom enclosures will find the parts straightforward to solder. Projects that require USB 3.0 SuperSpeed throughput, USB 3.1 Gen 2 10 Gbps signalling or a Type-C form factor cannot use these connectors.

Handles 480 Mbps links and 5 V 2 A charging

The USB 2.0 Hi-Speed rating is sufficient for keyboards, mice, flash drives and serial adapters, while the 2 A current ceiling covers most phone and tablet charging scenarios. Bandwidth runs out with high-resolution webcams, external SSDs or any peripheral that demands USB 3.0 5 Gbps or USB 3.1 10 Gbps performance.

Highlights

  • Waterproof seal protects connections in harsh environments
  • Panel-mount design secures Micro-USB ports to enclosures
  • USB 2.0 Hi-Speed 480 Mbps transfers data reliably
  • DC 5 V 2 A delivers power for charging devices
  • Five-piece pack supplies multiple build projects

Specifications

BrandLORDWORLD

Questions about this item

What type of USB cable do I need to plug into the Micro-B female receptacle on this connector?

You need a cable with a Micro-B plug that matches the USB 2.0 Hi-Speed 480Mbps rating of the receptacle.

Will this waterproof panel-mount connector work with my existing USB 1.1 Low-Speed 1.5Mbps devices?

Yes, the connector is compliant with USB 1.1 Low-Speed 1.5Mbps so it will pass signals from those older peripherals.

How can I verify the connector is delivering the rated DC 5V 2A power throughput after installation?

Measure the voltage and current at the receptacle while a USB 2.0 device is drawing power; you should see up to 5 V and 2 A.
