Five tiny silver USB-C surface-mount sockets on a tray

LORDWORLD

LORDWORLD 5pcs Type-C Female Socket DIY Solder Connector Mini-USB 5Pin SMT DC 5V Power

SKU CH-0WVN-W88CR

Five USB-C female sockets replace Mini-USB ports, supporting 5 V 2 A power and 48 Gb/s data for 8K video

  • Delivers up to DC 5V 2A power and data through a Type-C USB 2.0 connection
  • Supports 8K, 4K, 1440p and 1080p video with 48 Gbps bandwidth
  • Gold-plated connectors provide reliable contact and corrosion resistance
  • Welded construction and reinforced ends increase durability against pulling
  • Compatible with HDMI 1.3, 1.4, 2.0 and 2.1 devices

USB-C to Mini-USB solder connector kit

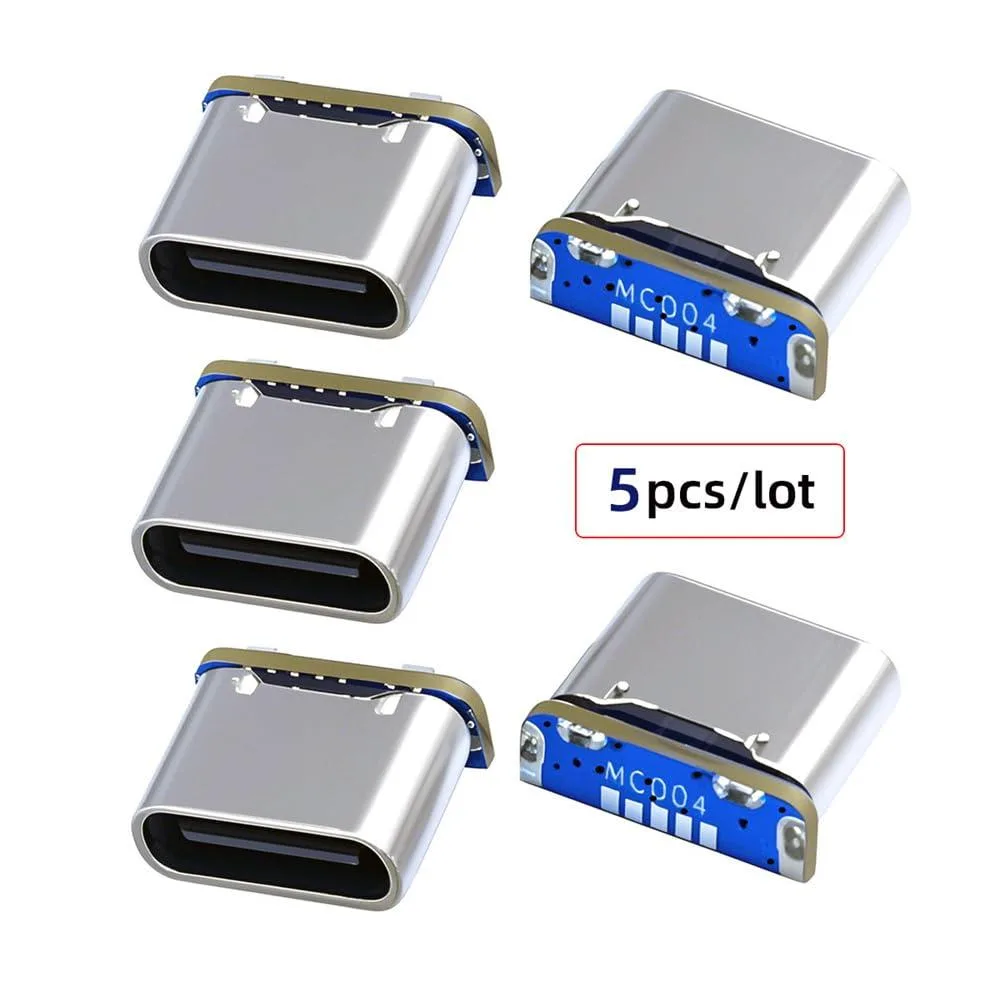

This pack contains five Type-C female sockets designed to replace a Mini-USB 5-pin footprint on a printed circuit board. Each connector is rated for DC 5 V at 2 A when paired with a USB 2.0 Type-C source and device. The surface-mount parts are intended for DIY repair or custom hardware projects that need a modern USB-C power and data interface.

Hobbyists repairing legacy boards.

Makers who maintain older equipment with Mini-USB ports can swap to a Type-C connector without redesigning the PCB. The components are not suited for applications that require HDMI signalling, 8K or 4K video throughput, or the 48 Gbps bandwidth mentioned in the supplier data, because the connectors themselves provide only a USB 2.0 Type-C interface.

USB 2.0 Type-C female, Mini-USB 5-pin footprint

The decisive specification is the physical and electrical compatibility: a USB 2.0 Type-C female socket that fits the exact Mini-USB 5-pin SMT land pattern. If your design needs that specific replacement, these connectors match it; if you need a different pinout, a higher USB generation, or an HDMI interface, this part will not work.

Highlights

  • Delivers up to DC 5V 2A power and data through a Type-C USB 2.0 connection
  • Supports 8K, 4K, 1440p and 1080p video with 48 Gbps bandwidth
  • Gold-plated connectors provide reliable contact and corrosion resistance
  • Welded construction and reinforced ends increase durability against pulling
  • Compatible with HDMI 1.3, 1.4, 2.0 and 2.1 devices

Specifications

BrandLORDWORLD

Questions about this item

What board footprint does the Type-C female socket need for SMT soldering?

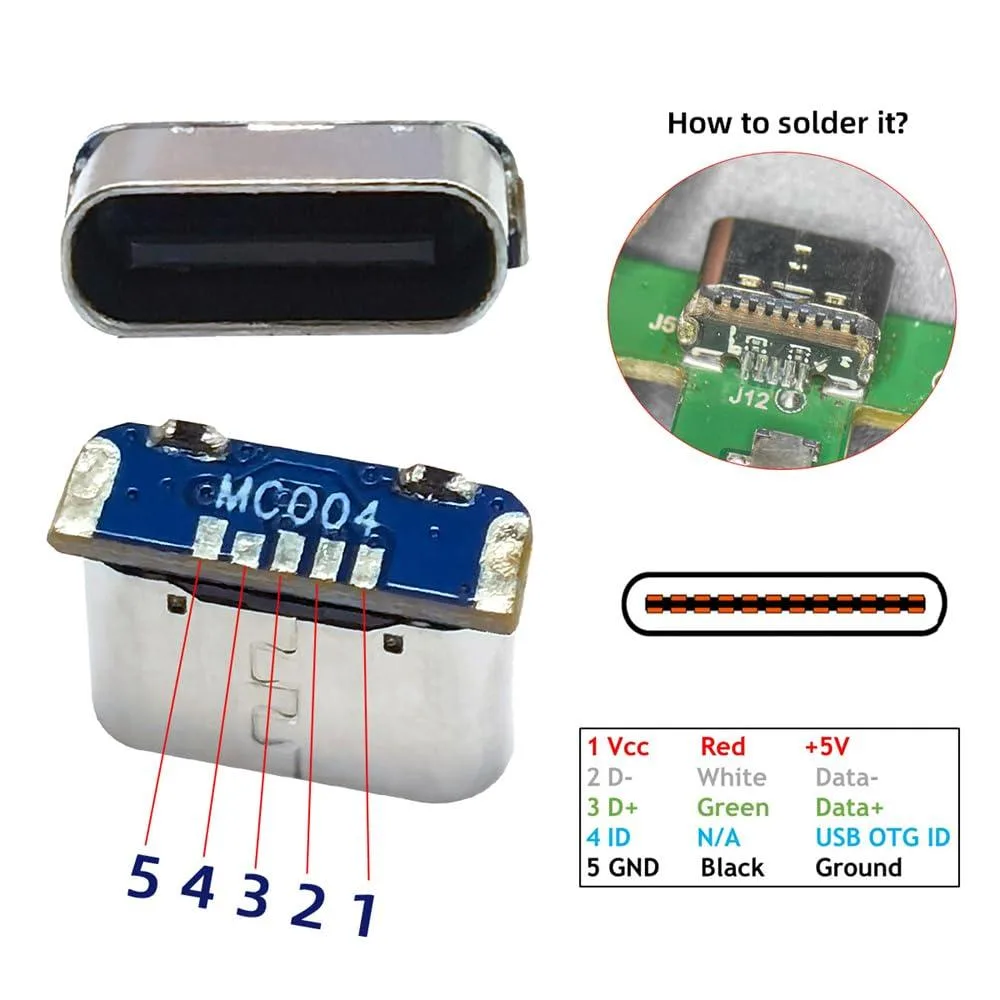

The socket is a surface-mount Type-C female connector with a 5-pin layout designed to replace a Mini-USB 5-pin footprint, so the PCB must provide matching SMT pads for those five pins.

How do you solder the connector without bridging the fine-pitch pins?

Apply flux to the pads, align the connector under magnification, then drag-solder each row with a fine tip or use hot-air reflow; the critical step is inspecting for bridges between the closely spaced power and data pins before powering the board.

When should the socket be replaced due to wear?

Gold-plated contacts are rated for thousands of mating cycles; replace the socket if insertion feels loose, charging current drops below the 5 V 2 A rating, or intermittent data occurs at 48 Gb/s bandwidth.
