Green circuit board with gold edge connectors and a silver SATA port

LORDWORLD

LORDWORLD 50Pin mSATA 3050 to 2.5" SATA Adapter

SKU CH-B234-21KFR

Converts 30×50 mm mSATA SSD to 2.5″ SATA 6.0 Gbps with 22-pin interface

  • Converts 30 mm x 50 mm mSATA SSD to standard 2.5" SATA drive bay
  • Supports 30 mm x 26 mm mSATA SSD by repositioning the location column yourself
  • Transfers data at 6.0 Gbps, 3.0 Gbps, 1.5 Gbps without added chips
  • Works with Windows 7/8/10/11, Server 2008/2012/2016/2019, Mac OS, Linux, FreeNAS
  • Only compatible with mSATA connector, not 50 mm Mini PCI-e SATA or PATA

Converts mSATA to 2.5" SATA

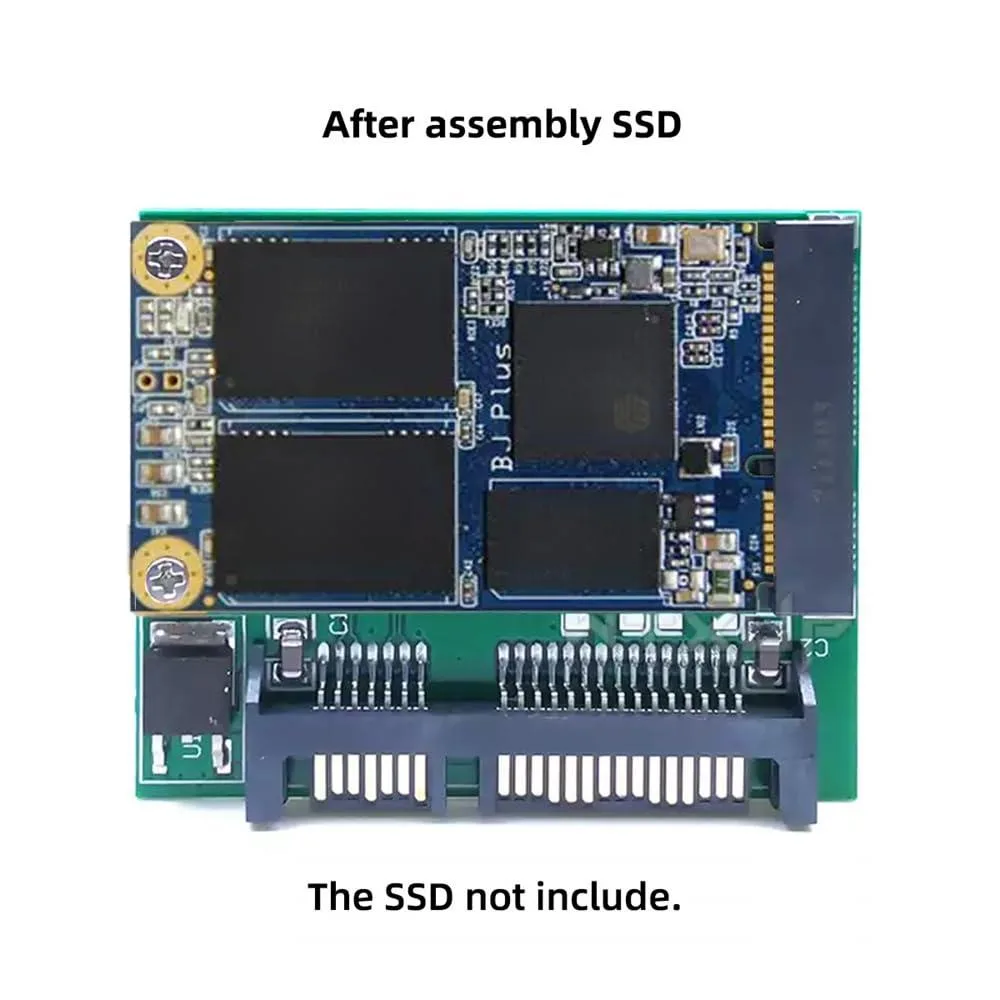

The LORDWORLD 50Pin mSATA 3050 adapter lets you install a 30 mm by 50 mm mSATA solid-state drive into any standard 2.5 inch SATA drive bay. It connects through a SATA 3.0 22-pin interface and passes through the native 6.0 Gbps, 3.0 Gbps and 1.5 Gbps signalling rates without an intermediate controller chip. The board also accepts 30 mm by 26 mm mSATA modules if you reposition the locating column yourself. It works with Windows 7 through 11, Windows Server 2008 R2 through 2019, Mac OS, Linux and FreeNAS.

Suits mSATA upgrades; not for Mini PCIe

This adapter is built for owners of 30 mm by 50 mm or 30 mm by 26 mm mSATA drives who need a 2.5 inch form factor for a laptop bay, desktop cage or external enclosure. Buyers with 50 mm Mini PCIe SATA or Mini PCIe PATA cards cannot use it because the connector and pin-out are different. Systems that require a drive-height thicker than the low-profile 5 mm by 3 cm board, or that need an on-board bridge controller, should look at other solutions.

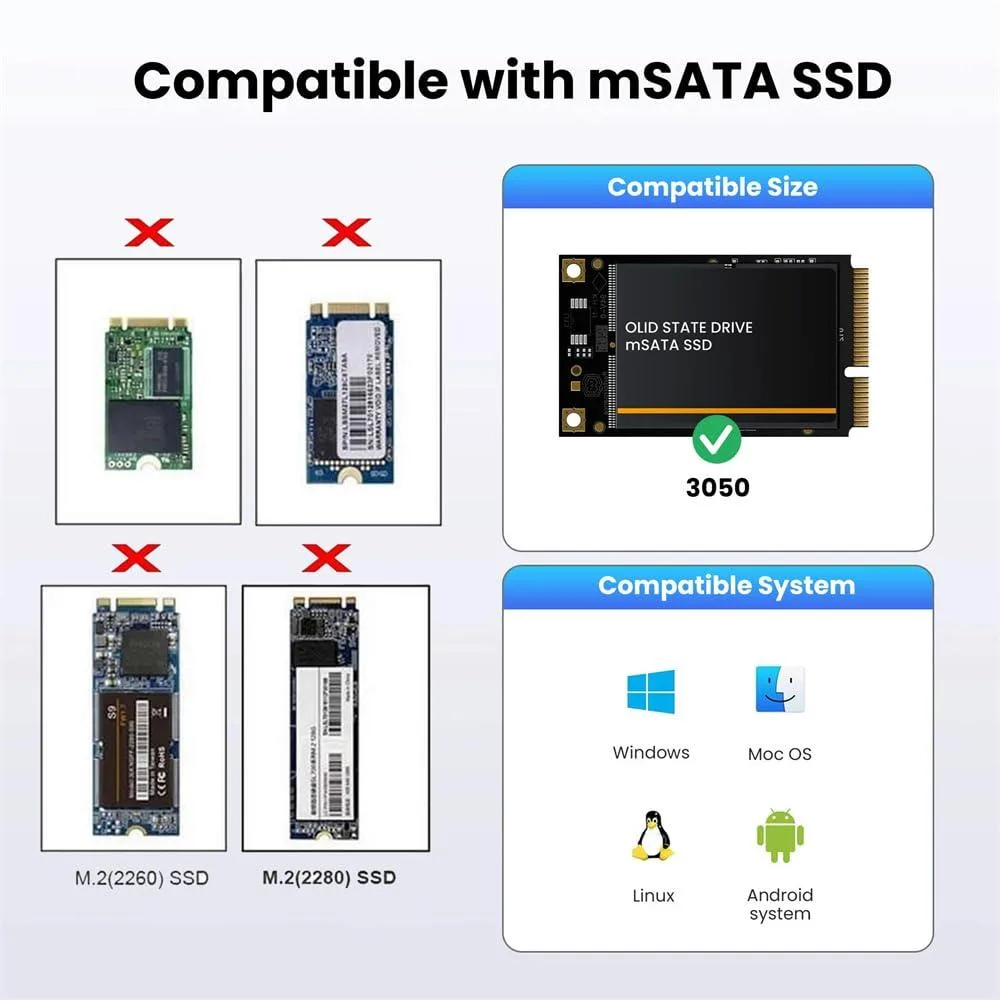

50-pin mSATA connector compatibility

The single specification that decides fit is the 50-pin mSATA edge connector on your drive. Only drives with that exact mSATA interface will mate with the adapter; 50 mm Mini PCIe SATA and Mini PCIe PATA devices are electrically incompatible and will not work. No other interface or protocol is involved.

Highlights

  • Converts 30 mm x 50 mm mSATA SSD to standard 2.5" SATA drive bay
  • Supports 30 mm x 26 mm mSATA SSD by repositioning the location column yourself
  • Transfers data at 6.0 Gbps, 3.0 Gbps, 1.5 Gbps without added chips
  • Works with Windows 7/8/10/11, Server 2008/2012/2016/2019, Mac OS, Linux, FreeNAS
  • Only compatible with mSATA connector, not 50 mm Mini PCI-e SATA or PATA

Specifications

BrandLORDWORLD

Questions about this item

Will the 6.0Gbps SATA 3.0 interface bottleneck a fast mSATA SSD under sustained writes?

The adapter is a passive form converter without an integrated circuit chip, so it does not change the speed or other properties of the mSATA SSD.

Does the adapter generate any noticeable heat or noise during all-day operation?

The adapter has no active components, chips or moving parts, so it produces no noise and negligible heat during continuous use.

What size mSATA SSD do I need to already own for this 50-pin 3050 adapter to work?

It accepts 30 mm x 50 mm mSATA SSDs by default, and can support 30 mm x 26 mm drives if you reposition the location column on the PCB yourself.
