Green circuit board with four blue USB ports and a 9.5mm metal bracket

LORDWORLD

LORDWORLD 4 Port USB 3.0 PCIe Card Low Profile 9.5mm Bracket

SKU CH-R8KJ-Z1G6X

Adds four USB 3.0 ports via a single-lane PCI Express Gen2 slot and includes a 9.5 mm low-profile bracket

  • Adds four USB 3.0 ports via a single PCIe x1 Gen2 slot
  • Low-profile 9.5 mm bracket included for slim chassis builds
  • Standard-height bracket also supplied for full-size cases
  • 5 Gbps peak throughput per port for fast external drives
  • Requires NEC USB 3.0 driver installation before use

Four-port USB 3.0 expansion

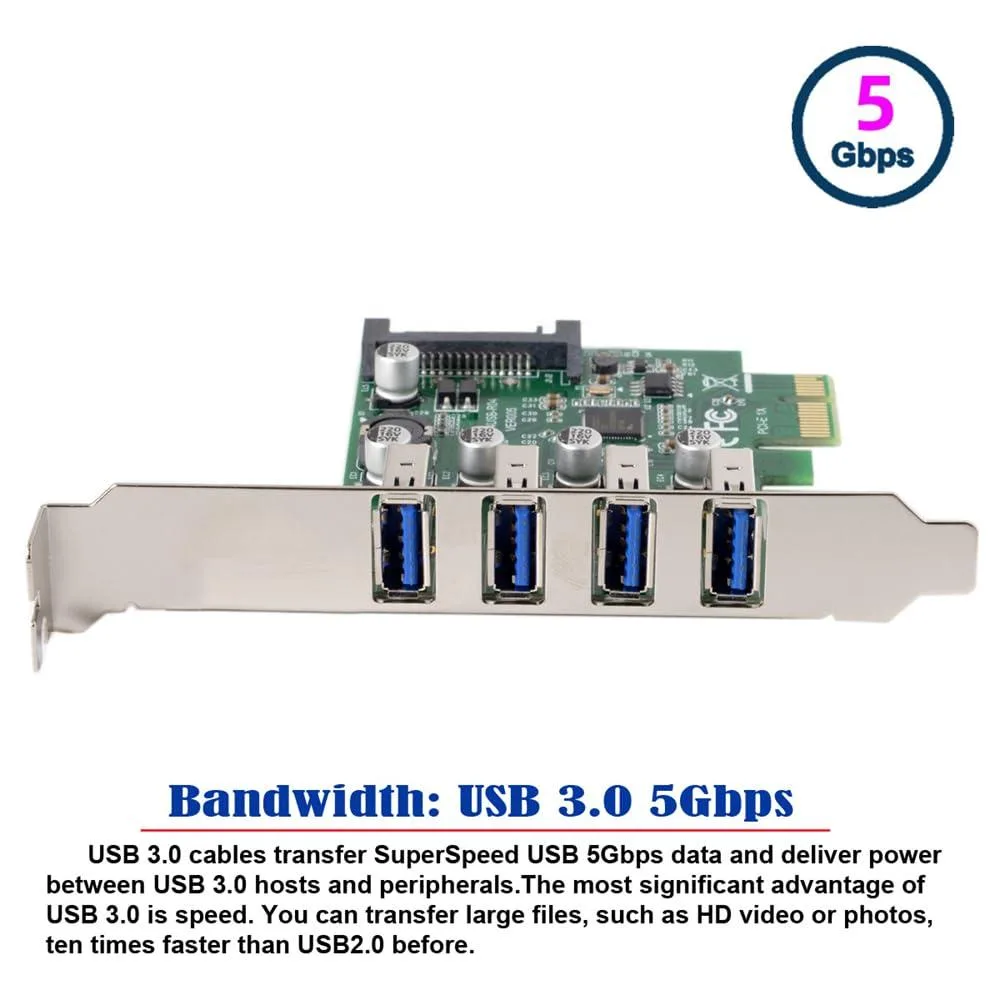

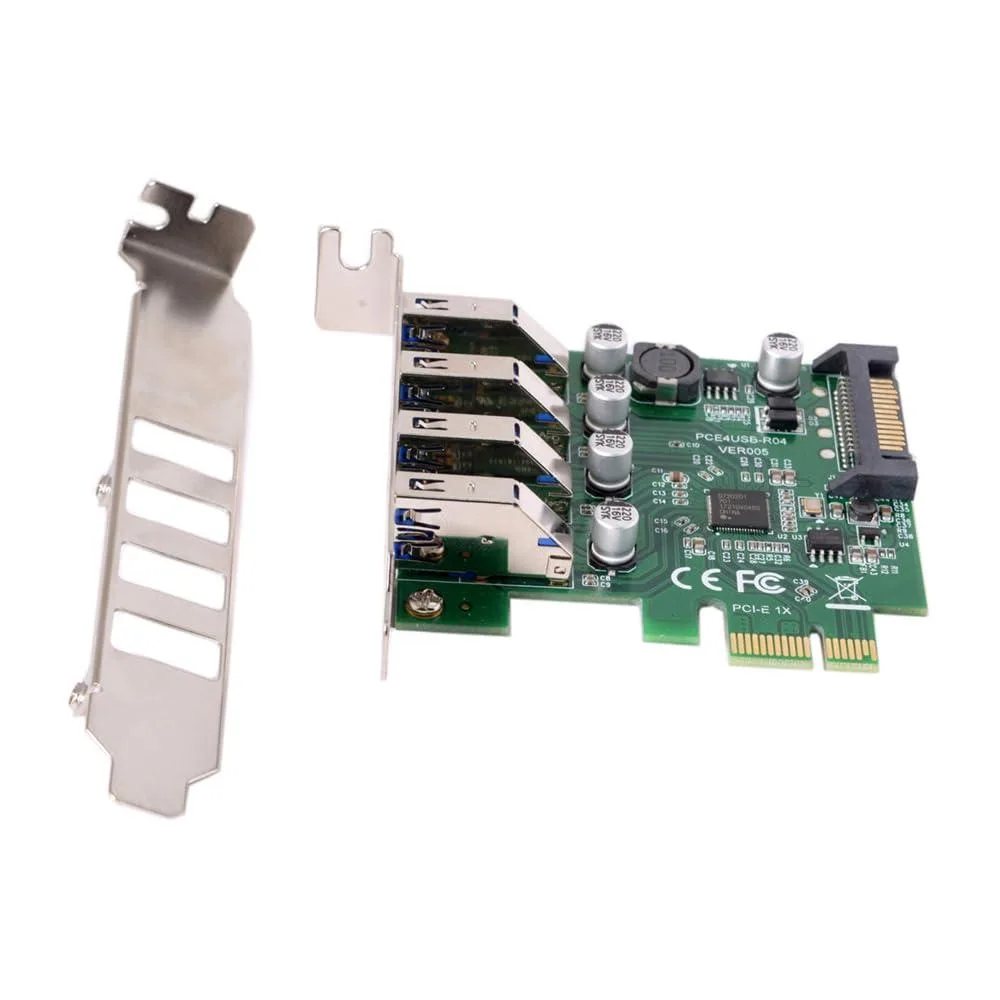

This PCI Express add-in card adds four external USB 3.0 ports to a desktop computer. It uses a single-lane Gen 2 slot and includes both a 9.5 mm low-profile bracket and a standard bracket for different chassis. The card targets users who need extra high-speed ports for peripherals or external drives.

Driver-first installation

Installing the card requires fitting it into an available PCIe x1 slot and attaching the chosen bracket. The manufacturer highlights that the NEC USB 3.0 driver must be installed on the operating system before the ports will function. Missing this step is the most common reason the new ports remain invisible to the system.

Four ports at 5 Gbps shared bandwidth

The four ports share the upstream PCIe Gen 2 x1 link, giving a combined ceiling of 5 Gbps. This comfortably handles multiple keyboards, mice, printers or single external SSDs used one at a time. Simultaneous heavy transfers across several drives will saturate the link and reduce per-port throughput.

Highlights

  • Adds four USB 3.0 ports via a single PCIe x1 Gen2 slot
  • Low-profile 9.5 mm bracket included for slim chassis builds
  • Standard-height bracket also supplied for full-size cases
  • 5 Gbps peak throughput per port for fast external drives
  • Requires NEC USB 3.0 driver installation before use

Specifications

BrandLORDWORLD

Questions about this item

How do I confirm the card is working after installing the NEC driver?

Open Device Manager and check that the NEC USB 3.0 host controller appears without error codes, then plug a USB 3.0 device into each of the four ports and verify they enumerate at 5 Gbps.

Which brackets and cables are included with the card?

A 9.5 mm low-profile bracket and a standard-height bracket are both supplied; no internal power cable is included.

Is there more than one version of this card to choose from?

The product is offered as a single four-port USB 3.0 PCIe x1 Gen 2 model with both brackets in the box.
