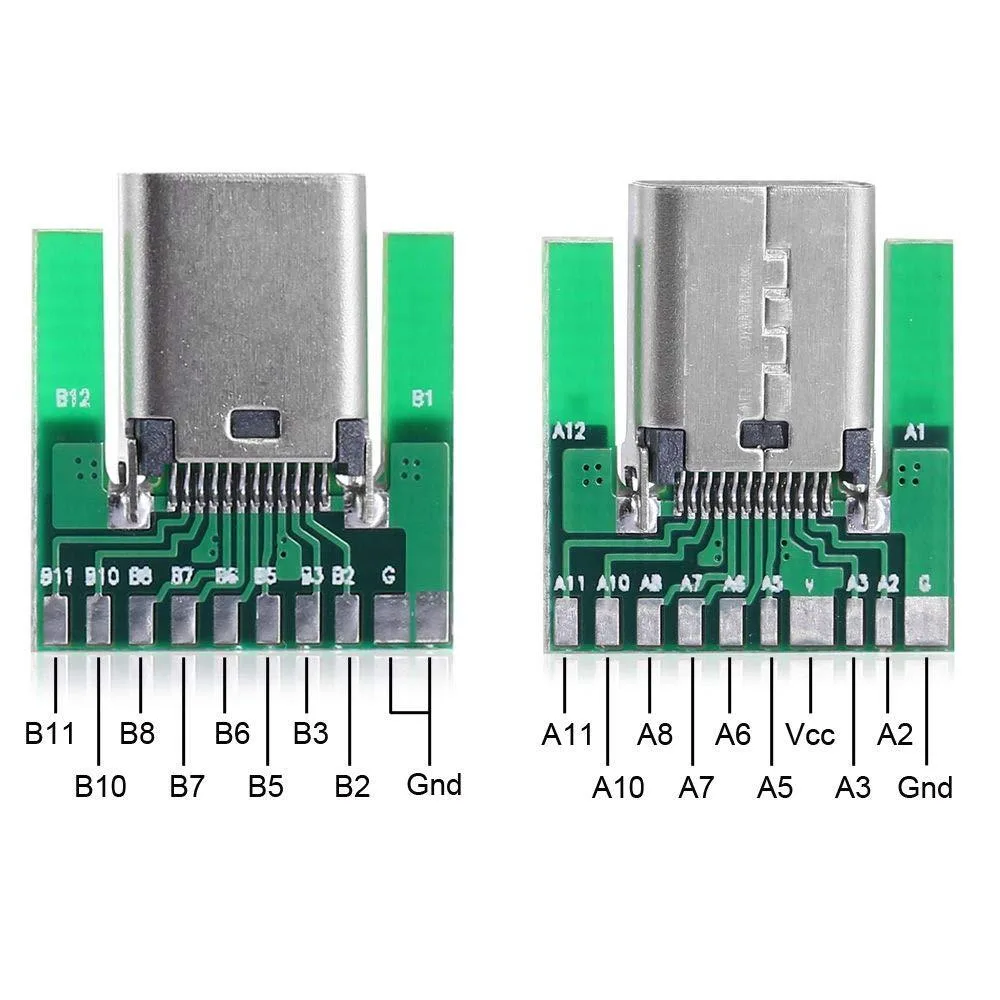

Two small green circuit boards with USB-C connectors, one male and one female

LORDWORLD

LORDWORLD 24pin USB 3.1 Type C Male Female SMT Plug Socket Connector PC Board 1Set 2pcs

SKU CH-X211-K4V04

A 24-pin USB 3.1 Type-C male and female connector pair on a PCB for custom cable soldering

  • 24-pin USB 3.1 Type C connector supports high-speed data transfer
  • SMT solder design enables direct PCB mounting for secure connections
  • Included PC board simplifies prototyping and custom cable builds
  • Male plug and female socket supplied together for complete interface assembly
  • DIY solderable contacts let you create tailored cable lengths and pinouts

DIY 24-pin USB 3.1 Type-C connector kit

This LORDWORLD kit provides one male plug and one female socket, each with a 24-pin USB 3.1 Type-C interface. Both components are mounted on a printed circuit board designed for surface-mount soldering. The set is intended for builders who want to create custom cables or repair existing Type-C connections.

Suits hobbyists making custom Type-C cables

The SMT footprint requires surface-mount soldering equipment and steady hands, so it is not suited for beginners who only have a basic through-hole iron. Buyers who need a ready-made cable or a panel-mount connector with pre-attached wires should look at a different product type.

24-pin USB 3.1 Type-C SMT footprint on included PCB

The decisive specification is the 24-pin USB 3.1 Type-C pinout arranged for surface-mount assembly on the supplied board. Confirm that your design matches this exact footprint and that you can solder fine-pitch SMT pads before purchasing.

Highlights

  • 24-pin USB 3.1 Type C connector supports high-speed data transfer
  • SMT solder design enables direct PCB mounting for secure connections
  • Included PC board simplifies prototyping and custom cable builds
  • Male plug and female socket supplied together for complete interface assembly
  • DIY solderable contacts let you create tailored cable lengths and pinouts

Specifications

BrandLORDWORLD

Questions about this item

Which version of the LORDWORLD connector set should I choose?

The listing offers a single set that includes one 24pin USB 3.1 Type C male plug and one female socket, both mounted on a PC board for SMT soldering.

What does the USB 3.1 label mean once I solder this into my project?

It identifies the connector as built for the USB 3.1 signalling standard; actual transfer speed will depend on the cable, host controller and device you attach.

What interface does the 24pin Type C connector use and what does it limit?

The connector follows the USB Type C interface with 24 pins, carrying the USB 3.1 data lanes and power pins defined by that standard.
