Green circuit board with M.2 slot and SFF-8639 connector, compact adapter card

LORDWORLD

LORDWORLD 2280 U.2 Kit SFF-8639 NVME PCIe4.0 SSD Adapter

SKU CH-BXPC-89K3D

Adapts M.2 NGFF M-key SSDs in 22, 30, 42, 60 and 80 mm lengths to U.2 SFF-8639 with PCIe 4.0 x4 bandwidth

  • Connects U.2 drives via SFF-8639 interface
  • Delivers 4 GBps throughput over PCIe 4.0 x4
  • Fits M.2 2230, 2242, 2260 and 2280 M-key modules
  • Supports Intel SSD 750, P3600 and P3700 drives
  • Includes Ultra M.2 card; cable sold separately

U.2 Kit for Intel SSD 750 Series

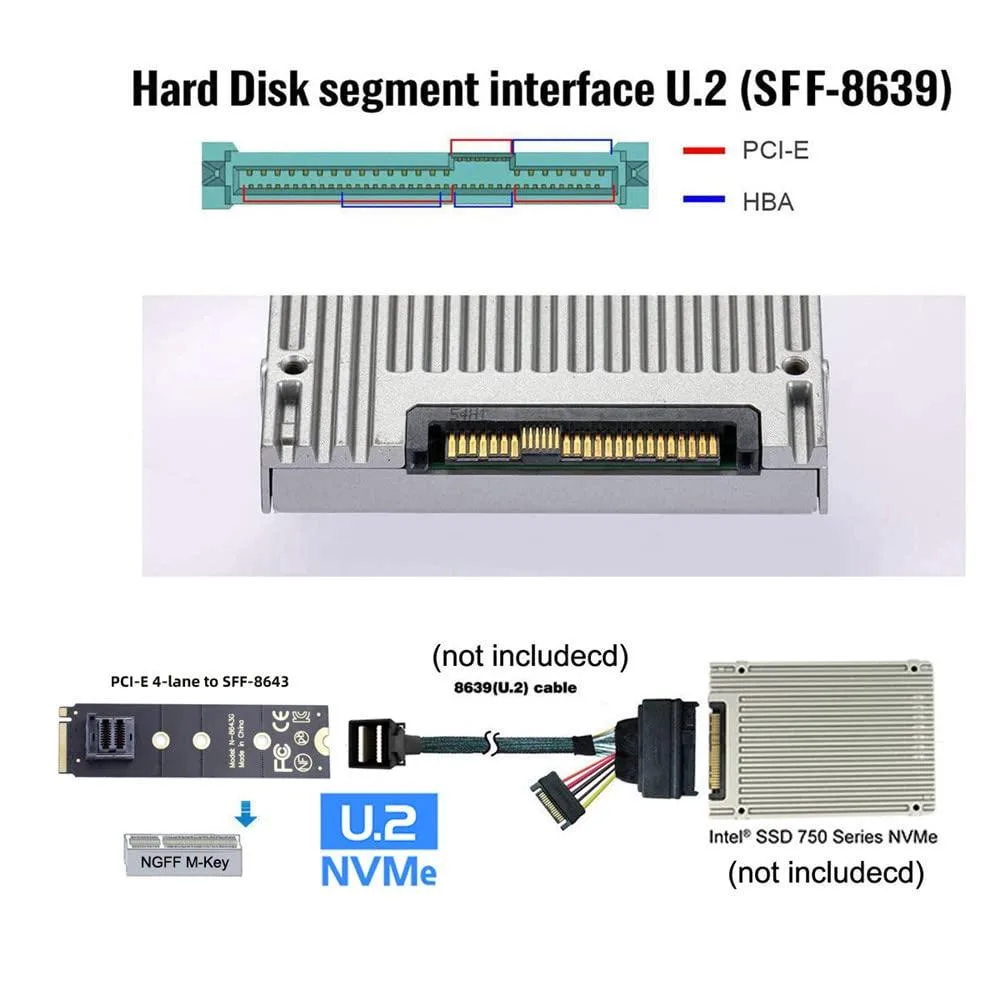

This adapter kit connects Intel SSD 750, P3600 and P3700 drives to a motherboard using the SFF-8639 U.2 interface. It operates over a PCIe 4.0 x4 link rated at 4 GBps. The card accepts M.2 modules in 2230, 2242, 2260 and 2280 lengths with an M-key socket. Only the adapter card is supplied; the cable is not included.

Builders adding enterprise U.2 drives to consumer

The kit suits builders who want to install Intel SSD 750, P3600 or P3700 drives in a system with a U.2 port. It does not suit users who need a complete kit with a cable included. It also does not suit installations that require drive lengths outside the 2230 to 2280 range or a key type other than M-key.

PCIe 4.0 x4 at 4 GBps through SFF-8639

The single specification that decides fit is the PCIe 4.0 x4 interface delivering 4 GBps via the SFF-8639 connector. The host must provide a U.2 port wired for PCIe 4.0 x4 to reach that throughput. If the platform only offers an older PCIe generation or a different connector, the adapter will not perform as designed.

Highlights

  • Connects U.2 drives via SFF-8639 interface
  • Delivers 4 GBps throughput over PCIe 4.0 x4
  • Fits M.2 2230, 2242, 2260 and 2280 M-key modules
  • Supports Intel SSD 750, P3600 and P3700 drives
  • Includes Ultra M.2 card; cable sold separately

Specifications

BrandLORDWORLD

Questions about this item

What M.2 module lengths does the 2280 U.2 Kit SFF-8639 adapter support?

The adapter supports M.2 NGFF M-key modules in 22x30 mm, 22x42 mm, 22x60 mm and 22x80 mm sizes.

How is the adapter connected to the motherboard and what step is often missed?

The adapter plugs into a PCIe 4.0 x4 slot; the separate SFF-8643 Mini SAS HD cable required to link the onboard SFF-8639 port to the drive is not included and must be sourced separately.

What ongoing maintenance or replacement should be expected for this adapter?

The adapter itself is a passive board with no moving parts; only the M.2 SSD or the external Mini SAS HD cable may need replacement if they fail.
