LORDWORLD 12V 5A 60W Power Supply 5.5x2.1mm Plug

12 V 5 A power adapter for LED strips and cameras

This LORDWORLD unit converts 100-240 V AC at 50-60 Hz into a regulated 12 V DC output rated at 5 A and 60 W. It targets installers and hobbyists who need a UL listed and FCC certified supply for LED strip lighting, CCTV cameras, 3D printers, audio amplifiers or similar 12 V equipment drawing up to 5 A. The adapter ships with a 5.5 mm × 2.1 mm barrel plug and an additional LED DC connector for quick strip attachment. It is not for devices that require more than 60 W or a different output voltage.

Installation and common issues

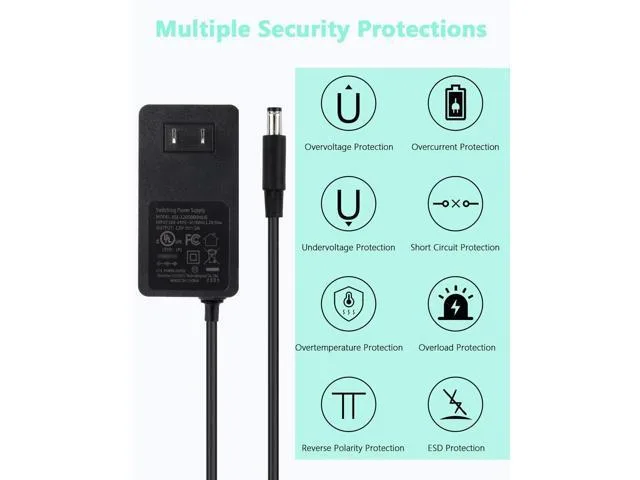

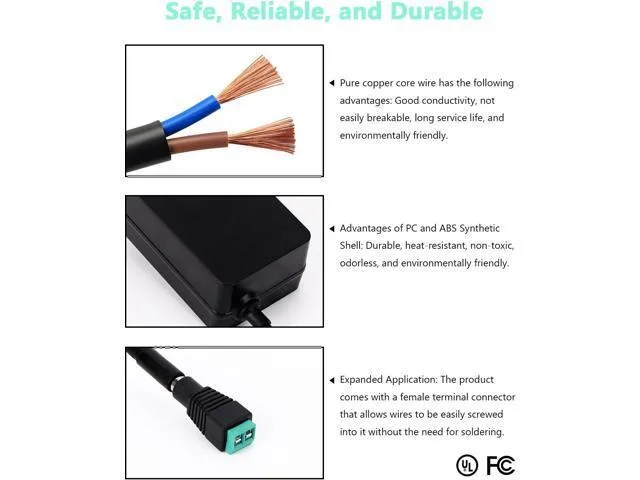

The barrel jack mates with standard 5.5 mm × 2.1 mm sockets so most compatible gear plugs in without tools. The bundled LED connector lets you join positive and negative leads from a strip light by hand, avoiding solder work. Problems usually arise when the load exceeds 5 A or when polarity is reversed on the bare-wire side; the built-in over-voltage, over-current and short-circuit protections will then shut the unit down until the fault is cleared. Ensure the total connected draw stays below 60 W and that the centre pin carries positive voltage.

Sustained-load behaviour

Under continuous operation the supply runs silently and maintains a low case temperature thanks to its protection circuitry and efficient design. The over-temperature and short-circuit safeguards keep output stable during long runs such as all-night security camera recording or extended 3D print jobs. No fan noise appears because the design relies on passive cooling rated for the full 60 W load. The unit is not suited for equipment with high inrush currents that regularly spike above 5 A.
