Green rectangular circuit board with silver heatsink, multiple capacitors and screw terminals visible

LORDWORLD

LORDWORLD 1200W 20A DC Boost Converter 10-60V to 12-80V

SKU CH-XGPP-HWW30

Boosts DC input from 10 to 60 volts up to 12 to 80 volts at up to 20 amps with multiple protection features

  • Delivers up to 1200W output power with 20A maximum current
  • Accepts wide 10-60V DC input for flexible power sources
  • Adjustable 12-80V DC output suits diverse project needs
  • Built-in overcurrent, short-circuit, reverse-polarity and low-battery protections
  • Aluminium heatsink plus fan mounts enable sustained high-current operation

High-power adjustable boost converter

The LORDWORLD 1200W module steps DC input from 10V to 60V up to an adjustable 12V to 80V output at up to 20A. It suits DIY builders powering high-current loads such as solar street lamps or custom battery systems from a lower-voltage source.

Protection features and thermal design

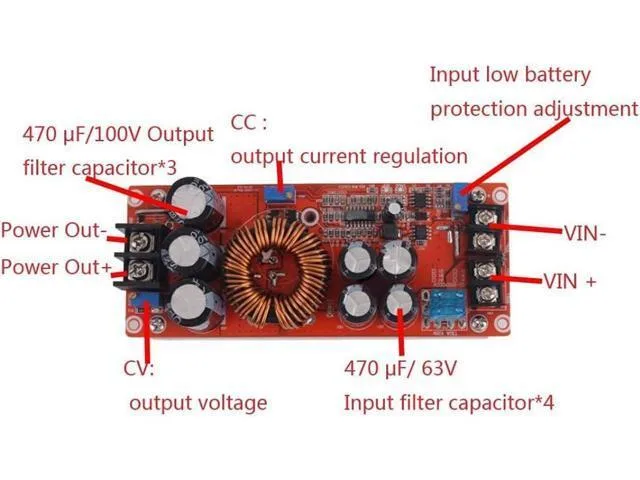

Built-in input overcurrent, short-circuit, reverse-connection and low-battery safeguards protect the circuit and source. Seven electrolytic capacitors and a 33MM iron-silicon-aluminum magnetic ring resist saturation, while an aluminum back-plate and reserved fan holes allow active cooling above 15A.

Installation notes and common issues

Screw terminals accept input and output wiring; output voltage is set via onboard potentiometer before connecting the load. Do not use a short-circuit method to calibrate current. Exceeding 15A continuous requires an external fan on the mounting holes to prevent thermal shutdown.

Highlights

  • Delivers up to 1200W output power with 20A maximum current
  • Accepts wide 10-60V DC input for flexible power sources
  • Adjustable 12-80V DC output suits diverse project needs
  • Built-in overcurrent, short-circuit, reverse-polarity and low-battery protections
  • Aluminium heatsink plus fan mounts enable sustained high-current operation

Specifications

BrandLORDWORLD

Questions about this item

Do the 7 electrolytic capacitors on this LORDWORLD 1200W boost converter need periodic replacement?

The module uses 7 electrolytic capacitors alongside a 33 mm iron-silicon-aluminum magnetic ring to handle high current without magnetic saturation; capacitor lifespan depends on operating temperature and load, so monitor for swelling or ESR rise over time.

What is the first limit reached when running this 20 A boost converter continuously at high output?

The 20 A input-current ceiling is the primary limit; at 12 V input the unit delivers 240 W, at 24 V it delivers 480 W, and only at 60 V input does it reach the full 1200 W rating.

How hot or noisy does this DC boost module get during all-day operation above 15 A?

Above 15 A the supplier advises adding a fan to the reserved mounting holes; the aluminium back-plate radiator handles lower loads, but sustained high current requires forced airflow to prevent overheating.
