LONGER Ray5 10W Laser Engraver 400x400mm
Engraves and cuts wood up to 20 mm and acrylic up to 30 mm with a 0.06 mm spot, 10 W output, 400×400 mm bed and offline touch-screen control

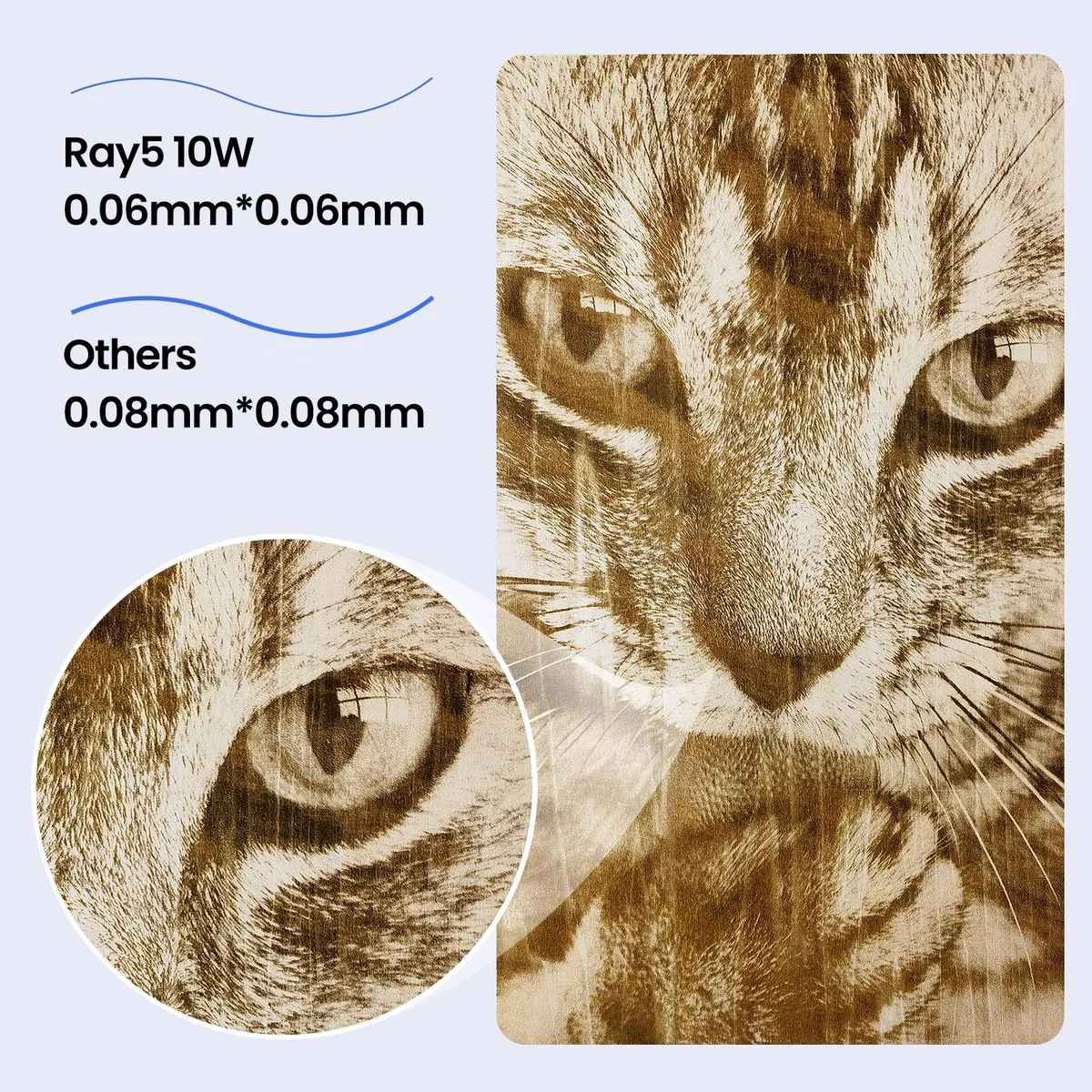

- Ultra-fine 0.06×0.06 mm spot delivers precise, detailed engravings
- 10 W output cuts 20 mm wood and 30 mm acrylic
- 5″ touch screen enables fully offline operation
- Wi-Fi, USB, APP and TF card give flexible data transfer
- 400×400 mm work area handles large-format projects
10 W Laser Engraver for Makers
The LONGER Ray5 delivers 10 W of optical output through a compressed dual-beam module that produces a 0.06*0.06 mm spot. It engraves at speeds up to 10000 mm/min across a 400x400 mm work area and can cut wood up to 20 mm thick or acrylic up to 30 mm thick. The 32-bit motherboard drives the motion system for precise DIY and small-batch production work.
Air-Assisted Cooling and Safety Features
An integrated air-assist nozzle directs airflow across the cut path to clear debris and moderate temperatures during operation. The chassis includes a power button, active position protection, thermal protection and a current safety control system that halt the laser if the gantry moves unexpectedly or temperatures rise. A 3.5" colour touch screen provides local control without a host computer.
Sustained Cutting and Batch Operation
The motion system maintains consistent speed and spot quality during long vector cuts through thick material rather than only during short raster passes. One computer can command multiple Ray5 units simultaneously over Wi-Fi, USB or TF card, allowing parallel engraving jobs that increase throughput for repeated designs. Offline operation via the touch screen or TF card removes the need for a continuous USB link.
Highlights
- Ultra-fine 0.06×0.06 mm spot delivers precise, detailed engravings
- 10 W output cuts 20 mm wood and 30 mm acrylic
- 5″ touch screen enables fully offline operation
- Wi-Fi, USB, APP and TF card give flexible data transfer
- 400×400 mm work area handles large-format projects
Specifications
No published specifications for this item yet.
Questions about this item
How do I set up the LONGER Ray5 10W Laser Engraver and what step do people often miss?
Place the machine on a stable surface, connect power, and level the 400x400mm bed using the 3.5" touch screen; the step many skip is running the focus test with the 0.06*0.06mm compressed spot before the first job.
What maintenance or replacement will the LONGER Ray5 10W Laser Engraver need over time?
Clean the laser lens and air-assist nozzle weekly to keep the 0.06*0.06mm spot sharp; the diode module is rated for long life but plan to replace it when cutting 20mm wood or 30mm acrylic noticeably slows.
What limit appears first during long engraving sessions on the LONGER Ray5 10W Laser Engraver?
Thermal protection activates first under sustained 10W output, pausing the job until the head cools; the 32-bit motherboard then resumes from the exact stop point without data loss.
