Compact silver aluminium laser module with rectangular front aperture and side cooling fins

LONGER

LONGER 10W Laser Engraver Module 0.06mm Spot 3D Printers Accessories

SKU CH-RCJ7-RB86E

A 10 W diode laser module with a compressed 0.06 mm spot cuts wood up to 20 mm and acrylic up to 30 mm at 10 000 mm/min

  • Ultra-fine 0.06mm laser spot enables detailed engraving
  • 10–11 W optical output cuts wood up to 20 mm and acrylic up to 30 mm
  • 10,000 mm/min engraving speed accelerates project completion
  • Fixed 50 mm focal length simplifies setup on compatible machines
  • FDA Class IV laser with eye-protection design supports safer operation

Laser module for DIY engraver upgrades

This 10 W laser module is built for owners of desktop engraving machines who want finer detail and deeper cuts. It mounts on most popular frames and suits hobbyists making personalised gifts, signage or prototype parts.

Fixed focus with 50 mm working distance

The module runs from a 12 V 3.2 A supply and is rated for 10 000 hours at temperatures up to 70 °C. An aluminium alloy body dissipates heat without extra cooling, while the FDA Class IV beam requires the supplied eye shield during operation.

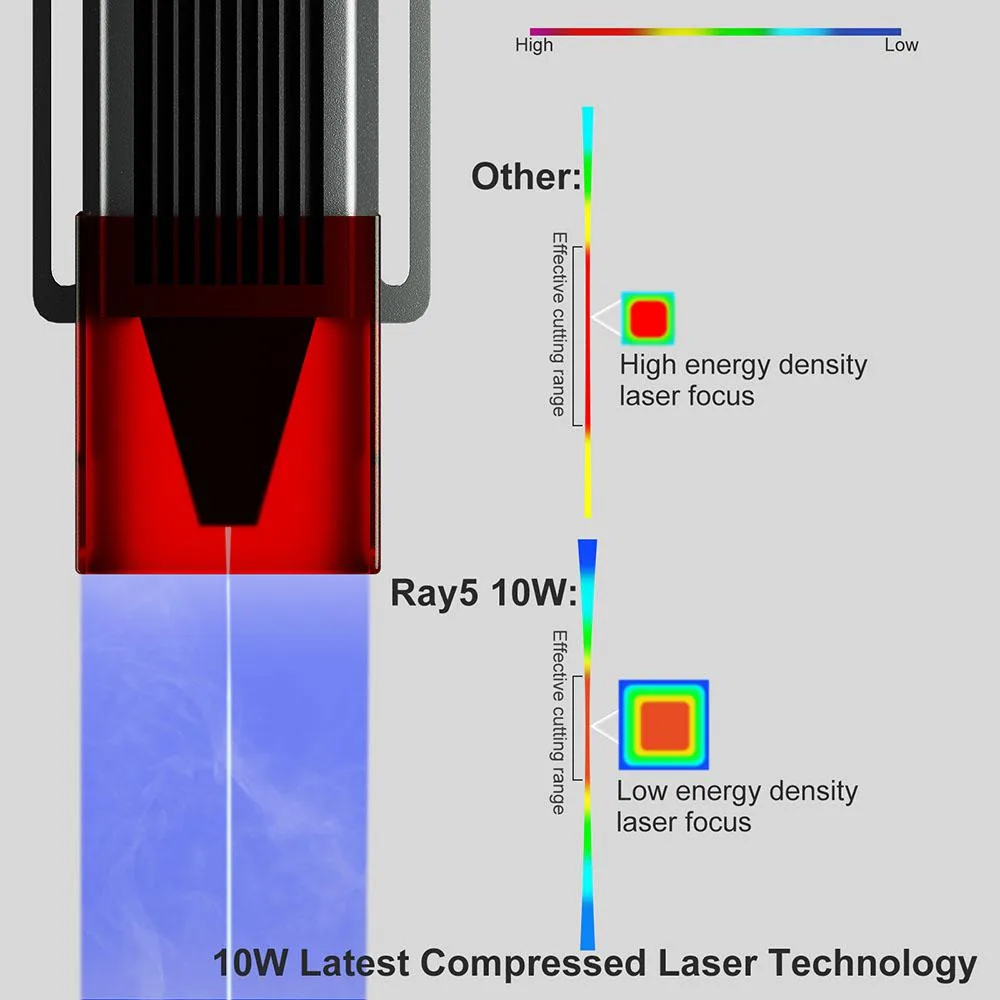

0.06 mm compressed spot at 450–460 nm

Dual-diode compression delivers a 0.06 × 0.06 mm spot that cuts wood up to 20 mm and acrylic up to 30 mm. It cannot mark transparent, white, blue or purple materials, nor bare aluminium without an oxide layer.

Highlights

  • Ultra-fine 0.06mm laser spot enables detailed engraving
  • 10–11 W optical output cuts wood up to 20 mm and acrylic up to 30 mm
  • 10,000 mm/min engraving speed accelerates project completion
  • Fixed 50 mm focal length simplifies setup on compatible machines
  • FDA Class IV laser with eye-protection design supports safer operation

Specifications

No published specifications for this item yet.

Questions about this item

How do I install this module on a machine that isn't a Longer Ray5 5W, and what focal distance must I set?

The module fits 90 percent of machines on the market such as Atomstack, Ortur and Sculpfun; mount it using the standard bracket and position the workpiece 50 mm from the fixed-focus lens.

What maintenance will the laser diodes require after extended use?

The dual-diode compressed spot is rated for 10000 hours; keep the lens clean with a lint-free cloth and ensure the cooling fan runs within the 0 to 70 Celsius range to reach that lifespan.

At what continuous cutting depth does the 10 W output hit its practical limit?

In sustained operation the module cuts wood up to 20 mm and acrylic up to 30 mm; thicker material requires multiple passes or a higher-power head.
