Logitech

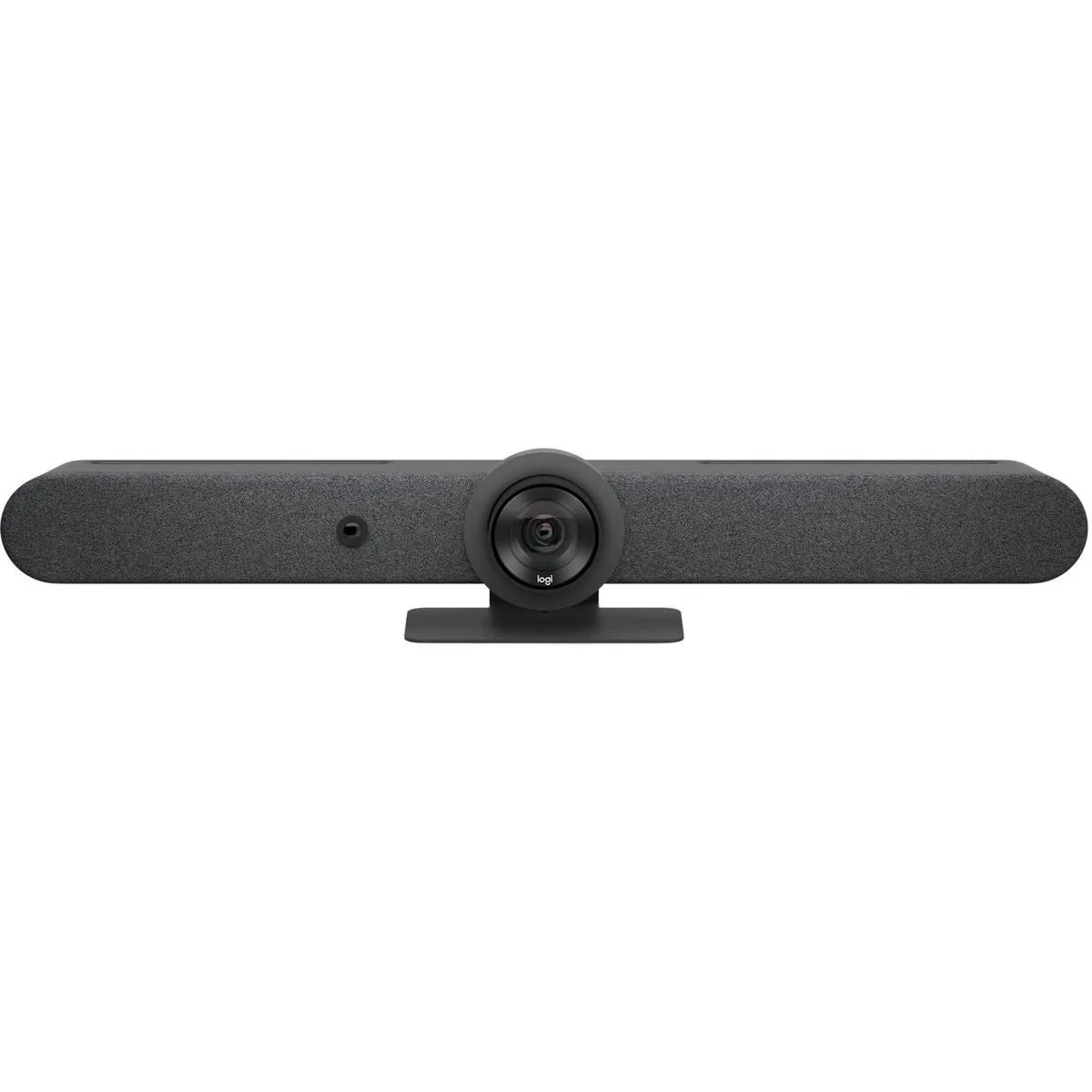

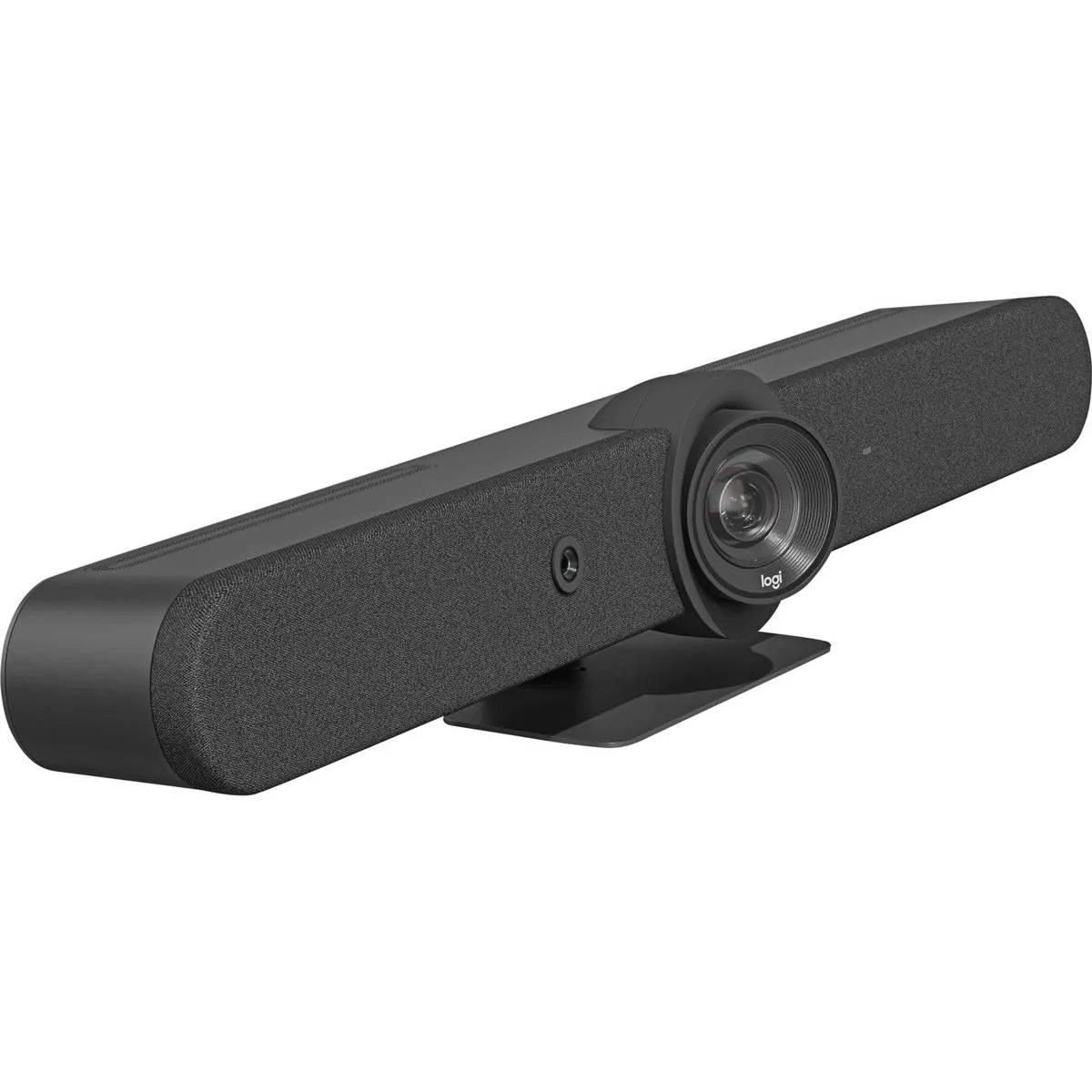

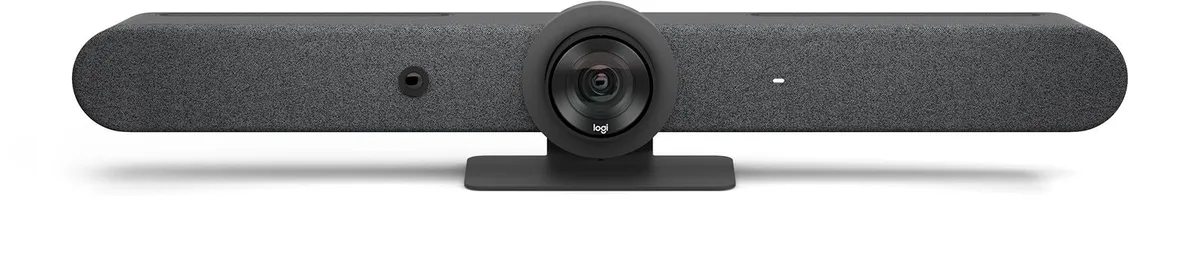

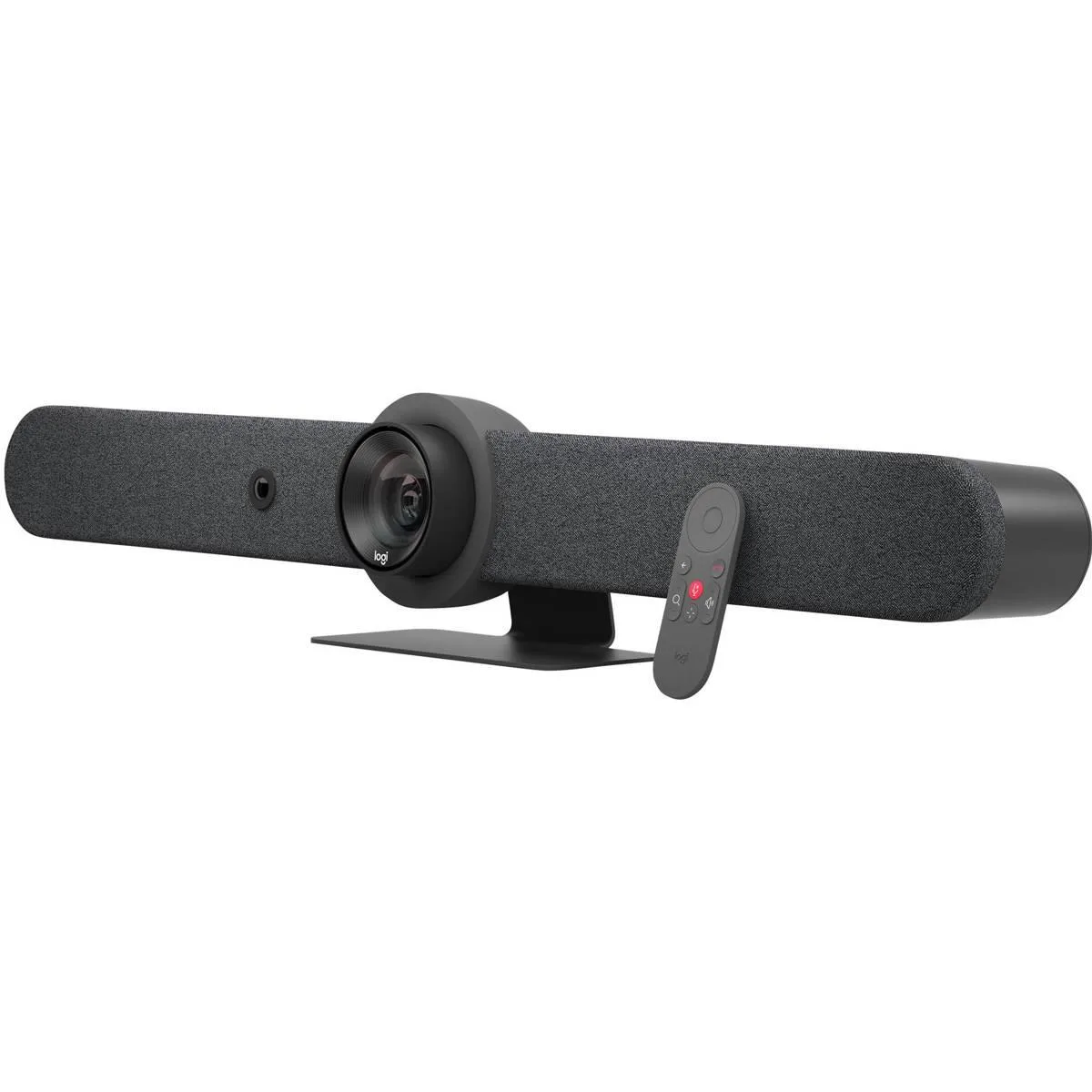

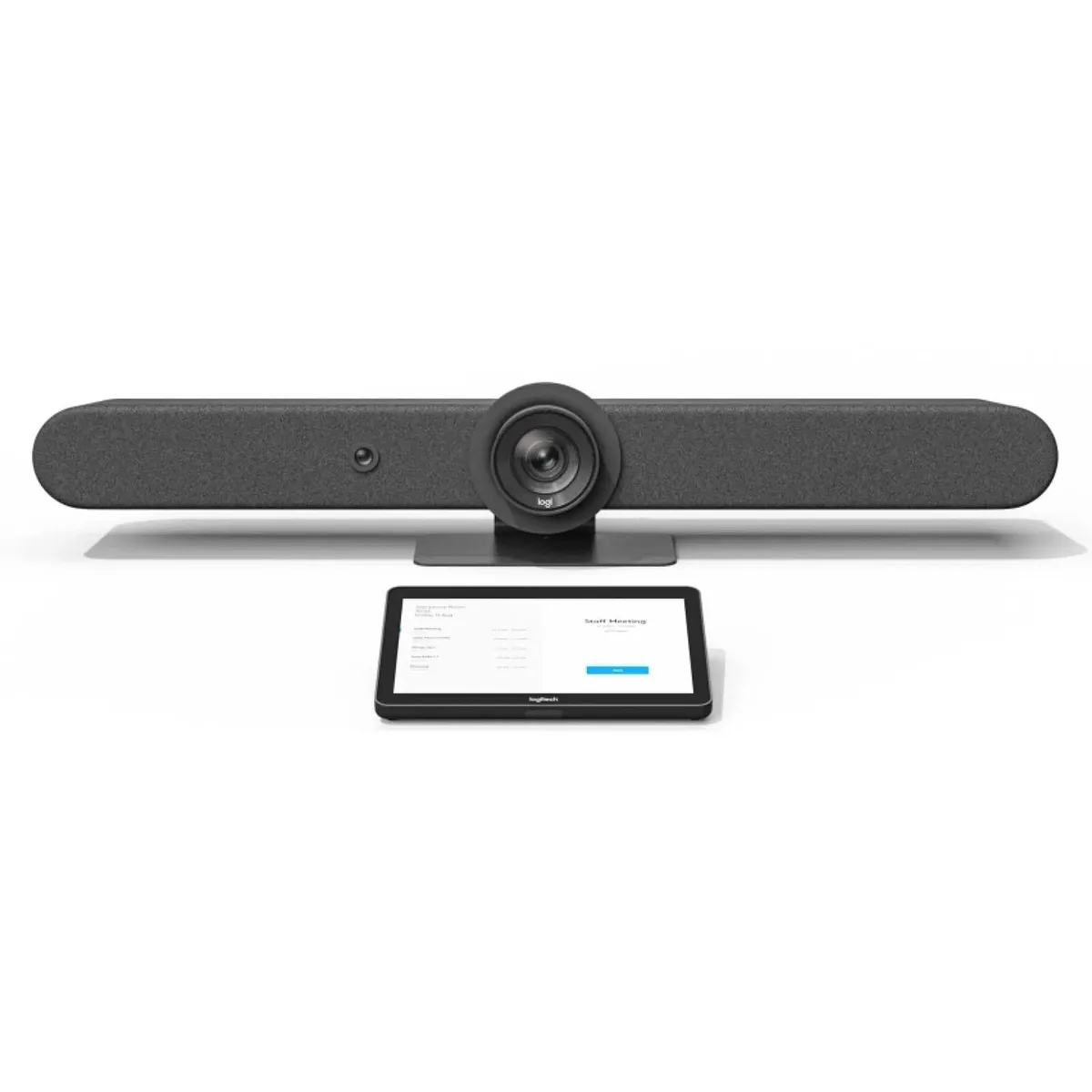

Logitech Rally Bar 960-001564 conferencing device
An all-in-one video bar with a 4K PTZ camera, six beamforming microphones and two 70 mm speakers for rooms up to 23 ft
- TypeVideo Conference Device
- CameraResolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps Pa
- SpecificationBuilt-in Components: 6 beamforming microphones, PTZ camera,
- MicrophoneFrequency Response: 90Hz – 16kHz Sensitivity: >-36dBFS +/-1d
- SpeakerphoneDrivers: 2x 70mm / 2.7 in Output: 90dB SPL @1W, 99dB SPL @8.
- ResolutionResolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
- 4K video at 30fps with motorised pan and tilt
- 15X HD zoom combines 5X optical and 3X digital
- Six beamforming microphones pick up voices from 23 ft away
- Dual 70mm speakers deliver 99dB SPL for clear room audio
- TAA-compliant all-in-one design includes CollabOS and cable management
All-in-one video bar for mid-size rooms
The Logitech Rally Bar 960-001564 combines a motorised PTZ camera, six beamforming microphones and dual speakers in a single desktop enclosure. It captures 4K, 1440p, 1080p, 900p, 720p and SD video at 30 fps with a 90° diagonal field of view. The camera pans ±25° and tilts ±15° while offering 15× HD zoom composed of 5× optical and 3× digital magnification. A built-in AI Viewfinder and cable retention system simplify deployment on a table or mounted surface.
Teams needing simple USB or network connectivity
The unit connects via USB, HDMI outputs and a single Gigabit Ethernet port with wireless LAN support. It suits meeting spaces where an all-in-one appliance running CollabOS can replace separate codec, camera and audio gear. Buyers who require multiple network ports, additional HDMI inputs, ceiling-microphone expansion or a separate codec for custom AV integration should evaluate modular systems instead.
23 ft microphone pickup and 99 dB SPL output
Six MEMS microphones cover a 7 m radius at 48 kHz sampling with a 90 Hz – 16 kHz response. Dual 70 mm drivers deliver 90 dB SPL at 1 W and 99 dB SPL at 8 W for clear speech reinforcement. The 4K UHD content stream reaches 3840×2160 resolution. Larger rooms exceeding the 23 ft pickup range or demanding higher SPL for very deep audiences will need supplementary microphones or external amplification.
Highlights
- 4K video at 30fps with motorised pan and tilt
- 15X HD zoom combines 5X optical and 3X digital
- Six beamforming microphones pick up voices from 23 ft away
- Dual 70mm speakers deliver 99dB SPL for clear room audio
- TAA-compliant all-in-one design includes CollabOS and cable management
Specifications
| Brand | Logitech |
|---|---|
| Model | Rally Bar All-in-One Video Bar TAA Compliant |
| Type | Video Conference Device |
| Part Number | 960-001564 |
| Camera | Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps Pan: Motorized ±25° Tilt: Motorized ±15° Zoom: 15X HD zoom (5X optical, 3X digital available with upcoming software update) Diagonal Field of View: 90° Horizontal Field of View: 82.1° Vertical Field of View: 52.2° Total Room Coverage: 132.1° Horizontal x 82.2° Vertical |
| Specification | Built-in Components: 6 beamforming microphones, PTZ camera, 2 speakers, AI Viewfinder, cable management & retention system, table stand, Logitech CollabOS platform Enclosure: All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference Device Management: Logitech Sync Displays Supported: 2 Display Resolution: Up to 1080p TAA Compliant |
| Microphone | Frequency Response: 90Hz – 16kHz Sensitivity: >-36dBFS +/-1dB @ 1Pa Microphone Data Rate Output: 48 kHz Pickup Range: 23 ft (7 m) Beamforming Elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams Audio Processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector) Noise Suppression: AI filter Add-on Mics: Supports up to 4 additional Rally Mic Pods for larger conference rooms |
| Speakerphone | Drivers: 2x 70mm / 2.7 in Output: 90dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter Sensitivity: 90+/-3dB SPL at 1W, ½ meter THD: 1kHz < 2% Speaker Sampling Rate: 48 kHz |
| Resolution | Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps |
| Power | Power Supply: Auto-sensing Operating Voltage/Power: 100-240V, 19V, 4.74A |
| Dimensions | Height: 164 mm / 6.46 in Width: 910 mm / 2.99 ft Depth: 130.5 mm / 5.14 in |
| Weight | Weight: 7.08 kg / 15.6 lbs |
| Shipping weight | 9.53 kg |
| Package size | 991 × 216 × 203 mm |
Questions about this item
What display connections does the Rally Bar need to show 4K UHD content at 3840 x 2160?
The device provides two HDMI outputs for connecting one or two displays that support 4K UHD resolution at 3840 x 2160.
Can the Rally Bar be managed over an existing 10/100/1000Base-T wired network?
Yes, it includes a single Gigabit Ethernet RJ-45 port compatible with 10/100/1000Base-T networks for wired management and conferencing traffic.
How can I confirm the camera is framing participants correctly after installation?
Use the motorised pan (±25°), tilt (±15°) and 15× HD zoom (5× optical) to adjust the 90° diagonal field of view until all participants are centred in the 4K video preview.
