Linksys
Linksys WMP600N PCI Dual-Band Wi-Fi Adapter
PCI desktop Wi-Fi adapter with dual-band 2.4/5 GHz Wireless-N Draft 2.0 and two external antennas
- TypePCIE Wi-Fi Adapter
- StandardsIEEE 802.11a/b/g, IEEE 802.11n Draft 2.0
- SecurityWEP, WPA & WPA2 Personal, WPA & WPA2 Enterprise
- InterfacePCI
- Frequency Band2.4 GHz / 5 GHz
- LEDsLink/Act
- Dual-band operation on 2.4 GHz and 5 GHz reduces interference
- MIMO technology with two external dipole antennas extends range and cuts dead spots
- WPA2 encryption delivers industrial-strength privacy protection
- PCI interface installs directly into a desktop expansion slot
- Supports legacy 802.11a/b/g networks for investment protection
PCI Wireless Adapter with Dual-Band

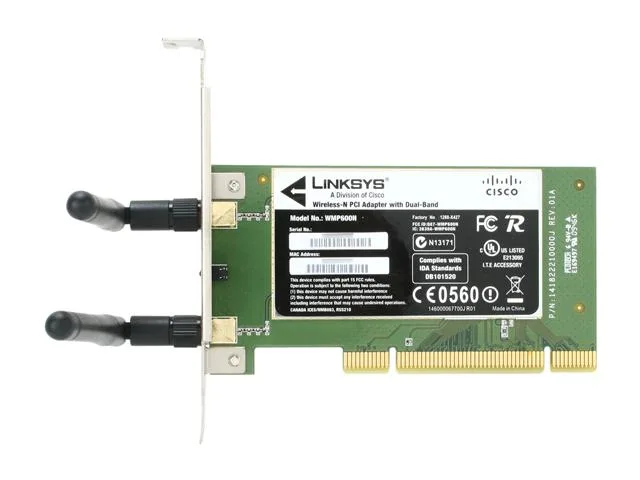

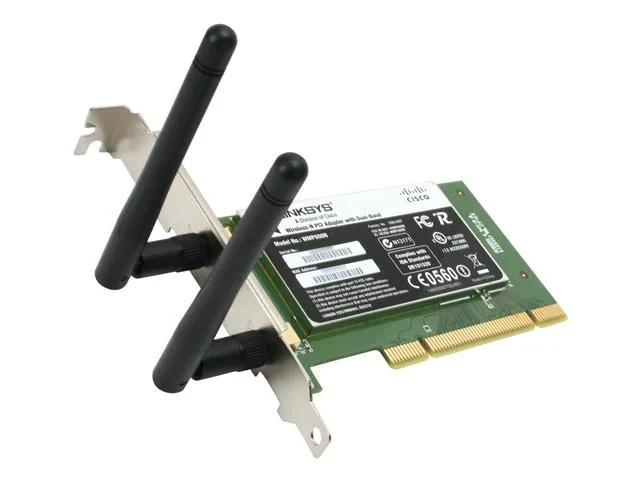

The Linksys WMP600N is a PCI wireless adapter that adds dual-band Wi-Fi to a desktop computer. It supports IEEE 802.11a/b/g and the draft 802.11n 2.0 standard. Two external dipole antennas provide MIMO signal coverage on 2.4 GHz and 5 GHz bands. Security options include WEP, WPA and WPA2 in both personal and enterprise modes.
Compatibility and Use Cases
This adapter suits owners of older desktops that have a free PCI slot and run Windows 2000, XP, Vista or Vista 64-bit. It is not for systems that only offer PCI Express x1 or M.2 slots, nor for users who need driver support for Windows 7 or later operating systems.
Draft 802.11n 2.0 Standard
The card implements the draft 802.11n 2.0 specification, which defines its maximum link rate and feature set. Buyers should confirm that their router or access point also operates on this draft to achieve the intended performance.
Highlights
- Dual-band operation on 2.4 GHz and 5 GHz reduces interference
- MIMO technology with two external dipole antennas extends range and cuts dead spots
- WPA2 encryption delivers industrial-strength privacy protection
- PCI interface installs directly into a desktop expansion slot
- Supports legacy 802.11a/b/g networks for investment protection
Specifications
| Brand | Linksys |
|---|---|
| Model | WMP600N |
| Type | PCIE Wi-Fi Adapter |
| Standards | IEEE 802.11a/b/g, IEEE 802.11n Draft 2.0 |
| Security | WEP, WPA & WPA2 Personal, WPA & WPA2 Enterprise |
| Interface | PCI |
| Frequency Band | 2.4 GHz / 5 GHz |
| LEDs | Link/Act |
| Transmitted Power | 802.11n @ 2.4GHz: 13.5dBm ±1dBm 802.11n @ 5GHz: 12dBm ±1.5dBm 802.11g: 13.5dBm ±1dBm 802.11a: 12dBm ±1.5dBm |
| Antenna | 2 External Dipole Antennas |
| System Requirements | Windows 2000, XP, Vista, or Vista 64-bit |
| Features | High-speed Dual-Band Wireless-N (Draft 802.11n) networking for your desktop PC Supports up to 128-bit encryption security MIMO technology uses multiple radios to create a robust signal that travels farther and reduces dead spots Easy to use Setup Wizard Performance Investment Protection: Compatibility with Wireless-A (802.11a), Wireless-B (802.11b) and Wireless-G (802.11g) Standards |
| Dimensions | 4.72" x 2.54" x 0.06" |
| Weight | 0.2 lbs. |
| Temperature | -20°C - 70°C |
| Humidity | 10% - 85%, Non-Condensing |
| Shipping weight | 0.27 kg |
| Package size | 225 × 152 × 47 mm |
Questions about this item
Do the two external dipole antennas on the WMP600N ever need replacing?
The antennas are fixed external dipoles and are not designed to be user-replaceable; if one is damaged the whole adapter would need to be swapped.
What throughput ceiling appears first when the WMP600N runs at 5 GHz under continuous load?
The 5 GHz radio is limited to IEEE 802.11n Draft 2.0 speeds and a transmit power of 12 dBm ±1.5 dBm, so the draft‑n PHY rate becomes the bottleneck before the PCI bus saturates.
How much heat does the WMP600N add to a chassis during all‑day operation?
The card is rated for an operating range of -20 °C to 70 °C and draws only modest power through the PCI slot, so it adds minimal heat in a normally ventilated desktop.
