Two white vertical towers, each 3.1 inches square by 7.3 inches tall, matte finish, single LED on top

Linksys

Linksys WHW0302 Velop Tri-band Mesh Wi-Fi System 2-Pack

SKU CH-Y0RE-DV2MS MPN WHW0302

Two tri-band mesh nodes deliver whole-home Wi-Fi coverage up to 4000 sq. ft. with 2200 Mbit/s speed and six internal antennas

  • ColorWhite
  • TypeOffice Products
  • WAN Ports1 x Gigabit Ethernet, configurable as 1 x WAN + 1 x LAN or a
  • Wi-Fi Standards802.11a, 802.11g, 802.11n, 802.11ac, 802.3ab, 802.3u
  • Frequency Band2.4 GHz / 5 GHz
  • SecurityWPA2 personal

Option 2-Pack

  • Tri-band mesh delivers full internet speed across the home
  • 4,000 sq ft coverage from two nodes eliminates dead zones
  • Six internal antennas with high-power amplifiers boost signal reach
  • Gigabit Ethernet ports provide wired backhaul or device connections
  • Simple setup managed through the Linksys app

Tri-band Mesh System for Large Homes

The Linksys WHW0302 is a two-node tri-band mesh Wi-Fi system designed to cover up to 4000 square feet. It targets households that need a single network name across multiple floors without running cables between nodes. Each node uses six internal antennas and high-powered amplifiers to distribute internet speed to the edge of the coverage area.

Practical Limits of Tri-band Mesh

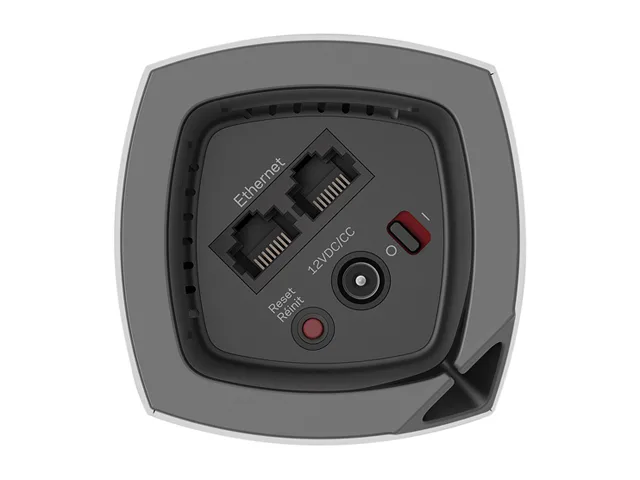

The system operates on 2.4 GHz and 5 GHz bands using 802.11a, g, n, and ac standards with a combined wireless transmission speed of 2200 Mbit/s. Each node provides one Gigabit Ethernet WAN port configurable as WAN plus LAN or dual LAN, giving two RJ-45 ports total per unit. There are no USB ports and no Power over Ethernet support, so wired backhaul is limited to the available Ethernet ports and wireless backhaul consumes one 5 GHz radio.

4000 sq ft Coverage Decides Fit

The quoted 4000 square foot coverage figure is the single specification that determines whether this two-pack matches the property size. Larger homes or dense layouts with thick walls may need additional nodes, while smaller flats will not use the full range. Buyers who need more coverage should plan for extra nodes rather than expecting this pair to exceed its rated area.

Highlights

  • Tri-band mesh delivers full internet speed across the home
  • 4,000 sq ft coverage from two nodes eliminates dead zones
  • Six internal antennas with high-power amplifiers boost signal reach
  • Gigabit Ethernet ports provide wired backhaul or device connections
  • Simple setup managed through the Linksys app

Specifications

BrandLinksys
ModelWHW0302
ColorWhite
TypeOffice Products
WAN Ports1 x Gigabit Ethernet, configurable as 1 x WAN + 1 x LAN or as 2 x LAN
Wi-Fi Standards802.11a, 802.11g, 802.11n, 802.11ac, 802.3ab, 802.3u
Frequency Band2.4 GHz / 5 GHz
SecurityWPA2 personal
Antenna6 x internal antennas and high powered amplifiers
LEDOne multi-colored LED for power, status, etc.
ButtonReset, Power
SpecificationTransmitted Power in dBm:
2.4 GHz output power per chain
802.11b (1 Tx): 25.5 +/-1.5 dBm Ch.6 @ All rates
802.11g (1 Tx): 25.5 +/-1.5 dBm Ch.6 @ 6 Mbps, 22 +/-1.5 dBm Ch.6 @ 54 Mbps
802.11n 20 MHz: 25.5 +/-1.5 dBm Ch.6 @ MCS0
802.11n 20 MHz: 21 +/-1.5 dBm Ch.6 @ MCS15
802.11n 20 MHz: 18 +/-1.5 dBm Ch.6 @ 256-QAM
802.11n 40 MHz: 21 +/-1.5 dBm Ch.6 @ MCS0
802.11n 40 MHz: 21 +/-1.5 dBm Ch.6 @ MCS15
802.11ac 40 MHz: 18 +/-1.5 dBm Ch.6 @ 256-QAM
5 GHz (U-NII-1) output power per chain
802.11a: 21.5 +/-1.5 dBm Ch.36 @ all rates
802.11a: 25 +/-1.5 dBm Ch.40/44/48 @ 6 Mbps
802.11a: 22 +/-1.5
Dimension3.10" x 3.10" x 7.30" (per Node )
Weight5.45 lbs.
Operating Humidity10% to 80% Non-Condensing
Operating Temperature0 degree C to 40 degree C (32 degree F to 104 degree F)
FeaturesPowerful Tri-Band Wi-Fi System distribute 100% Internet speed
Mesh Wi-Fi solution built to connect with each other in a single network configuration.
Powerful Wi-Fi range up to 4,000 square feet
Simultaneous Tri-Band Wi-Fi Mesh System
Seamless Wi-Fi
Easy App Controls
AutoFix & Instant Alerts
Works with Alexa
Shipping weight2.50 kg
Package size312 × 257 × 114 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I choose the 2-pack or add a third node for my 4000 sq. ft. home?

The 2-pack is rated for up to 4000 sq. ft. of coverage. A third node extends range further if you have thick walls or multiple floors.

What does the 2200 Mbit/s wireless speed mean for daily use?

That is the combined tri-band throughput across one 2.4 GHz and two 5 GHz radios. Real-world device speeds will be lower due to overhead and distance.

How does the Gigabit Ethernet WAN port limit my internet plan?

The single Gigabit WAN port caps wired internet input at 1 Gbps. Plans faster than that will be bottlenecked at the mesh gateway node.
