Silver rack-mount network switch with 24 RJ45 ports and front status LEDs

Linksys

Linksys PC22224 ProConnect II 2224 24-port 10/100 network switch

SKU CH-V7RY-2HAJW MPN PC22224

A 24-port 10/100 managed switch with two expansion slots for optional Gigabit modules and IEEE 802.1Q VLAN support for up to 128 groups

  • StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3x, IEEE 802.
  • Primary Ports24 x RJ45
  • Primary Port Speed10/100Mbps
  • MAC Address Table32K
  • VLAN SupportIEEE 802.1Q VLAN support for up to 128 groups
  • Buffer Memory256KB
  • 24 auto-sensing 10/100 ports simplify cabling
  • 2 expansion slots accept optional gigabit modules for future growth
  • IEEE 802.1Q VLANs segment traffic into 128 groups
  • 32 K MAC table and 256 KB buffer keep data flowing
  • Stack up to 8 units and manage them as one

Linksys ProConnect II 2224 24-Port Switch

The Linksys PC22224 ProConnect II 2224 is a Layer 2 manageable Ethernet switch providing 24 RJ45 ports operating at 10/100Mbps. It includes two expansion slots for optional Gigabit modules and supports stacking up to eight units for simplified administration.

Ideal for Small Business Networks

This switch suits small to medium businesses needing basic VLAN segmentation with up to 128 IEEE 802.1Q groups and SNMP management via a web browser. It is not for organisations requiring Layer 3 routing, full Gigabit connectivity on every port, or Power over Ethernet functionality.

10/100Mbps Port Speed Defines Throughput

Every fixed port negotiates at 10Mbps or 100Mbps only, so total wire-speed capacity is limited to Fast Ethernet rates. Gigabit uplinks are only available by purchasing separate modules for the two expansion slots.

Highlights

  • 24 auto-sensing 10/100 ports simplify cabling
  • 2 expansion slots accept optional gigabit modules for future growth
  • IEEE 802.1Q VLANs segment traffic into 128 groups
  • 32 K MAC table and 256 KB buffer keep data flowing
  • Stack up to 8 units and manage them as one

Specifications

BrandLINKSYS
ModelPC22224
StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1q, IEEE 802.3ab, IEEE 802.1d, IEEE 802.3ad
Primary Ports24 x RJ45
Primary Port Speed10/100Mbps
MAC Address Table32K
VLAN SupportIEEE 802.1Q VLAN support for up to 128 groups
Buffer Memory256KB
CablingCat 5 Ethernet Cable, Cat 5e Ethernet Cable
LEDsLink/Act, 10/100, FDX/COL, FAN, TEMP,
Power
PowerAC 100~240V/100W
Dimensions16.9" x 13.8" x 1.8"
Weight8.8 lbs.
Temperature0°C to 50°C (32°F to 122°F)
Humidity20% - 95%, Non-condensing
Features24 10/100 Auto-MDI/MDI-X ports and 2 Expansion Slots for Optional Gigabit Modules
IEEE 802.1Q VLAN support for up to 128 groups
IGMP Multicast Filtering and Snooping
Supports 3 Port Trunking groups that include up to 4 10/100 ports and up to 2 ports for the Gigabit modules
Stacking support for up to 8 switches in one stack
Manageable via Console, Telnet, Web, and SNMP/RMON
IEEE 802.1d Spanning Tree support for redundant connections

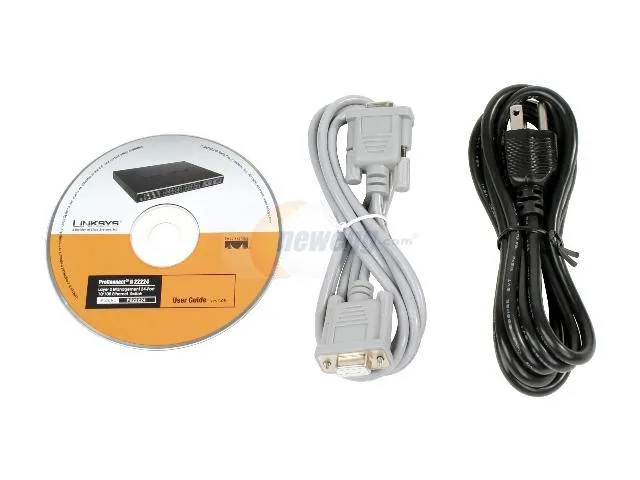

Package ContentsPC22224
Console Cable
Resource Disk
Power Cord
Shipping weight4.08 kg
Package size432 × 356 × 51 mm

Questions about this item

What rack width and clearance do the 16.9 x 13.8 x 1.8 inch dimensions require?

The chassis measures 16.9 inches wide by 13.8 inches deep by 1.8 inches high, so it fits a standard equipment rack and needs at least 1.8 inches of vertical space.

How do the auto-MDI/MDI-X ports and console cable simplify first-time setup?

The 24 RJ45 ports auto-negotiate 10/100 speed and crossover, so any Cat 5 or Cat 5e patch cable works; connect the supplied console cable to the management port for initial IP configuration.
