Silver metal rackmount chassis with 24 RJ45 ports and LED indicators

Linksys

Linksys LGS124P 24-Port Gigabit PoE+ Network Switch

SKU CH-REN0-VHSQB MPN LGS124P

A 24-port Gigabit switch with 12 PoE+ ports delivering a 120 W power budget for access points or cameras

  • FormatRackmount
  • StandardsIEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3az, 802.3af, and 8
  • Network Management TypeUnmanaged
  • Primary Ports24 x RJ45 (1-6,13-18 PoE+)
  • Primary Port Speed10/100/1000Mbps
  • MAC Address Table8K
  • 12 PoE+ ports deliver up to 120 W total power for cameras and access points
  • 24 Gigabit RJ45 ports provide 48 Gbps non-blocking switching capacity
  • Unmanaged operation requires no configuration for instant deployment
  • Rackmount metal enclosure with internal power supply fits standard installations
  • Energy-efficient IEEE 802.3az support reduces power consumption during low traffic

24-Port Gigabit PoE+ Switch

The Linksys LGS124P is a rackmountable 24-port Gigabit switch with 12 PoE+ ports on ports 1-6 and 13-18. It provides a dedicated PoE power budget of 120 W for connected devices. The unmanaged design requires no configuration and operates on 100-240 VAC power. A metal enclosure and internal power supply suit commercial installations.

Suited For And Not Suited

This switch fits networks needing up to 12 powered devices such as IP cameras or wireless access points. It supports 10/100/1000 Mbps speeds on every port with a 48 Gbps non-blocking bandwidth. Buyers needing more than 12 PoE+ connections or a total PoE budget above 120 W should consider other options. Managed features such as VLANs or SNMP are not available on this model.

120 W PoE+ Budget

The 120 W PoE+ budget is the single specification that determines whether this switch can power your deployment. Each of the 12 PoE+ ports delivers up to 30 W, but the shared 120 W limit caps simultaneous full-power usage. Calculate the total draw of all powered devices before purchase to ensure the budget covers every connected endpoint.

Highlights

  • 12 PoE+ ports deliver up to 120 W total power for cameras and access points
  • 24 Gigabit RJ45 ports provide 48 Gbps non-blocking switching capacity
  • Unmanaged operation requires no configuration for instant deployment
  • Rackmount metal enclosure with internal power supply fits standard installations
  • Energy-efficient IEEE 802.3az support reduces power consumption during low traffic

Specifications

BrandLINKSYS
ModelLGS124P
FormatRackmount
StandardsIEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3az, 802.3af, and 802.3at (PoE+)
Network Management TypeUnmanaged
Primary Ports24 x RJ45 (1-6,13-18 PoE+)
Primary Port Speed10/100/1000Mbps
MAC Address Table8K
ProtocolsTCP/IP
PoEYes
LEDsLink, speed, activity, and PoE indicators
Power100~240VAC, 50/60Hz
Dimensions17.32" x 7.87" x 1.73"
Weight6.08 lbs.
Temperature0°C to 50°C (32°F to 122°F)
Humidity10% - 90%, Non-condensing
FeaturesBandwidth: 48 Gbps (non-blocking)
24-ports switch with 12 PoE+ ports (ports 1-6 and 13-18) and dedicated PoE power budget of 120 W
Internal Power Supply
Enclosure Type: Metal
Mounting: Rack mount
1 x Fan
Power-Saving: Cable connected detection Sleep mode
Quality of Service: 802.1p and DSCP
Full line rate and forwarding rate of 64B frame at: 1.488 Mpps for 1000M port, 0.1488 Mpps for 100M port, 0.01488 Mpps for 10M port
Minimum System Requirements: Connected devices need Ethernet connectivity and Ethernet cables

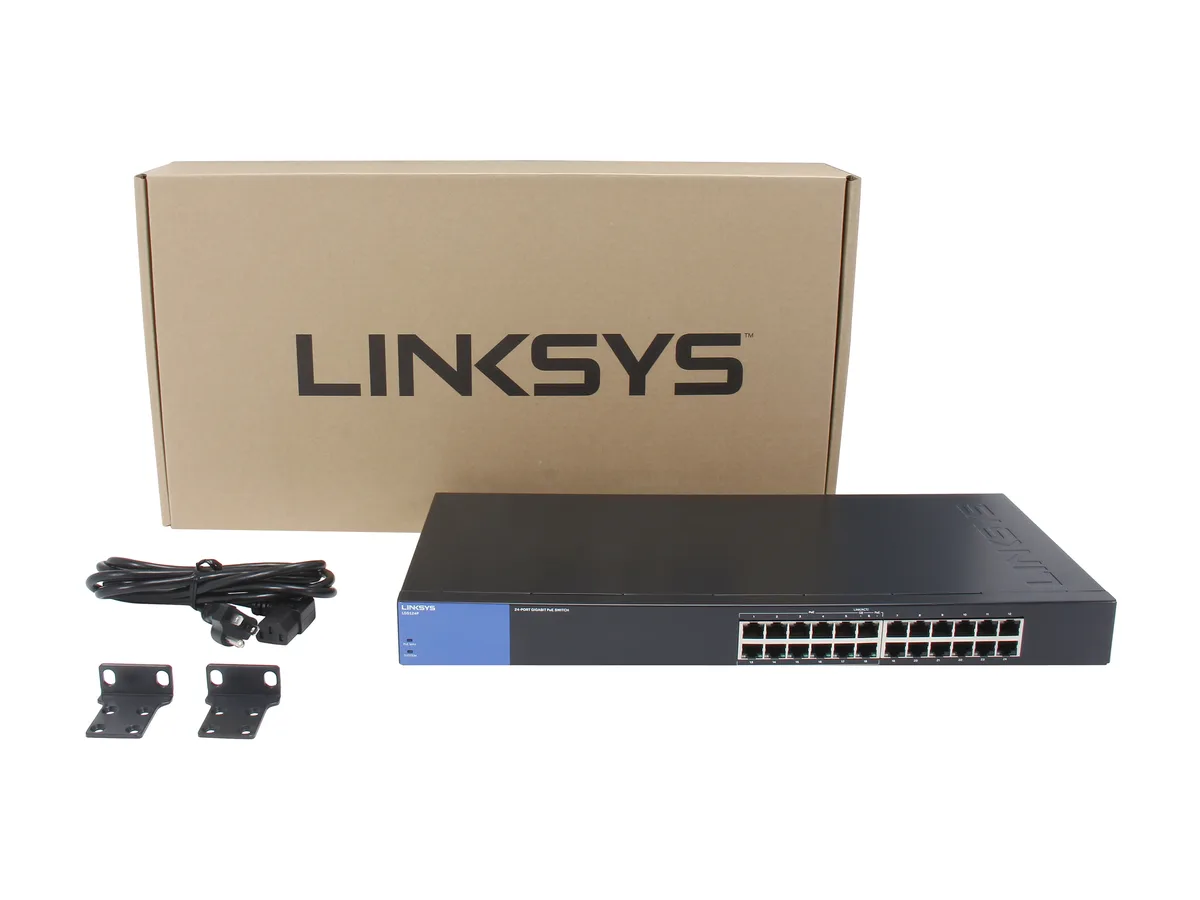

Package ContentsLinksys LGS124P 24-Port Gigabit Ethernet PoE Switch
Power Adapter
Quick Start Guide
Shipping weight3.40 kg
Package size500 × 292 × 91 mm

Questions about this item

Which ports on the LGS124P provide PoE+ power and what is the total power budget?

Ports 1 through 6 and 13 through 18 deliver PoE+ with a combined power budget of 120 W.

What is the maximum switching capacity before the non-blocking fabric becomes the bottleneck?

The switch offers 48 Gbps of non-blocking bandwidth, so sustained traffic above that aggregate rate will hit the fabric limit first.

How much heat and noise should I expect when the switch runs continuously in a rack?

It operates from 0 °C to 50 °C with a single internal fan and an internal power supply, so expect moderate fan noise and typical rackmount heat output.
