Silver metal desktop switch with sixteen RJ45 ports and LED indicators

Linksys

Linksys LGS116P 16-Port Gigabit PoE+ Network Switch

SKU CH-249Y-4JCP6 MPN LGS116P

A 16-port Gigabit desktop switch with eight PoE+ ports and an 80 W power budget for powering access points or cameras

  • FormatDesktop
  • StandardsIEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3az, 802.3af, and 8
  • Network Management TypeUnmanaged
  • Primary Ports16 x RJ45 (1-8 PoE+)
  • Primary Port Speed10/100/1000Mbps
  • MAC Address Table8K
  • 16 Gigabit ports for high-speed wired connections
  • 8 PoE+ ports deliver up to 80 W for cameras and access points
  • Metal desktop enclosure with wall-mount option saves rack space
  • 32 Gbps non-blocking bandwidth keeps traffic flowing at wire speed
  • IEEE 802.3az Energy Efficient Ethernet reduces power when links are idle

16-Port Desktop Switch with 8 PoE+ Ports

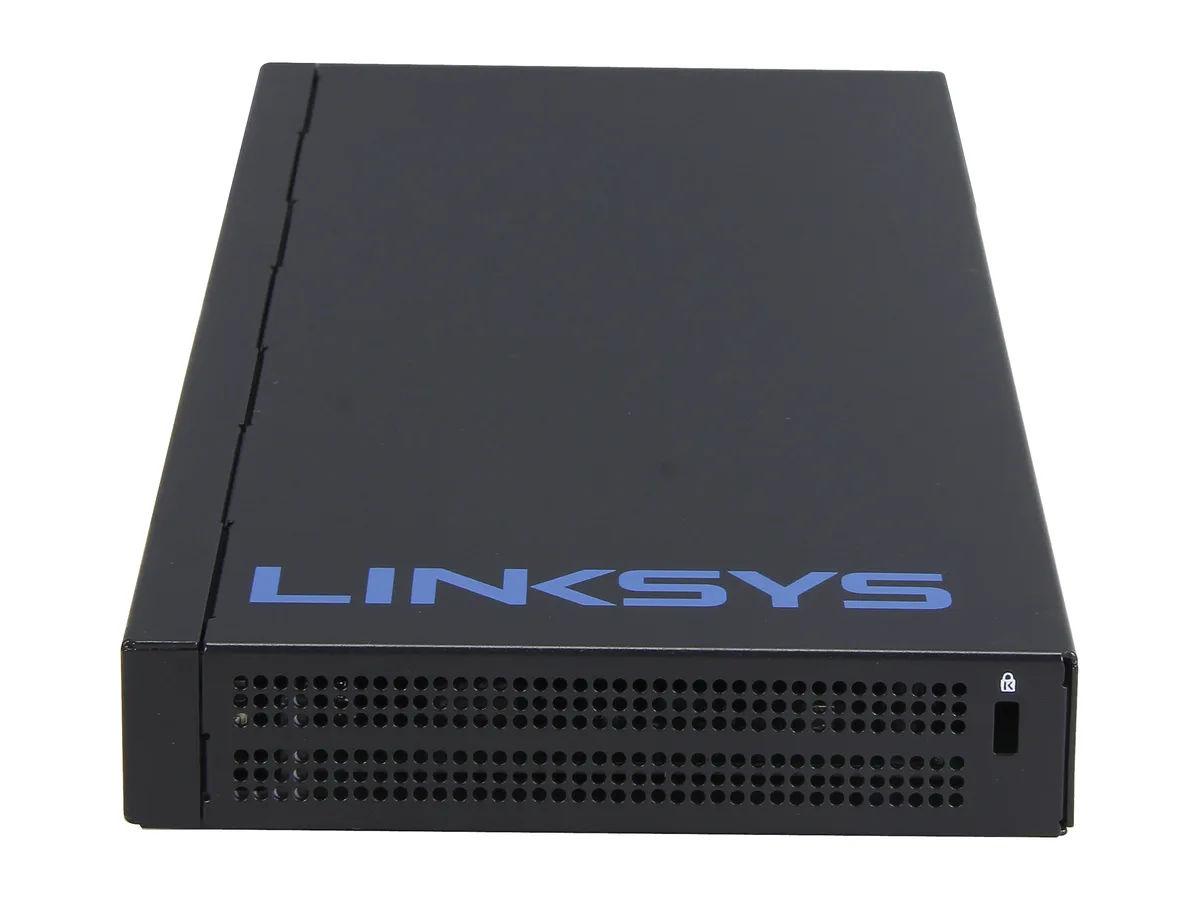

The Linksys LGS116P is a 16-port Gigabit Ethernet switch in a metal desktop enclosure. Eight of the ports support Power over Ethernet Plus for devices such as access points or IP cameras. The unit is unmanaged and operates on a 54 VDC external power adapter.

Suits Small Offices Adding Powered Devices

This switch fits networks that need a few PoE+ connections without a managed infrastructure. It does not suit installations that require VLAN configuration, link aggregation or remote monitoring. Builders needing more than eight powered ports or a higher total power budget should look at a different model.

80-Watt Total PoE+ Budget Decides Fit

The dedicated PoE power budget is 80 watts shared across the first eight ports. If the combined draw of connected devices exceeds this limit, some ports will not deliver power. Verify the power requirements of every attached device before deployment.

Highlights

  • 16 Gigabit ports for high-speed wired connections
  • 8 PoE+ ports deliver up to 80 W for cameras and access points
  • Metal desktop enclosure with wall-mount option saves rack space
  • 32 Gbps non-blocking bandwidth keeps traffic flowing at wire speed
  • IEEE 802.3az Energy Efficient Ethernet reduces power when links are idle

Specifications

BrandLINKSYS
ModelLGS116P
FormatDesktop
StandardsIEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3az, 802.3af, and 802.3at (PoE+)
Network Management TypeUnmanaged
Primary Ports16 x RJ45 (1-8 PoE+)
Primary Port Speed10/100/1000Mbps
MAC Address Table8K
ProtocolsTCP/IP
PoEYes
LEDsLink, speed, activity, and PoE indicators
Power54 VDC, 1.66 A
Dimensions11.02" x 4.72" x 0.98"
Weight1.81 lbs.
Temperature0°C to 50°C (32°F to 122°F)
Humidity10% - 90%, Non-condensing
FeaturesBandwidth: 32 Gbps (non-blocking)
16-port switch with 8 PoE+ ports (first 1-8 ports) and dedicated PoE power budget of 80 W
Enclosure Type: Metal
Mounting: Wall mount
Gigabit Performance
Power-Saving: Cable connected detection Sleep mode
Quality of Service: 802.1p and DSCP
External Power Supply
Full line rate and forwarding rate of 64B frame at: 1.488 Mpps for 1000M port, 0.1488 Mpps for 100M port, 0.01488 Mpps for 10M port
Minimum System Requirements: Connected devices need Ethernet connectivity and Ethernet cables

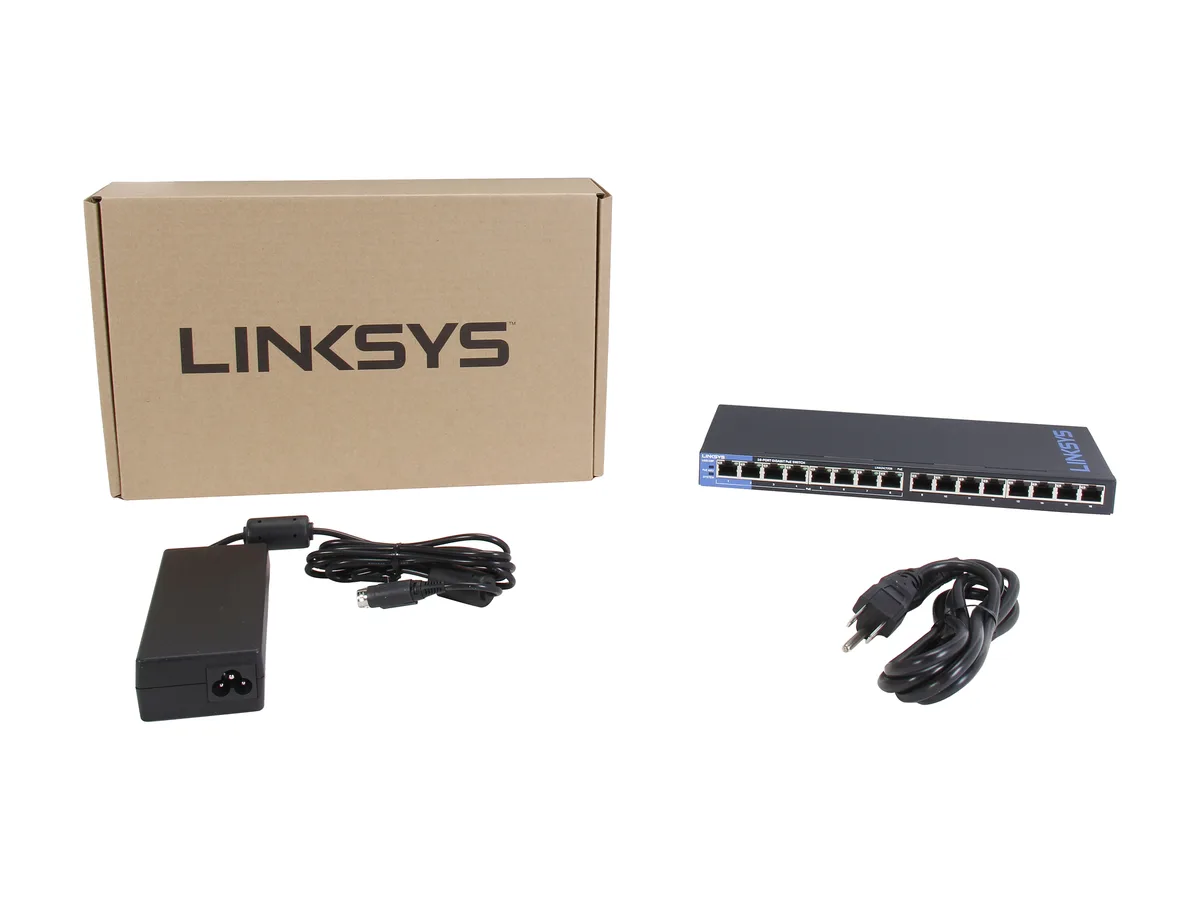

Package ContentsLinksys LGS116P 16-Port Gigabit Ethernet PoE Switch
Power Adapter
Quick Start Guide
Shipping weight1.64 kg
Package size345 × 229 × 81 mm

Questions about this item

Should I choose the 16-port model or look for a smaller switch?

This model provides 16 Gigabit RJ45 ports with the first eight supporting PoE+, giving you 16 total connections and powered ports for up to eight devices.

What does the 32 Gbps non-blocking bandwidth mean once the switch is in my network?

The 32 Gbps backplane allows all 16 ports to run at full 1000 Mbps simultaneously without internal congestion.

Which PoE standard does the switch use and what does it cap in practice?

Ports 1 through 8 follow the 802.3at PoE+ standard and share a dedicated 80 W power budget for connected devices.
