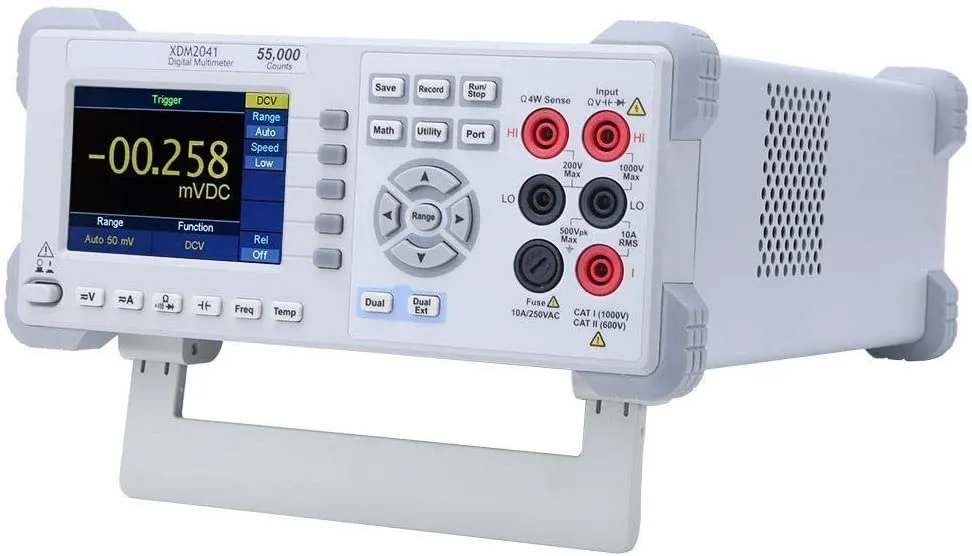

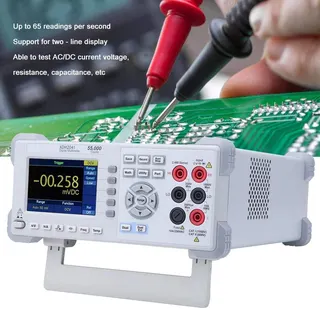

Grey desktop multimeter with 3.7in screen and test leads

Lilliput

Lilliput OWON XDM2041 55000-count desktop multimeter measurement tool

SKU CH-RT20-KPPTR

Measures AC/DC voltage, current, resistance, capacitance, frequency and temperature with 55,000-count resolution, true-RMS, a 3.7-inch two-line display and 65 readings per second

  • 55 000-count resolution reveals tiny signal changes
  • 7 in display shows two measurement lines simultaneously
  • True RMS delivers accurate AC readings on non-sinusoidal waveforms
  • 65 readings per second capture fast-changing signals
  • Built-in data logging stores up to 1 000 points for later analysis

Precision Desktop Multimeter

The OWON XDM2041 is a bench-top digital multimeter with a 3.7in display and 55000-count resolution. It measures AC and DC voltage, current, resistance, capacitance, frequency, and temperature. True RMS sensing ensures accurate readings on non-sinusoidal waveforms. A two-line display shows simultaneous values for faster analysis.

Lab and Service Use

This instrument suits engineers, technicians, educators, and radio enthusiasts who need high-resolution bench measurements. Data logging captures up to 1000 points at intervals from 15ms to 9999s. Four-wire resistance and diode test functions support component characterisation. Buyers needing handheld portability or CAT III 1000V safety ratings should consider other form factors.

55000-Count Resolution

The 55000-count display provides 0.001mV resolution on the 50mV DC range and 0.01uA on the 500uA DC range. This granularity decides whether small-signal work or precision calibration tasks are practical. Lower-count meters cannot resolve these increments.

Highlights

  • 55 000-count resolution reveals tiny signal changes
  • 7 in display shows two measurement lines simultaneously
  • True RMS delivers accurate AC readings on non-sinusoidal waveforms
  • 65 readings per second capture fast-changing signals
  • Built-in data logging stores up to 1 000 points for later analysis

Specifications

BrandOWON
ModelXDM2041

Questions about this item

Which measurement range should I select for a 5 V DC rail?

Use the 5.0000 V DC range; it resolves 0.0001 V with a basic accuracy of 0.025 % + 5 counts.

What does the 55 000-count specification mean when I am measuring a signal?

It gives a maximum reading of 55 000 digits, so a 5 V signal can display down to 0.1 mV resolution on the 5 V range.

What interface standard does the multimeter use and what practical limit does it impose?

The front-panel terminals accept standard 4 mm banana plugs, limiting connections to leads and accessories with that plug type.
