7-inch IPS field monitor matte black slim rectangular body HDMI ports battery plate back

Lilliput

Lilliput A7S 7" 1920x1200 IPS Field Monitor

SKU CH-SR1K-7RPK5

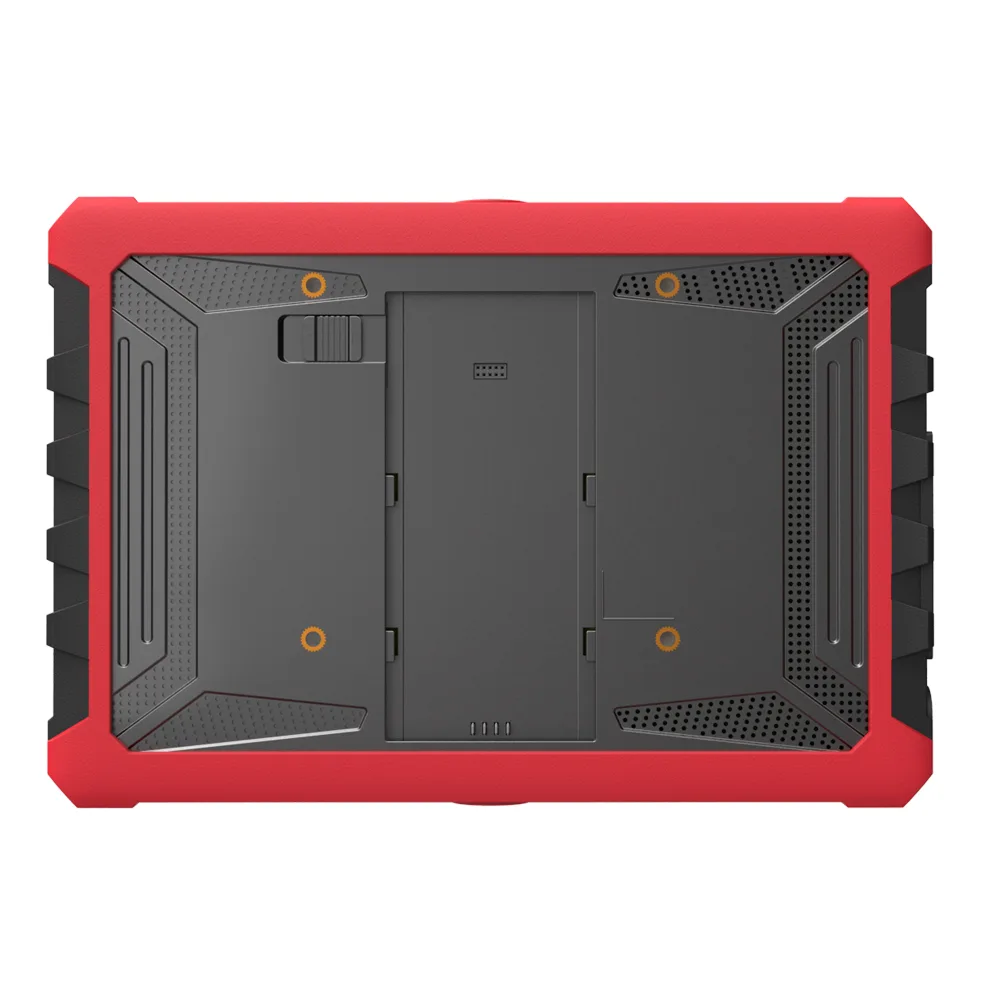

A 7-inch IPS field monitor displaying 1920×1200 resolution at 500 cd/m² brightness with 1000:1 contrast, HDMI input and output, and dual battery-plate support for Sony NP-F970 or Canon LP-E6 packs

  • 7-inch 1920×1200 IPS panel gives sharp 500 cd/m² monitoring
  • 170° horizontal and vertical viewing angles keep the image consistent off-axis
  • 4 HDMI input and output pass 4K signals through to other gear
  • Powers from DC 7–24 V or Sony NP-F970 and Canon LP-E6 batteries
  • Weighs 320 g at 182.1 × 124 × 20.5 mm for lightweight rigging

Compact 7-inch field monitor

The Lilliput A7S is a 7-inch IPS field monitor with a 1920x1200 resolution, 500 cd/m² brightness and 1000:1 contrast. It accepts 4K video through a single HDMI 1.4 input and loops the signal via an HDMI output. The unit weighs 320 g and measures 182.1 x 124 x 20.5 mm. Power comes from a DC 7-24 V supply or compatible Sony NP-F970 and Canon LP-E6 batteries, which are not included.

Camera operators needing on-camera monitoring

Videographers using DSLR or mirrorless bodies such as the Sony A7S II, A6500, Panasonic GH5 or Canon 5D Mark IV will find the focus peaking, false colour, waveform, histogram and audio level meters useful for exposure and focus verification. The monitor lacks SDI connectivity, so crews requiring serial digital interface workflows should look elsewhere. It also has no built-in recording function, so users wanting an integrated recorder must consider a different device.

Single HDMI 1.4 input and loop-through

The monitor provides one HDMI 1.4 input and one HDMI output for signal pass-through, supporting 4K sources at up to 1.4 bandwidth. This single digital interface determines whether the A7S fits a given camera rig; productions needing dual inputs, SDI or wireless video reception will not be served by this unit.

Highlights

  • 7-inch 1920×1200 IPS panel gives sharp 500 cd/m² monitoring
  • 170° horizontal and vertical viewing angles keep the image consistent off-axis
  • 4 HDMI input and output pass 4K signals through to other gear
  • Powers from DC 7–24 V or Sony NP-F970 and Canon LP-E6 batteries
  • Weighs 320 g at 182.1 × 124 × 20.5 mm for lightweight rigging

Specifications

BrandLILLIPUT
ModelA7S

Questions about this item

Does the A7S include a battery or do I need to buy one separately?

The monitor runs on Sony NP-F970 series or Canon LP-E6 batteries, neither of which is supplied in the box.

Which input signal versions does the HDMI 1.4 port on the A7S actually support?

The HDMI 1.4 connection accepts 4K video signals for monitoring on the 1920x1200 panel.

What does the 500 cd/m² brightness figure mean when I'm shooting outdoors?

At 500 cd/m² the 7-inch IPS screen stays readable in bright daylight without a hood.
