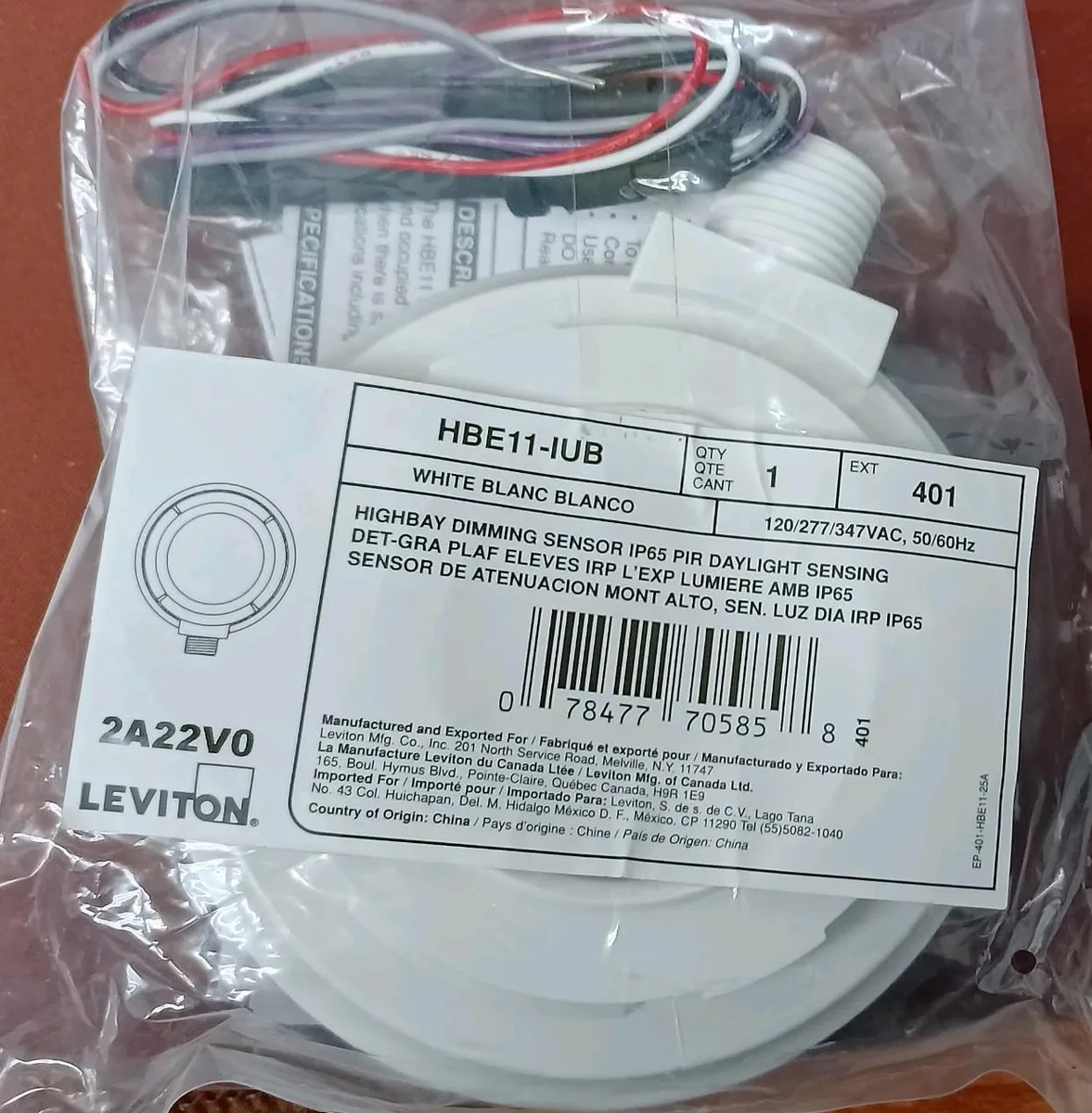

White rectangular fixture-mount sensor with IP65 rating

Leviton

Leviton Highbay Dimming PIR Occupancy Sensor HBE11-IUB 120/277/347VAC IP65 White

SKU CH-MCHZ-XHAQ9

IP65-rated PIR occupancy sensor controls 0-10V dimmable fixtures at 120/277/347VAC with interchangeable 360° or aisle lenses and adjustable timeouts up to 15 minutes

  • IP65 rated for wash-down indoor and outdoor use
  • Controls 0-10V dimmable ballasts for daylight harvesting
  • Interchangeable 360° or aisle detection lenses sold separately
  • Adjustable 1 to 15 minute full OFF timer delay
  • 8-second test mode with 1, 5, 10, 15 minute timeouts

Fixture-mount PIR occupancy sensor

The Leviton HBE11-IUB mounts directly to an industrial fixture or junction box and controls 0-10V dimmable ballasts for daylight harvesting. It operates on 120, 277 or 347 VAC supplies and carries an IP65 rating for wet indoor and outdoor locations. Interchangeable lenses provide 360-degree or aisle detection patterns and are sold separately.

IP65 wash-down rating and adjustable timing

The sealed enclosure withstands low-temperature wash-down use in food-processing or exterior areas. An 8-second test mode with 1, 5, 10 and 15 minute time-outs simplifies commissioning, while the full OFF timer delay is adjustable between 1 and 15 minutes. Dimming presets for the unoccupied state step down to 70, 60, 50 or 20 percent output.

Downward and upward daylight sensing

A selectable downward or upward facing daylight sensor lets the unit harvest ambient light from either direction via dipswitch. The sensor requires a compatible 0-10V dimmable driver and a separately purchased lens to complete the detection zone. UL and cUL listings confirm compliance for North American installations.

Highlights

  • IP65 rated for wash-down indoor and outdoor use
  • Controls 0-10V dimmable ballasts for daylight harvesting
  • Interchangeable 360° or aisle detection lenses sold separately
  • Adjustable 1 to 15 minute full OFF timer delay
  • 8-second test mode with 1, 5, 10, 15 minute timeouts

Specifications

BrandLeviton

Questions about this item

How do I install the HBE11-IUB sensor and what is the step people often get wrong?

Mount the sensor directly to an industrial fixture or electrical junction box; the step people miss is that the lens is sold separately and must be chosen and fitted before the sensor will detect motion.

What maintenance or replacement will the HBE11-IUB need later?

The interchangeable high/low area detection lenses may need replacement if damaged or if the coverage pattern must change; the sensor housing itself is IP65 rated for wash-down environments and has no user-serviceable parts.

What limit shows up first under sustained use of the HBE11-IUB?

The 0-10V dimming output is capped at the preset unoccupied levels of 70%, 60%, 50% or 20% and the full-OFF timer delay maxes out at 15 minutes, so the dimming floor and timeout ceiling are the first constraints you will hit.
