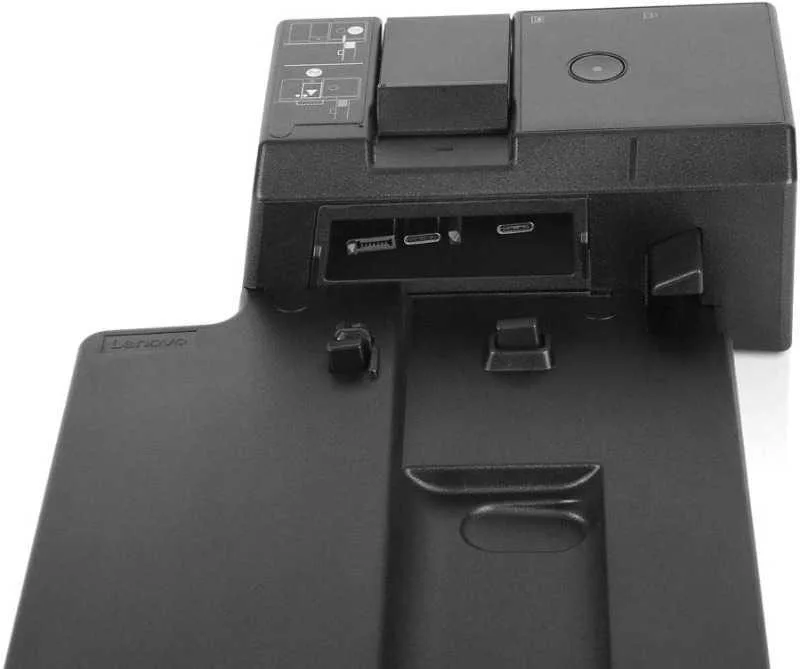

Black rectangular docking station with side connector, multiple ports visible, 135W power adapter included

Lenovo

Lenovo ThinkPad Ultra Dock 40AJ 135W docking station

SKU CH-AGJ2-CRPPV

Connects compatible ThinkPad notebooks via a side connector, supplying 135W power plus four 10Gbps USB 3.1 ports, two USB-C ports, gigabit Ethernet, two DisplayPort 1.4 outputs, HDMI 2.0.

  • ColorBlack
  • Ports Spec4x USB 3. 1 Gen2 (10Gbps) with 1 always-on USB charging, 2x
  • Dimension37.8L x 5.3W x 16H
  • FunctionNotebook
  • Connect three UHD displays via two DisplayPort 1.4 and one HDMI 2.0
  • Transfer data at 10 Gbps through four USB 3.1 Gen2 ports
  • Charge devices anytime with one always-on USB charging port
  • Simplify IT management using PXE boot, Wake-on LAN and MAC pass-through
  • Dock securely with innovative side connector and mirrored power button

Ultra Dock 135W for ThinkPad

The Lenovo ThinkPad Ultra Dock 40AJ is a 135W docking station built for 2018 T, L, X and X1 Series notebooks. Its side connector locks the laptop in place without drivers. IT managers gain PXE boot, Wake-on LAN and MAC address pass-through for fleet deployment. The mirrored power button lets users start the system while the lid stays closed.

Three UHD displays and 10Gbps ports

Two DisplayPort 1.4 outputs, one HDMI 2.0 port and a VGA connector drive up to three UHD monitors simultaneously. Four USB 3.1 Gen2 ports and two USB-C ports each deliver 10Gbps data throughput. One USB-A port stays powered for phone charging when the dock is off. USB-C ports supply 5V 3A for peripheral power.

Side-connector constraint and display ceiling

The proprietary side connector only fits the listed 2018 ThinkPad models; other laptops cannot attach. Video bandwidth caps at three UHD streams, so a fourth display is not supported. Gigabit Ethernet tops out at 1000Mbps. The 135W adapter limits total system and peripheral draw to that ceiling.

Highlights

  • Connect three UHD displays via two DisplayPort 1.4 and one HDMI 2.0
  • Transfer data at 10 Gbps through four USB 3.1 Gen2 ports
  • Charge devices anytime with one always-on USB charging port
  • Simplify IT management using PXE boot, Wake-on LAN and MAC pass-through
  • Dock securely with innovative side connector and mirrored power button

Specifications

BrandLenovo
ModelThinkPad
ColorBlack
Ports Spec4x USB 3. 1 Gen2 (10Gbps) with 1 always-on USB charging, 2x USB-C ports (10Gbps, 5V 3a power), 10/1000 Gigabit Ethernet, 2x DisplayPort 1. 4, 1x HDMI 2. 0, 1x VGA, 1x Stereo/mic combo Audio port, 1x DC-in
Dimension37.8L x 5.3W x 16H
FunctionNotebook

Questions about this item

Will the 40AJ Ultra Dock connect to my 2018 ThinkPad T480 using the side connector?

Yes, the 40AJ Ultra Dock uses the innovative side connector designed for 2018 T, L, X and X1 Series ThinkPads including the T480 for a driver-free connection.

How can I confirm the dock is delivering 135W power and 10Gbps data after setup?

The mirrored power button on the dock mirrors your notebook's power state, and connected USB 3.1 Gen2 devices will operate at 10Gbps transfer rates when the dock is powered by the included 135W AC adapter.

Does the box include the 135W AC adapter and video cables for the two DisplayPort 1.4 and one HDMI 2.0 ports?

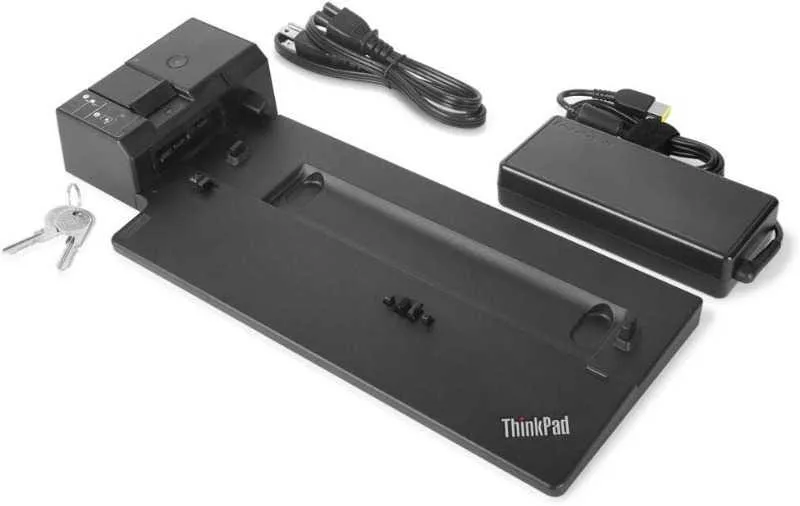

The retail packaging includes the Ultra Dock, 135W Slim tip AC adapter with 2-pin power cord, two locking keys and a setup poster; video cables for DisplayPort and HDMI are not included.
